Speaker (rear)
Description Spare part number
Speaker Kit 812705-001
Before removing the rear speaker, follow these steps:
1. Turn o the computer. If you are unsure whether the computer is o or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect the power from the computer by unplugging the power cord from the computer.
3. Disconnect all external devices from the computer.
4. Remove the bottom cover (see Bottom cover on page 35).
5. Remove the battery (see Battery on page 54).
6. Remove the hard drive (see Hard drive on page 55).
7. Remove the system board (see System board on page 66).
Remove the rear speaker:

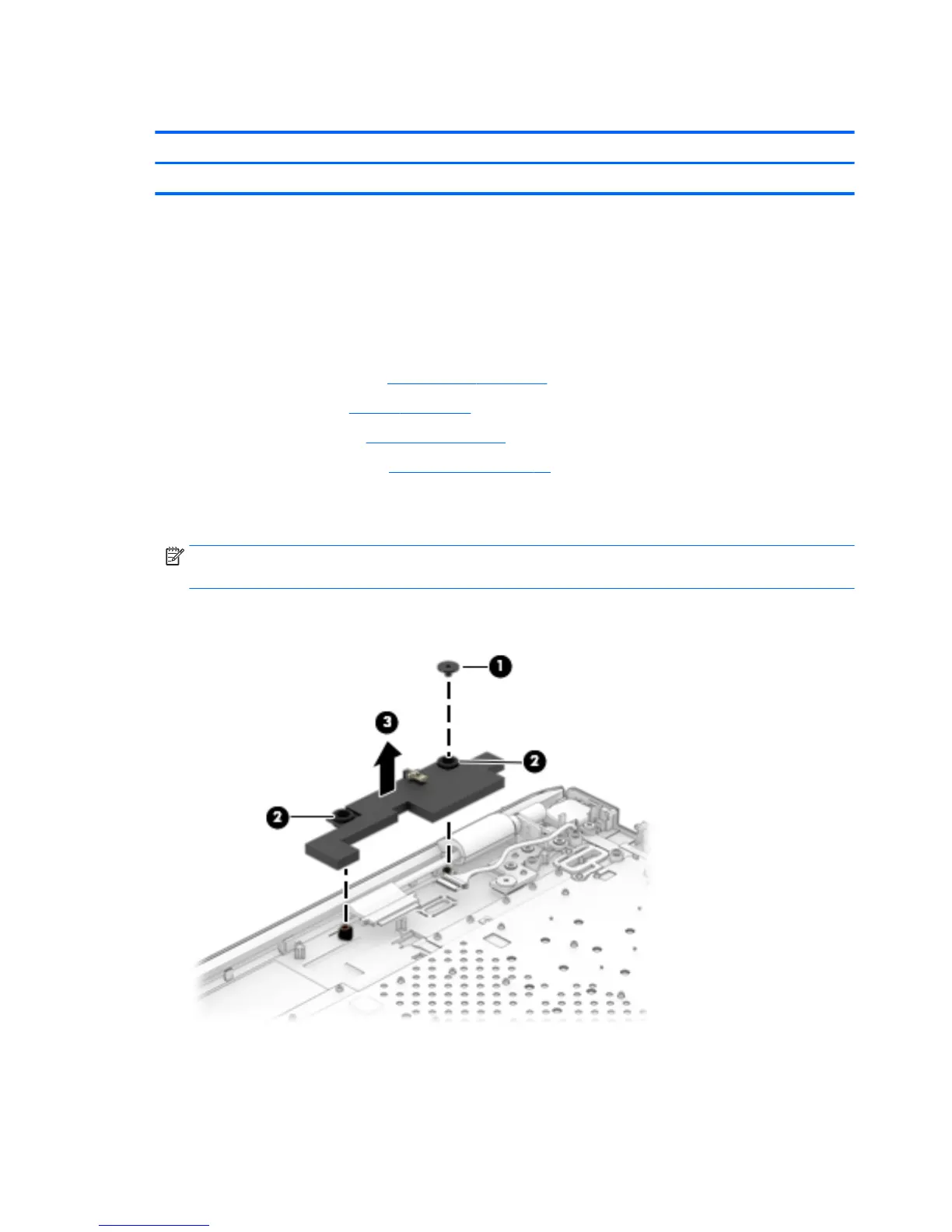

1. Remove the broadhead Phillips PM2.0×2.0 screw (1) that secures the speaker to the computer.
NOTE: The speaker includes rubber isolators (2) around the screws. These isolators are crucial to the
performance of the speaker.
2. Remove the rear speaker (3).
Reverse this procedure to install the rear speaker.
70 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts
