Card reader board
Description Spare part number
Card reader board 812694-001
Card reader board cable 812680-001
Before removing the card reader board, follow these steps:
1. Turn o the computer. If you are unsure whether the computer is o or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect the power from the computer by unplugging the power cord from the computer.
3. Disconnect all external devices from the computer.
4. Remove the bottom cover (see Bottom cover on page 35).
5. Remove the battery (see Battery on page 54).
6. Remove the hard drive (see Hard drive on page 55).
7. Remove the speakers (see Speakers (front) on page 57).
Remove the card reader board:

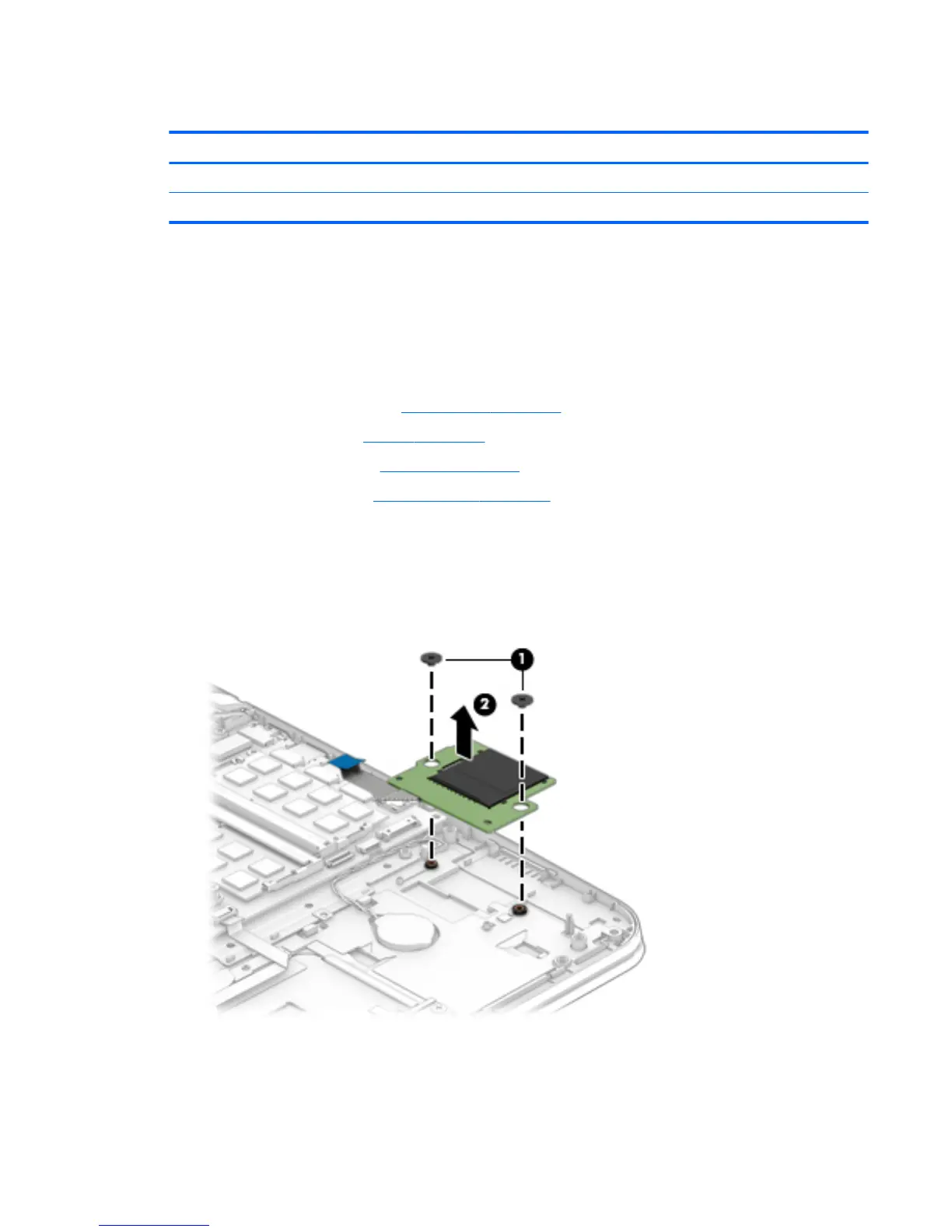

1. Remove the two broadhead Phillips PM2.0×3.0 screws (1) that secure the card reader board to the
computer.
2. Remove the card reader board (2).
Reverse this procedure to install the card reader board.
Component replacement procedures 63
