HP J4367A - UPS R3000 XR - UPS Front Panel LED Indicators; HP UPS R3000 Models

Component identification 8
UPS front panel LED indicators

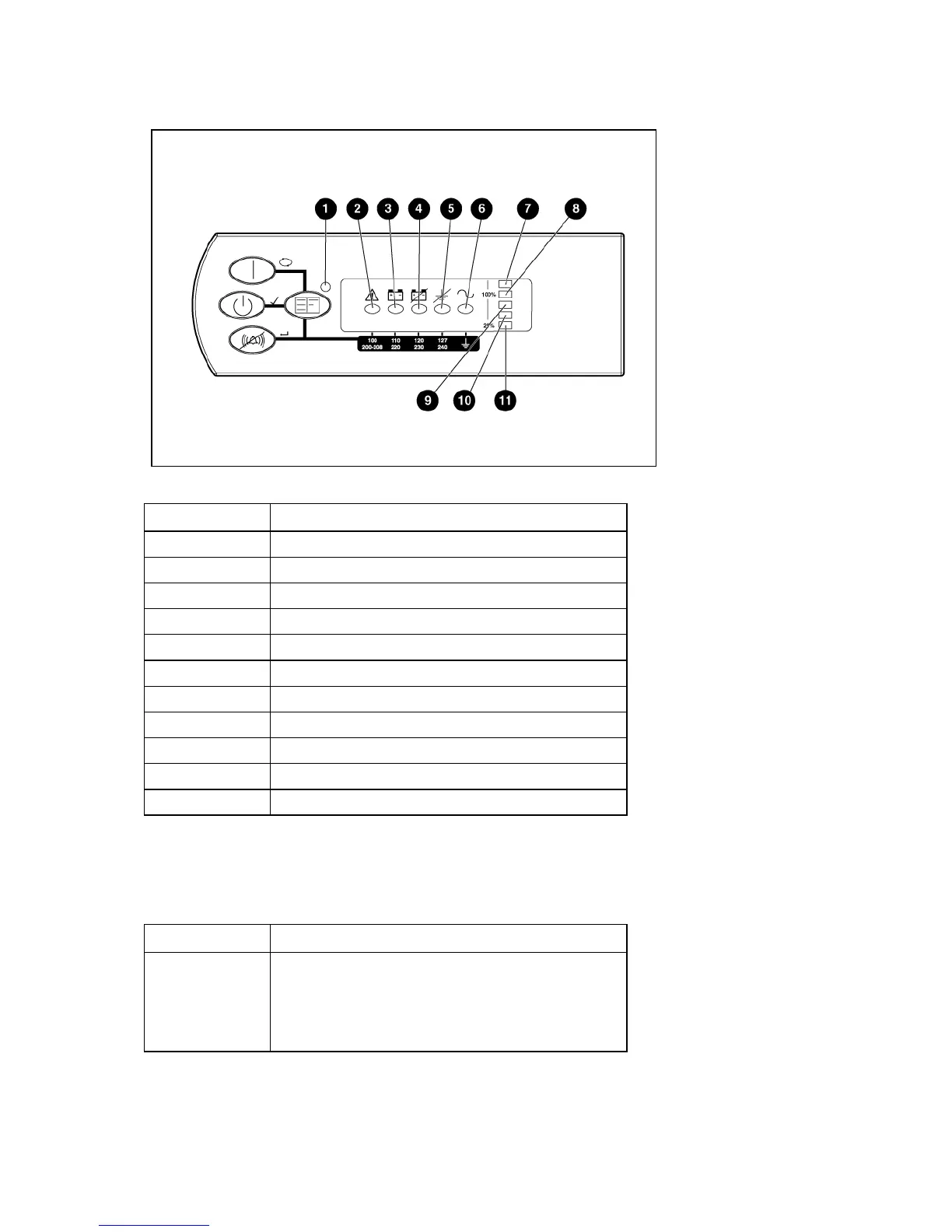

The front panel is shown with the bezel removed.
Item LED description
1 Configure Mode On
2 General Alarm
3 On Battery
4 Battery Fault
5 Site Wiring Fault
6 Utility
7 Overload
8 76% to 100% load
9 51% to 75% load
10 26% to 50% load
11 0% to 25% load
For more information, see "LED and audible alarm troubleshooting (on page 41)" .
HP UPS R3000 models
UPS model Description
R3000 NA ("UPS
R3000 NA and
R3000j JPN rear
panel" on page
9)
•
Domestic
•
Low-voltage
•
Nondetachable NEMA L5-30 plug
