2-16 Installing the Print Server
ENWW
Step 4. Turn Off Your Printer and
Insert the Card

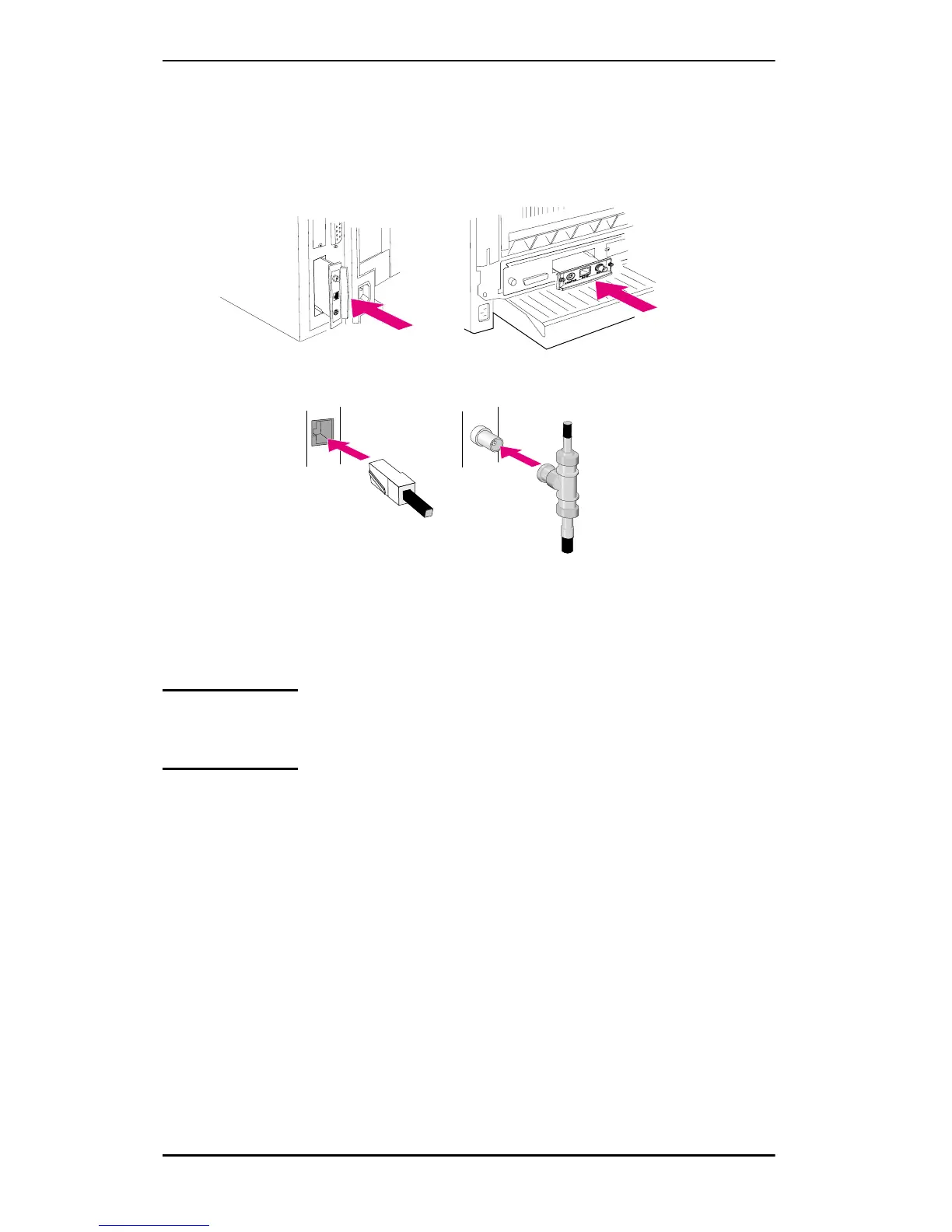

Figure 2-1 Typical Card Installation and Network Connection
1.
Turn off the printer.
2.
Identify an available HP Enhanced I/O (EIO) slot (typically, in
the back of the printer).
Note
You can install the card into any EIO slot in the
HP printer.
3.
If the slot has a cover plate, remove it.
4.
Insert the card. Align the card with the guide rails in the slot.
5.
Press the card into the slot until firmly seated and tighten each
retaining screw a little at a time until both screws are secure.
6.
Connect the network cable to the card.
RJ-45
BNC
