Component Identification

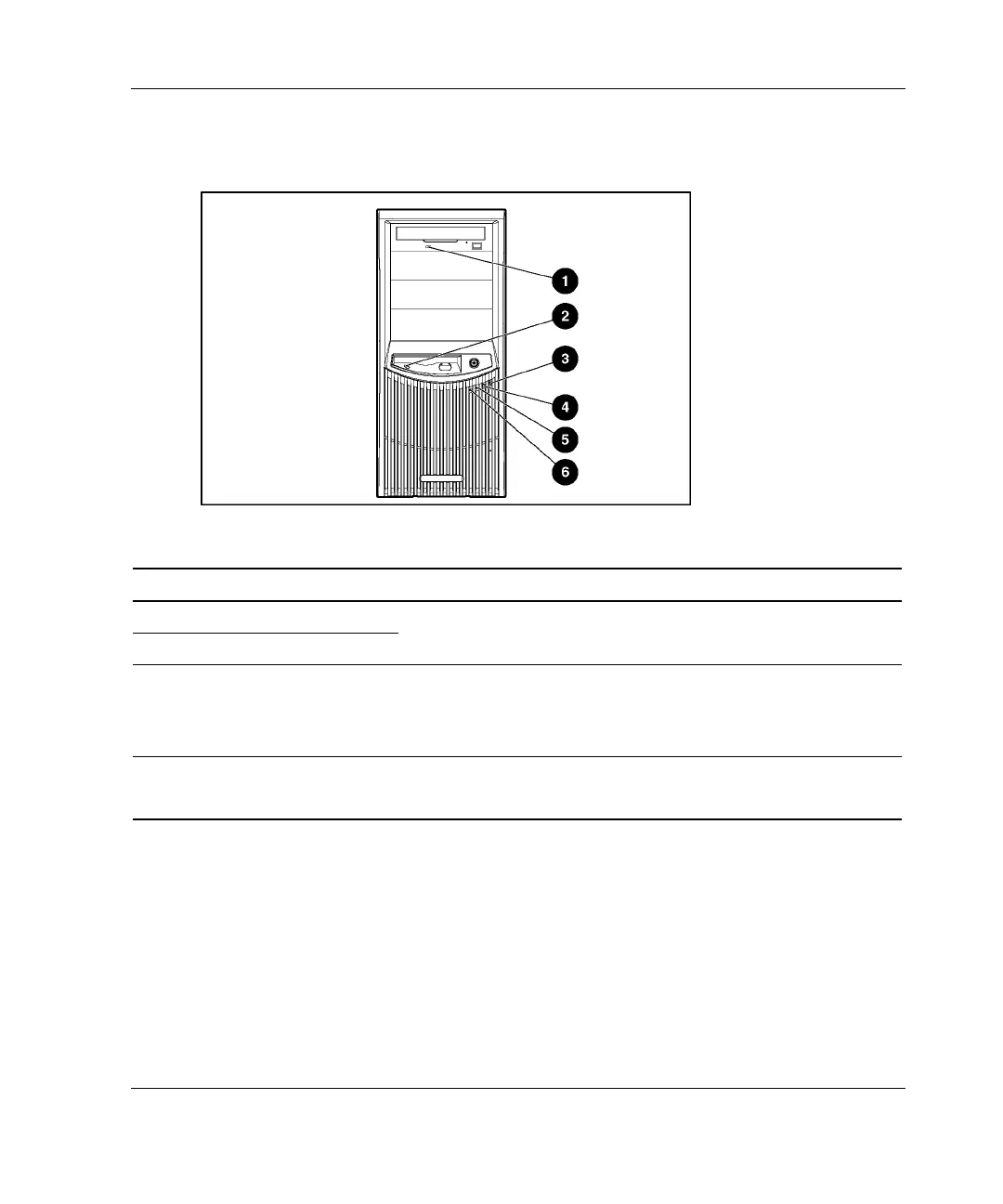

Front Panel LEDs
Table 1-2: Front Panel LEDs
Item LED Description Status
1 CD-ROM drive activity
2 Diskette drive activity
On = Drive activity exists.
Off = No drive activity exists.
3 System power Green = Server is on.
Amber = Server is in standby mode.
Off = Server is off; power cord is disconnected.
4 Hard drive activity Green or flashing green = Hard drive activity exists.
Off = No hard drive activity exists.
continued
HP ProLiant ML330 Generation 3 Server Setup and Installation Guide 1-3
