Hardware Options Installation

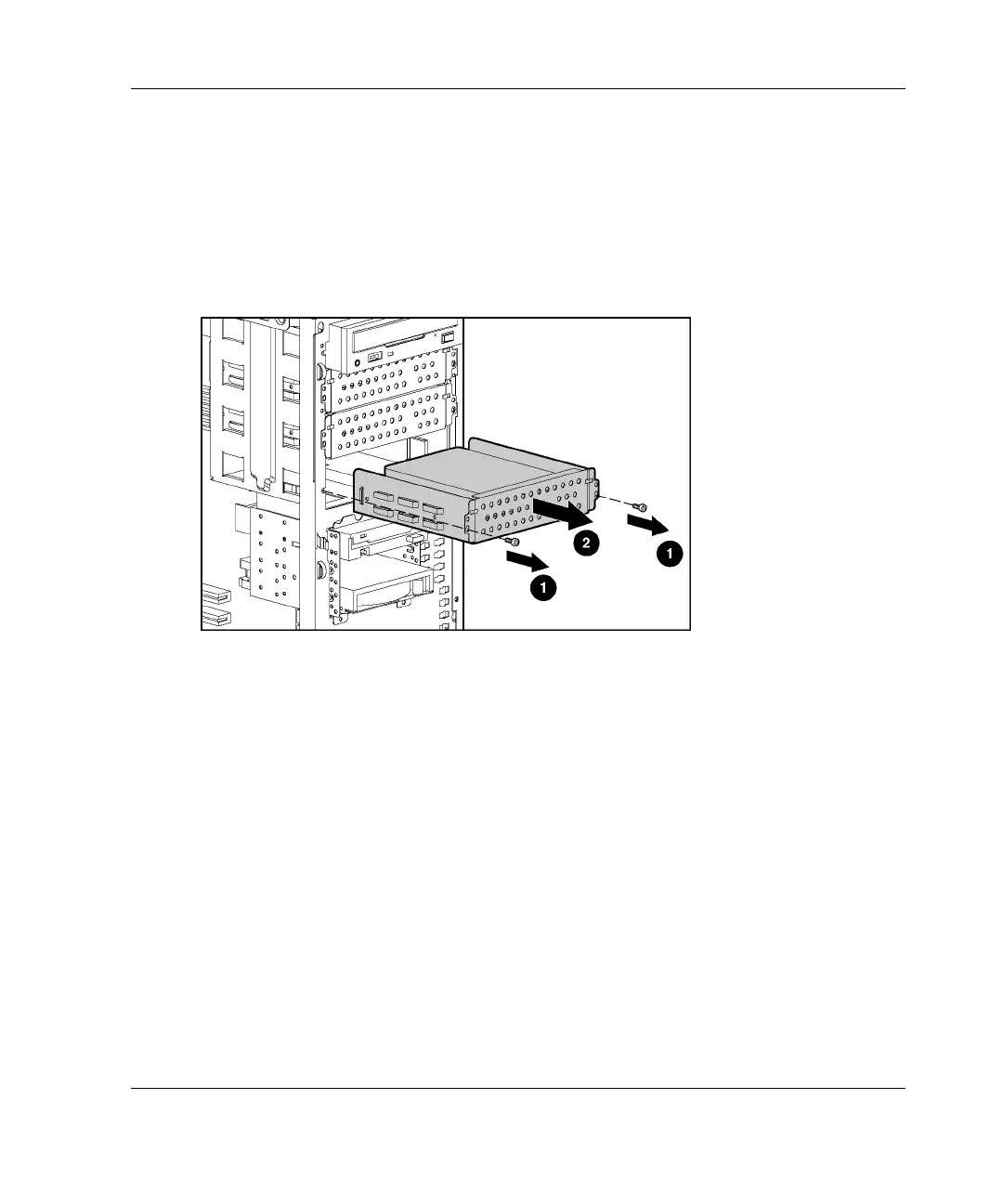

To remove a media bay drive tray:
1. Complete the “Preparation Procedures” in this chapter.
2. Remove the drive tray:
a. Remove the screws that secure the drive tray on each side.
b. Gently slide the drive tray out of the chassis.
To install a drive tray, reverse the removal procedure.
HP ProLiant ML330 Generation 3 Server Setup and Installation Guide 4-9
