Hardware Options Installation

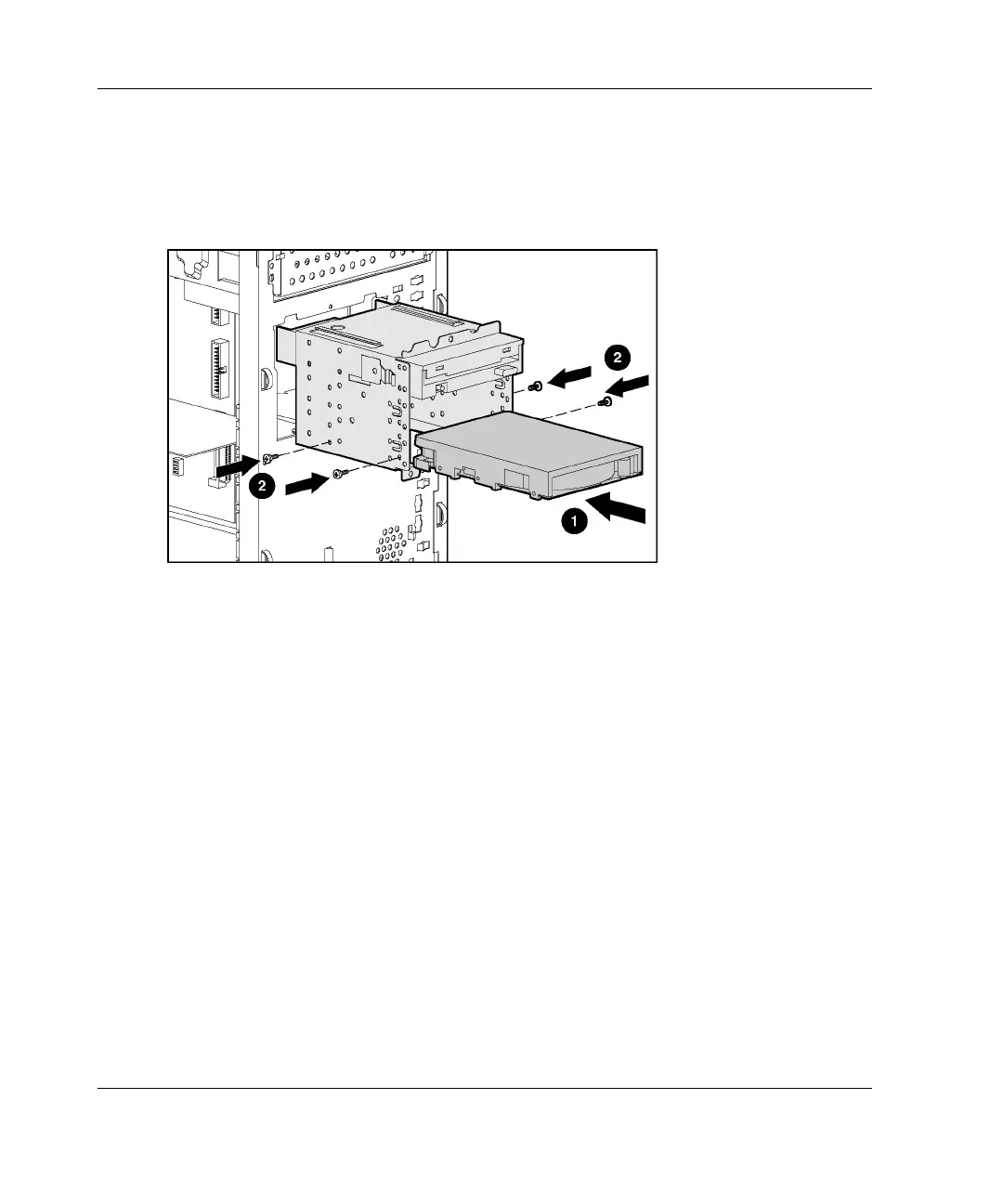

7. Install the hard drive:
a. Slide the drive into the drive bay.
b. Secure the drive with two screws on each side of the drive compartment.
8. Slide the drive compartment back into the chassis, and then install the three
shipping screws removed in step 3.
9. Connect the data and power cables to the back of all devices. For specific cabling
information, refer to “Cabling a Hard Drive” in this chapter.
10. Install the access panel and the front bezel. Refer to Chapter 2, “Server
Operations.”
4-12 HP ProLiant ML330 Generation 3 Server Setup and Installation Guide
HP CONFIDENTIAL
Writer: Rob Weaver File Name: e-ch4 Hardware Options Installation.doc
Codename: Flashback Part Number: 322383-001 Last Saved On: 2/11/03 1:24 PM

HP ML330 - ProLiant - G3 Specifications

General

Product Line	ProLiant
Model	ML330 G3
Form Factor	Tower
Processor	Intel Xeon
Processor Cores	1
Memory Type	PC2100 DDR SDRAM
Hard Drive Interface	Ultra320 SCSI
RAID Levels	0, 1
Network	Integrated Gigabit Ethernet
Expansion Slots	6
Operating System Support	Windows, Linux
Drive Bays	6
