24 User’s Guide
Setting Up
Composite video connection
Many VCRs and other video equipment have composite video output, a single RCA
video output connector.

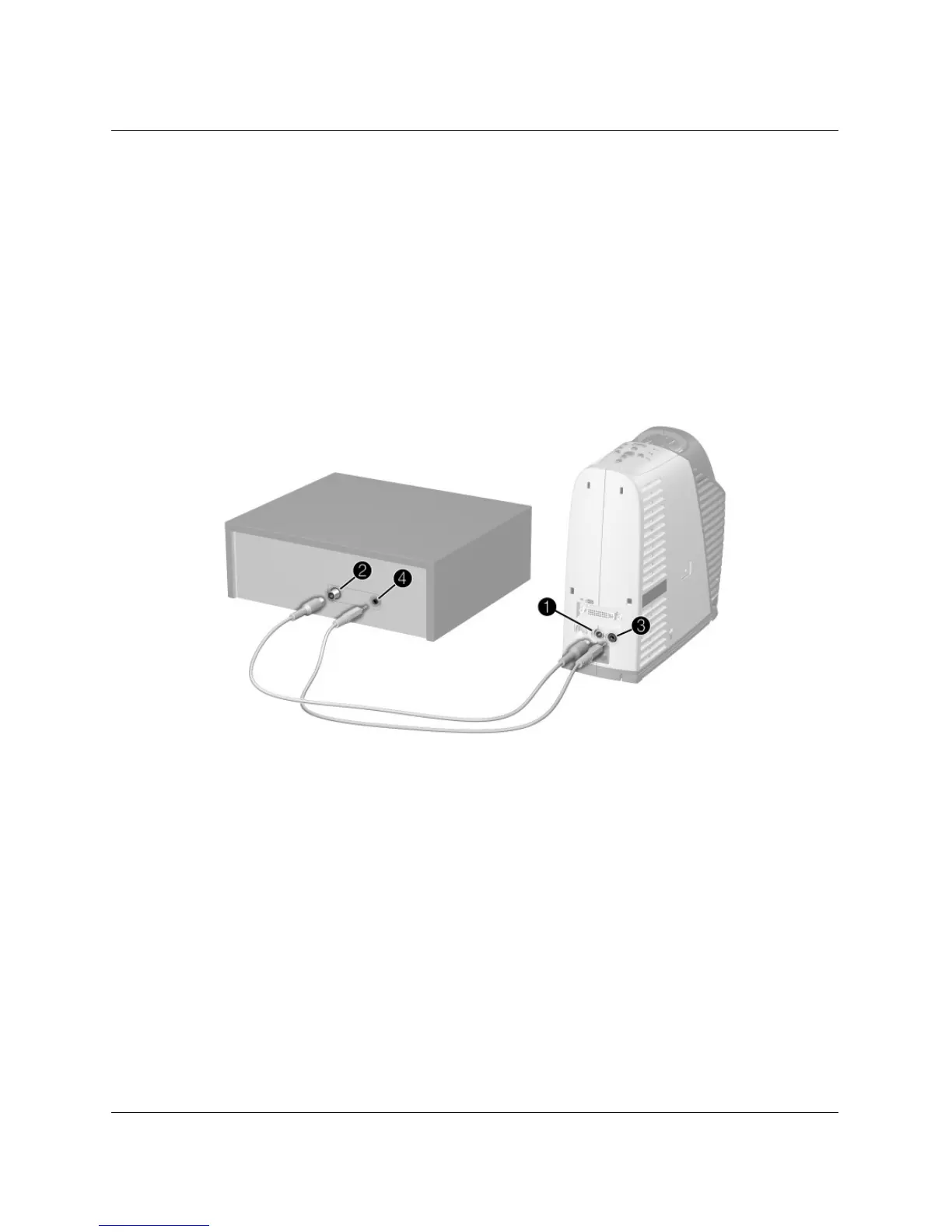

1. Connect the composite video cable (RCA connector) between the composite
video port on the projector
1 and RCA video port on the video device 2.
2. (Optional) To get audio, connect the mini-phone audio cable between the audio
port on the projector 3 and the video device 4. If the video device has RCA
audio connectors, use a mini-phone to RCA adapter or cable.
