12

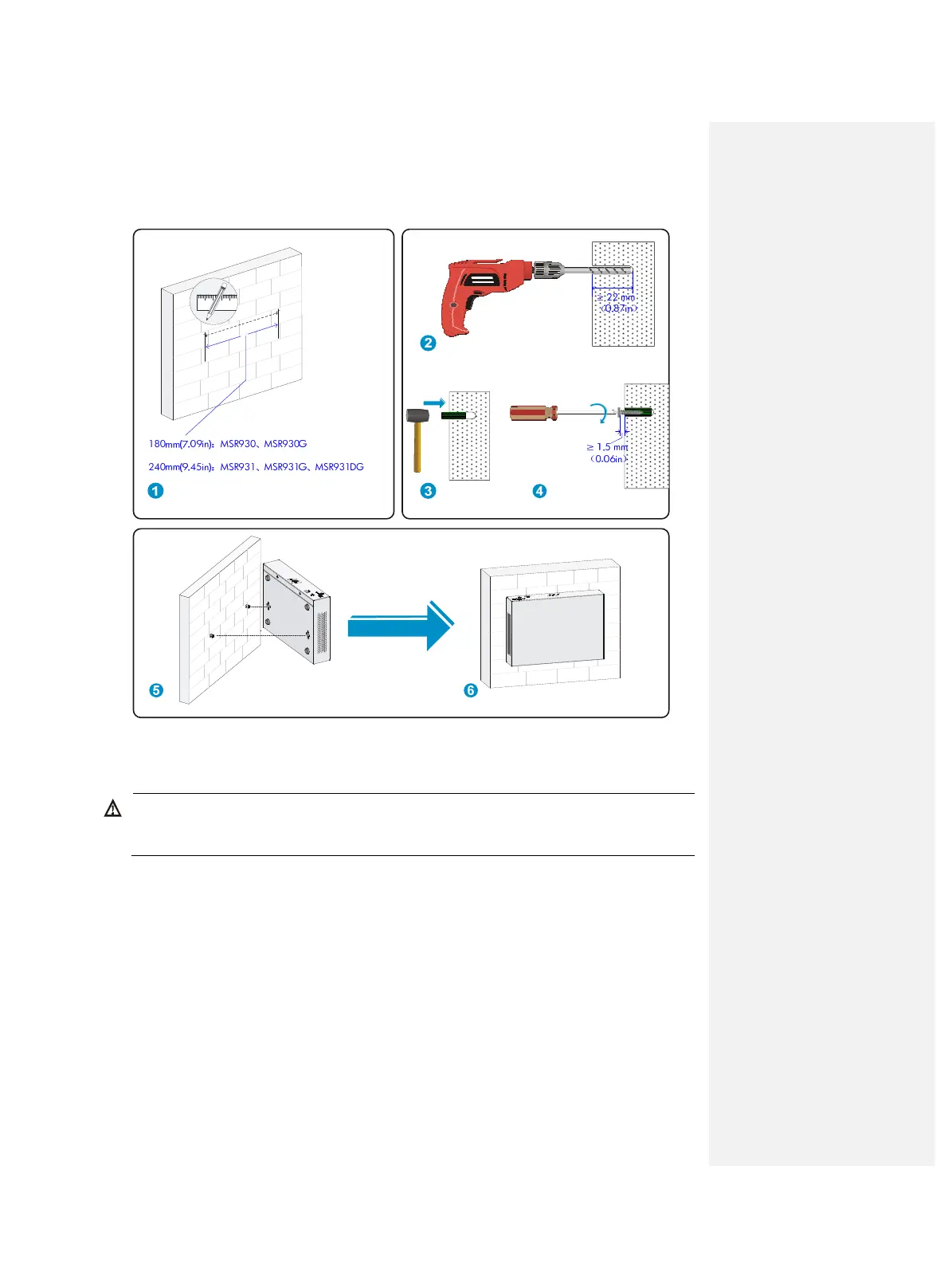

Figure 3 Wall-mounting the router
Grounding the router
ARNING!
Connecting the router grounding cable correctly is crucial for protecting the router from lightning and
EMI.
The grounding resistance should be less than 5 ohms.
You can ground the router with a grounding strip or to a buried grounding conductor.
Grounding the router with a grounding strip
1. Remove the grounding screw from the router chassis.
2. Put the ring terminal of the grounding cable on the grounding screw.
3. Use a screwdriver to fasten the grounding screw.
4. Attach the other end of the grounding cable to the grounding strip.
