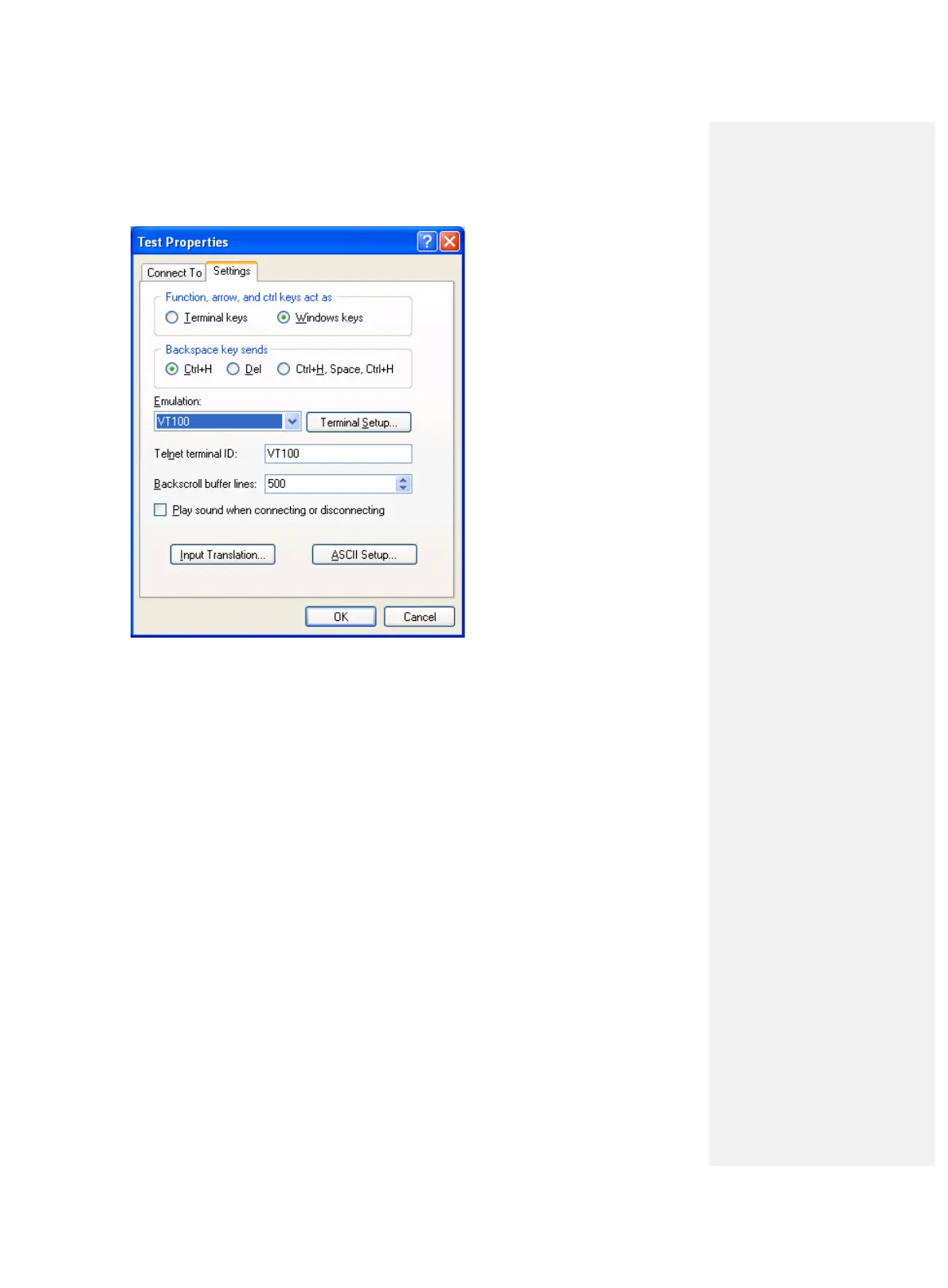

Figure 21 Setting the terminal emulation parameters
Connecting the power adapter
The router's power adapter converts AC power to DC power, as follows:
•
AC rated voltage range: 100 VAC to 240 VAC @ 50 Hz to 60 Hz
•
DC Rated voltage: 12 VDC
To connect the power adapter, as shown in Figure 22:
1. Make sure the router is properly grounded. For more information, see "Grounding the router."
2. Using the adapter's AC power cord, connect the power adapter to an AC power source.
3. Connect the DC power cord connector on the power adapter to the DC power receptacle on
the router's panel.
