18
2.
Plug the D28 end of the serial port cable into the D28 port of the SAE interface module.
If the WAN uses DDN line, connect the cable to the port of the CSU/DSU.
3. Examine the LINK LED status. For more information, see "LED description."

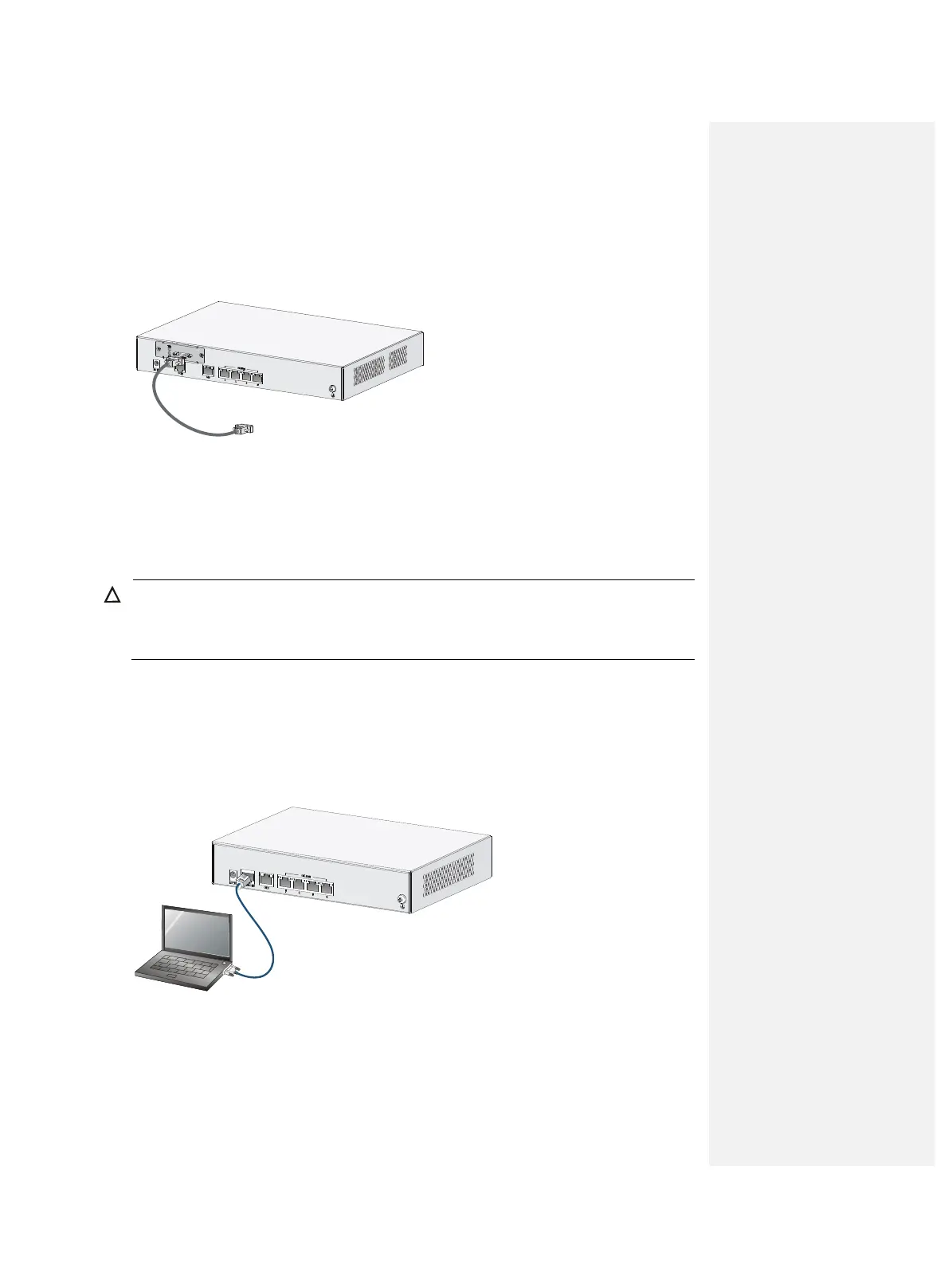

Figure 15 Connecting a serial port cable
Connecting the console cable and setting terminal
parameters
Connecting the console cable
CAUTION:
hen using a console cable to connect a PC to the router, first connect the DB-9 end of the console
cable to the PC serial port, and then connect the RJ-45 connector of the console cable to the router
console port.
To connect the console cable, as shown in Figure 16:
1. Select a console terminal, which can be an ASCII terminal with an RS232 serial port or a PC.
(A PC is more commonly used.)
2. Connect the DB-9 connector (female) of the console cable to the RS-232 serial port of the
console terminal and the RJ-45 connector to the console port of the router.
Figure 16 Connecting the console cable
Setting console terminal parameters
To set console terminal parameters:
