HP MSR930 Series User Manual

19
1.
Select Start > All Programs > Accessories > Communications > HyperTerminal.
The Connection Description dialog box appears.
2. Enter the name of the new connection in the Name field and click OK.

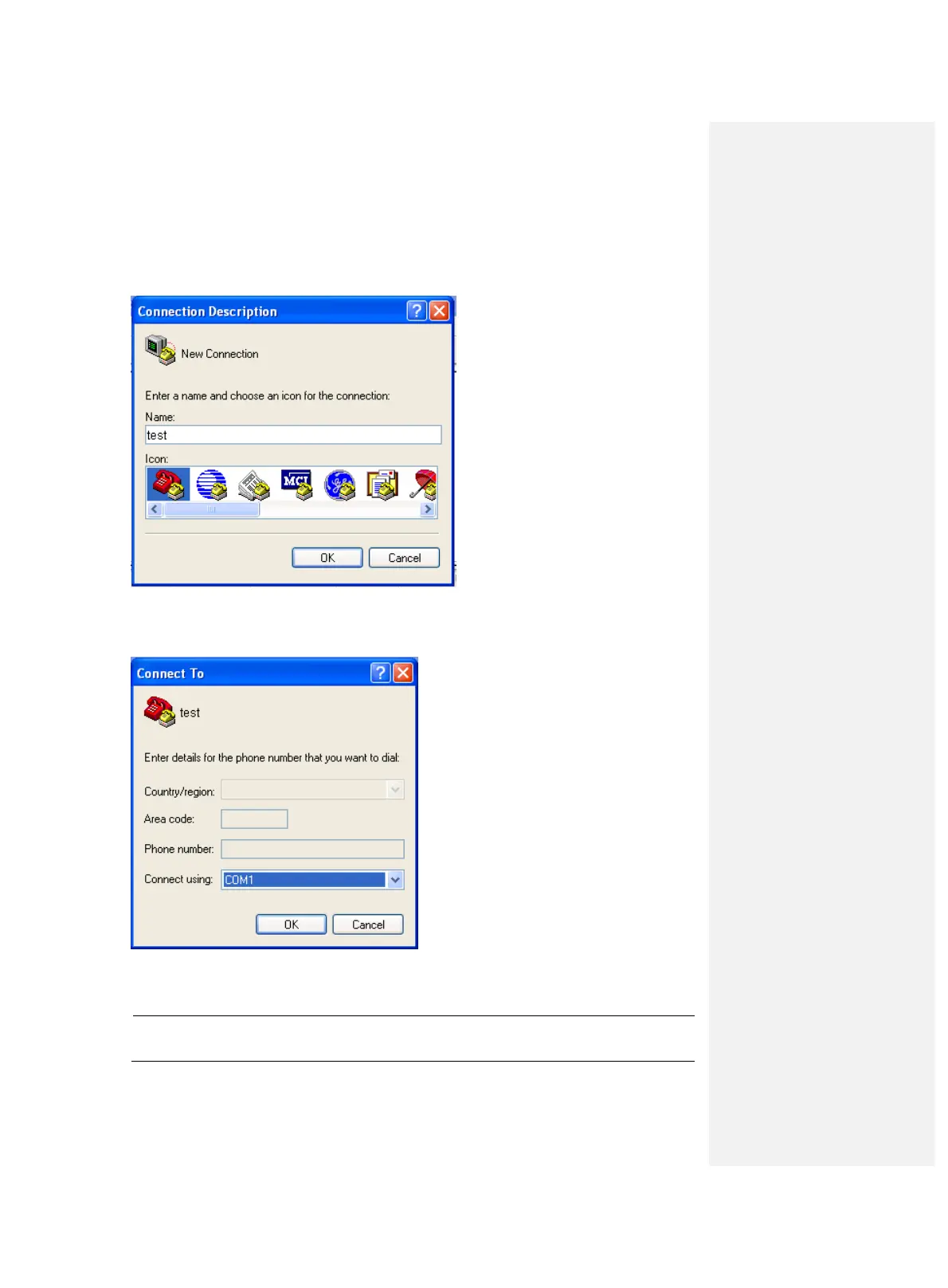

Figure 17 Connection description
3. Select the serial port to be used from the Connect using list, and click OK.
Figure 18 Setting the serial port used by the HyperTerminal connection
4. Set Bits per second to 9600, Data bits to 8, Parity to None, Stop bits to 1, and Flow control to
None, and click OK.
NOTE:
To restore the default settings, click Restore Defaults.
