28
Appendix A Chassis views and technical
specifications
The M
SR9
3X route
rs include the follo
wing mode
ls: MSR9
30, MSR9
30G
, MSR9
3
1
,
MSR9
3
1G, and
MSR
93
1D
G.
Chassis views
The f
igur
es in this appendi
x
are f
or illustr
ation only
.

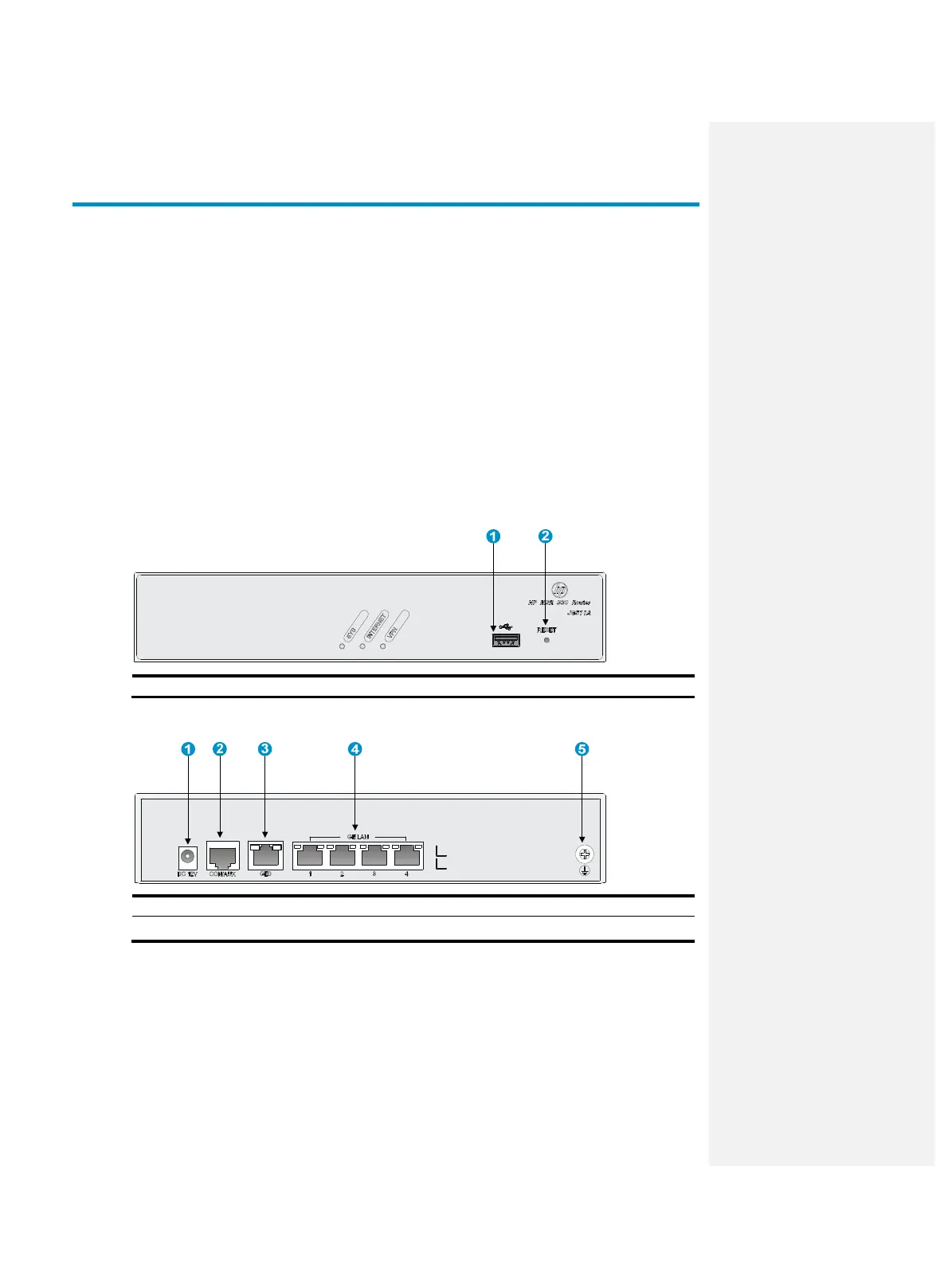

MSR930
Figu
re
23
MSR930 front view
(1) USB port
(2) Reset button
Figu
re
24
MSR930 rear view
(1) Power adapter port
(2) Console
/
A
UX
port
(3) Ethernet WAN port (GE0)
(4) Ethernet LAN ports (GE1 to GE4)
(5) Grounding screw
26
28
Table of Contents
Table of Contents
2
Preparing for Installation
4
Safety Recommendations
4
Site Requirements
4
ESD Prevention
5
Emi
5
Lightning Protection
5
Installation Tools
6
Pre-Installation Checklist
6
Installing the Router
8
Installation Prerequisites
8
Installation Flowchart
8
Installing the Router
9
Mounting the Router on a Workbench
9
Installing the Router on a Wall
10
Grounding the Router
11
Installing a SIM Card
12
Installing a 3G Antenna
14
Installing a 3G Antenna Extension Cable
15
Connecting Interface Cables
16
Connecting the Console Cable and Setting Terminal Parameters
17
Setting Console Terminal Parameters
17
Connecting the Power Adapter
20
Erifying the Installation
21
Powering on the Router
21
Startup Process
21
Power-On Check
22
Configuring Basic Settings for the Router
23
Troubleshooting
24
Power Supply Failure
24
System Configuration Problems
24
No Terminal Display
24
Garbled Terminal Display
24
No Response from the Serial Port
25
Password Loss
25
User Password Loss
25
Super Password Loss
25
SIM Card and 3G Antenna Failures
26
Appendix A Chassis Views and Technical Specifications
27
Chassis Views
27
Msr930
27
Msr930G
28
Msr931
28
Msr931G
29
Msr931Dg
30
Technical Specifications
30
Antenna Specifications
31
Appendix B Leds
32
Leds
32
Msr930
32
Msr930G
32
Msr931
33
Msr931G
34
Msr931Dg
34
LED Description
35
