MSR931G

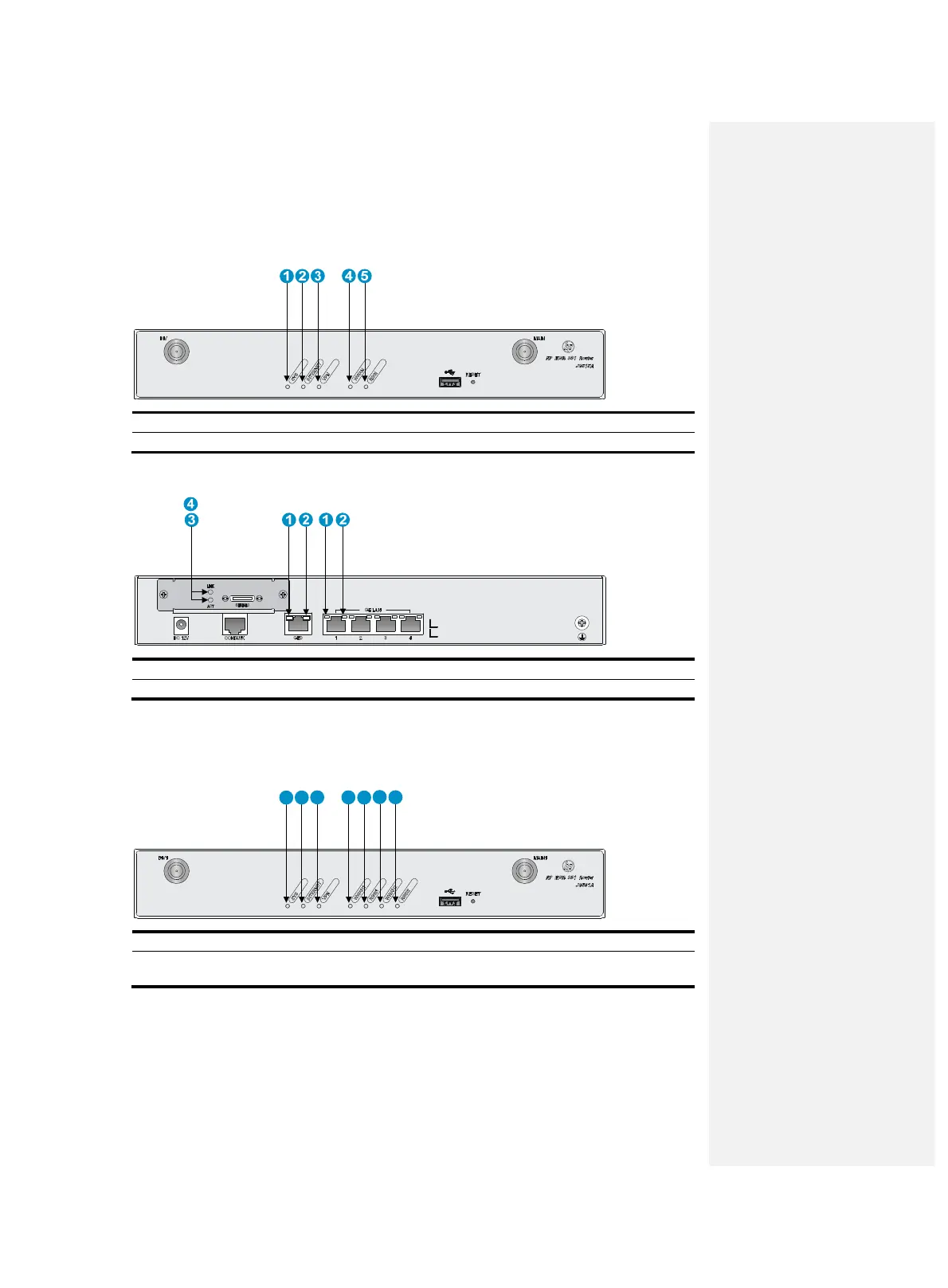

Figure 39 Front panel LEDs
(1) System status LED (SYS) (2) Network status LED (INTERNET) (3) VPN status LED (VPN)
(3) 3G status LED (WWAN) (4) Received 3G signal strength indication LED (RSSI)
Figure 40 Rear panel LEDs
(1) GE port status LED (yellow) (2) GE port status LED (green)
(3) Serial port data receiving status LED (ACT) (4) Serial port link status LED (LINK)
MSR931DG
Figure 41 Front panel LEDs
2
1
3 4
5
4
5
(1) System status LED (SYS) (2) Network status LED (INTERNET) (3) VPN status LED (VPN)
(4) 3G status LED (WWAN) (5) Received 3G signal strength
indication LED (RSSI)
