17
3.
Attach the antenna to the male connector of the cable.
4. Attach the female connector of the cable to the router.

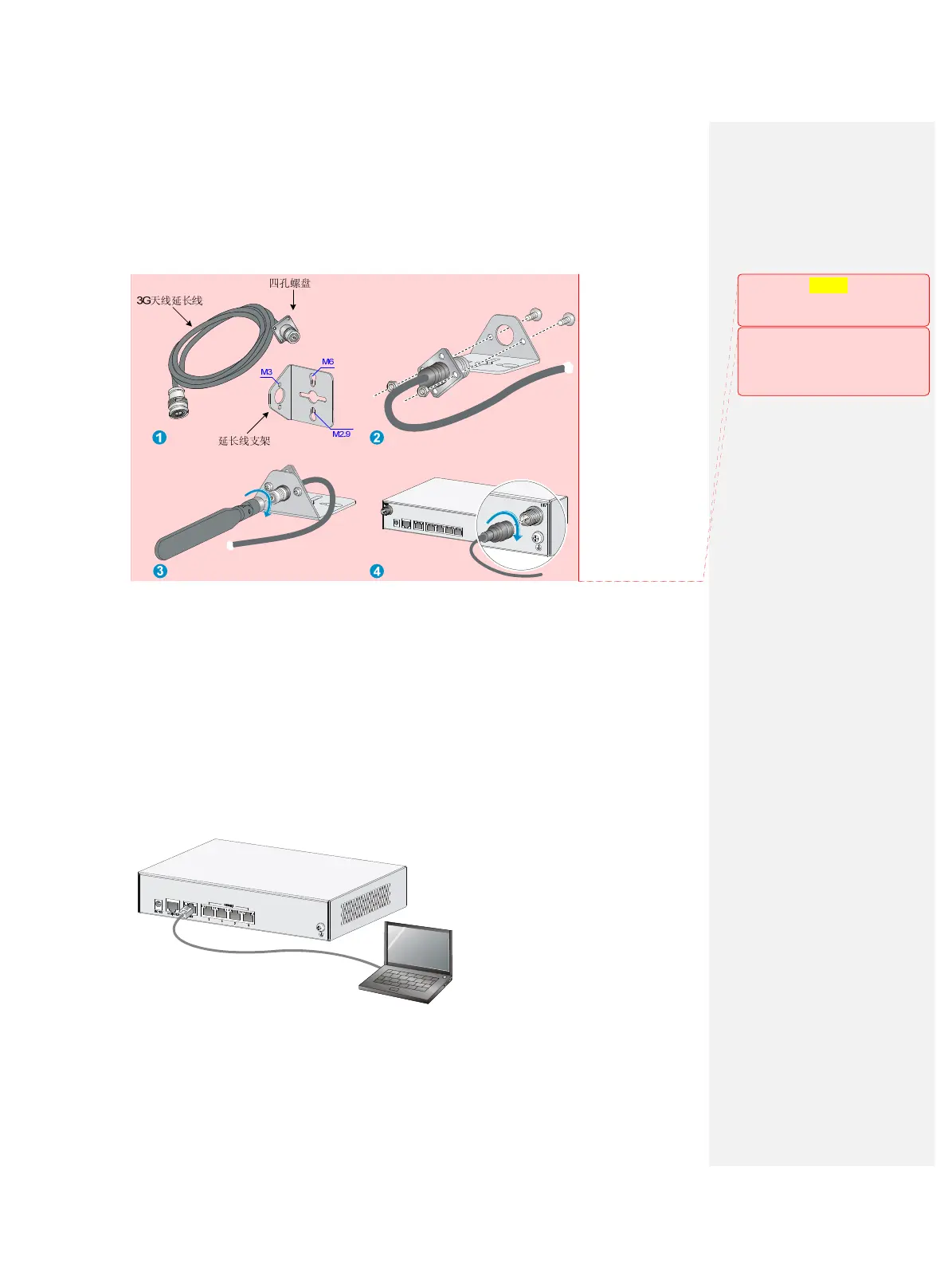

Figure 13 Installing the 3G antenna extension cable
Connecting interface cables
Connecting an Ethernet cable
Because fixed Ethernet ports support MDI/MDIX autosensing, you can use either a straight-through
cable or a crossover cable for connection.
To connect an Ethernet cable:
1. Connect one end of the cable to an Ethernet port on the router.
2. Connect the other end of the cable to the peer device.
3. Examine the port LED status. For more information, see "LED description."
Figure 14 Connecting the router to a computer
Connecting a synchronous/asynchronous serial port cable
1. Verify the port type of the peer device and choose a serial port cable of correct type.
批注 [zn5]: To 中文：
英文图中请把“四孔螺盘”去掉。
批注 [zn6]: 3G 天线延长线：3G
antenna extension cable。延长线支
架：Antenna extension cable
bracket
