5–22 Maintenance and Service Guide
Removal and Replacement Procedures
3. Remove the Phillips PM2.5×5.0 screw 1 that secures the
MultiBay II device to the computer.
4. Push in on the right side of the MultiBay II device 2.
(The MultiBay II device partially protrudes from the
MultiBay II.)
5. Slide the MultiBay II device 3 out of the computer.

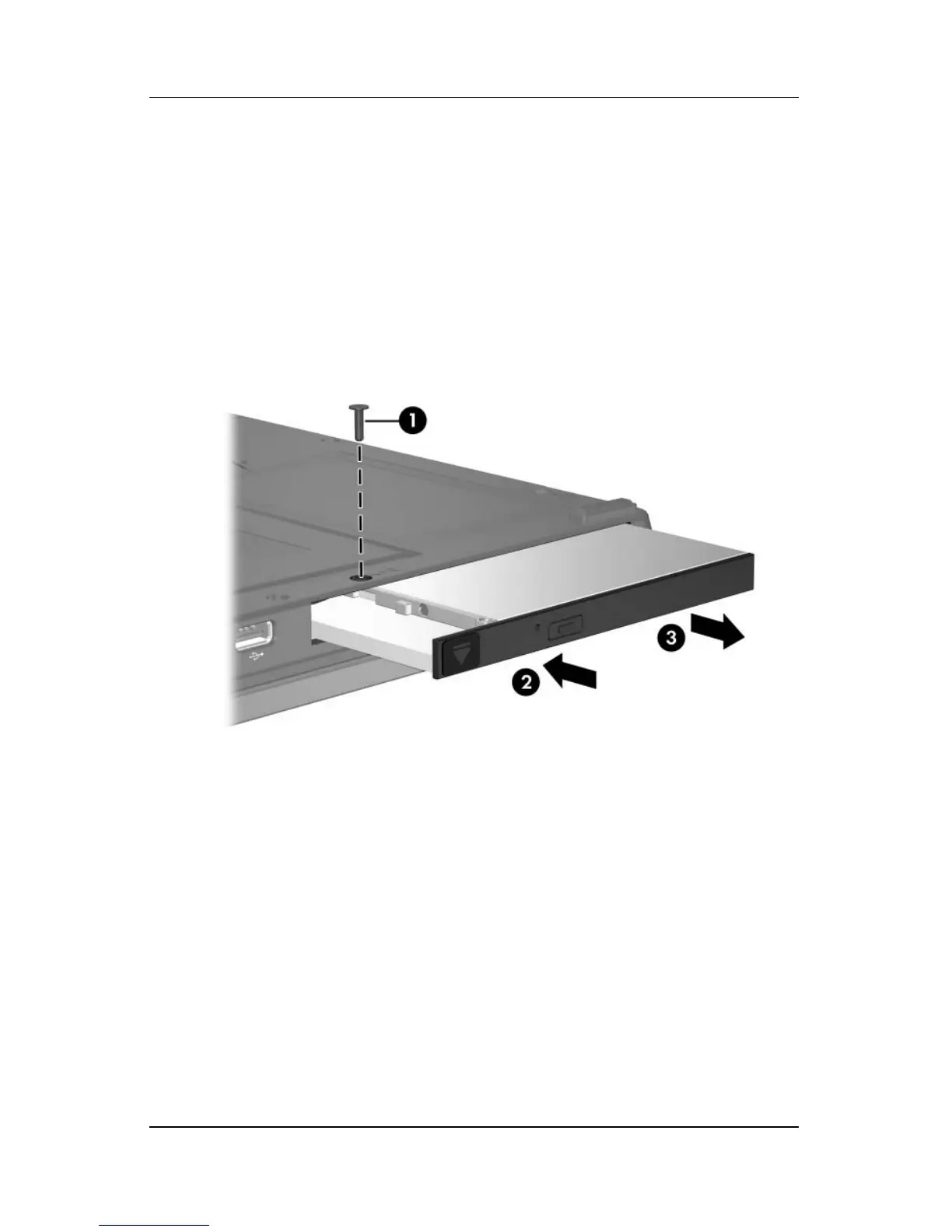

Removing the MultiBay II Device
Reverse the above procedure to install an MultiBay II device.
