1–22 Maintenance and Service Guide
Product Description

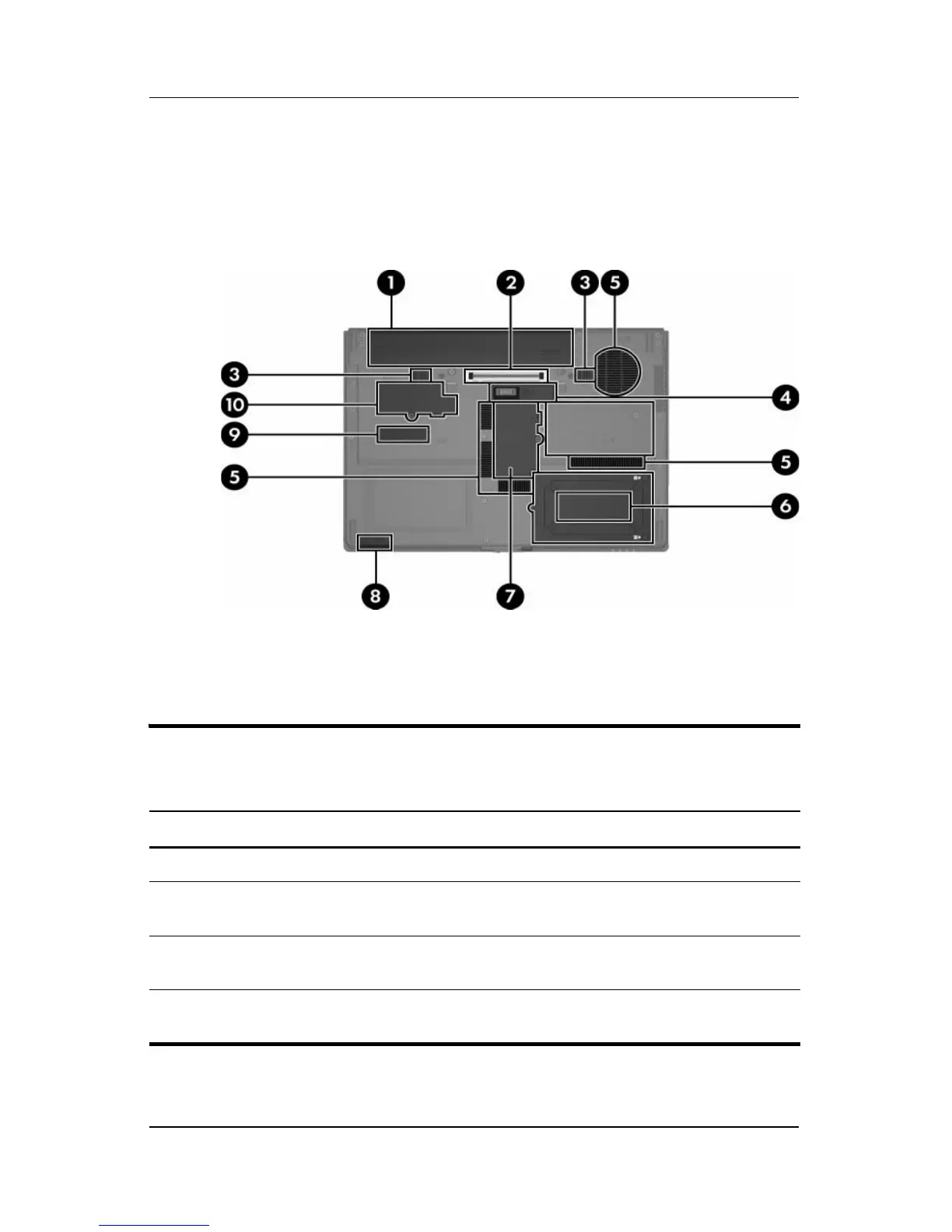

The external components on the bottom of the computer are
shown below and described in Table 1-9.
Bottom Components
Table 1-9
Bottom Components
Item Component Function
1 Battery bay Holds the battery.
2 Docking connector
(full-featured models only)
Connects the computer to an optional
docking device.
3 Battery release latches (2) Release the battery from the battery
bay.
4 Accessory battery
connector
Connects an optional HP Ultra-Capacity
Battery or HP Extended Life Battery.
