5–60 Maintenance and Service Guide
Removal and Replacement Procedures

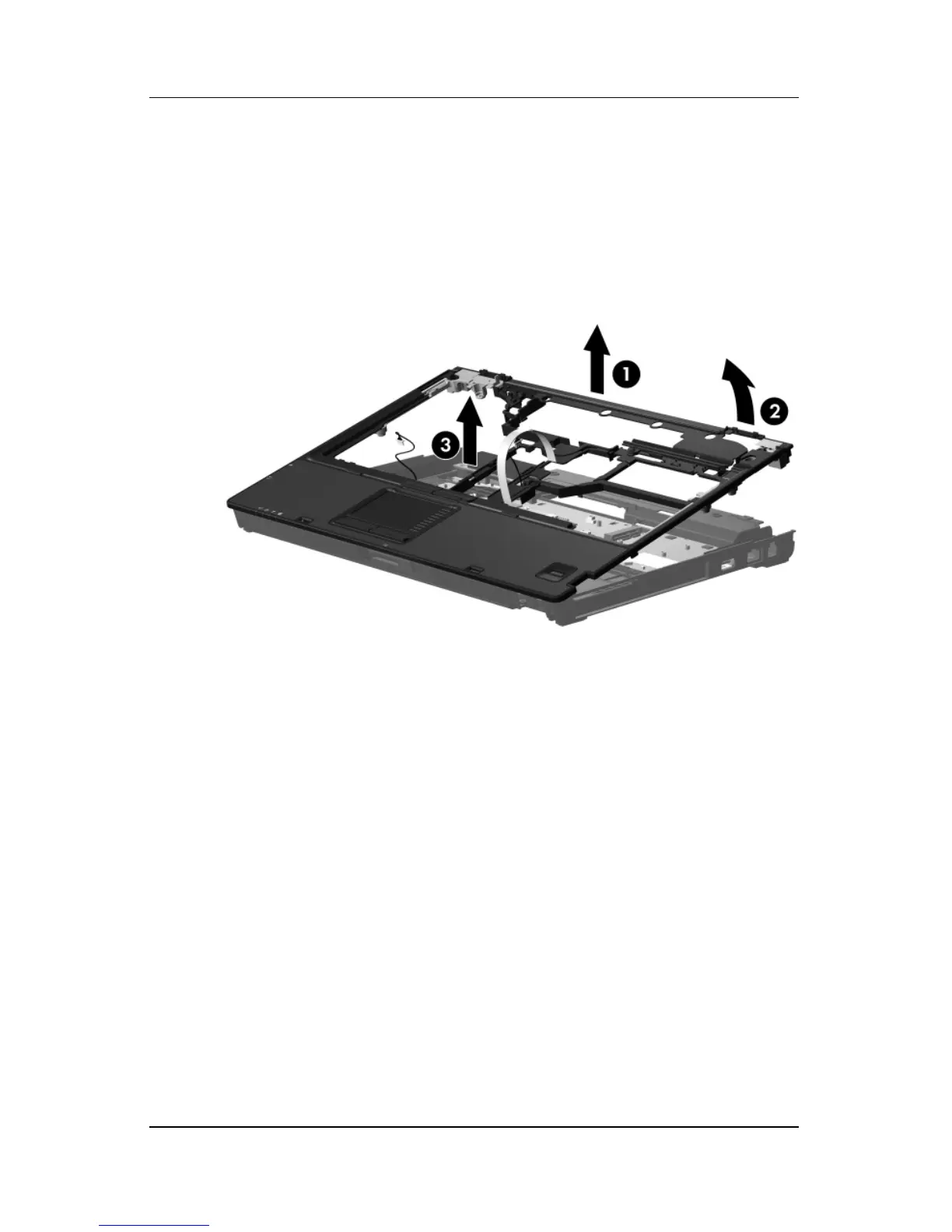

8. Swing the rear edge of the top cover 1 up and forward 2
until the left and right sides disengage from the
base enclosure.
9. Remove the top cover 3.
Removing the Top Cover
Reverse the above procedure to install the top cover.
