Removal and Replacement Procedures
Maintenance and Service Guide 5–63

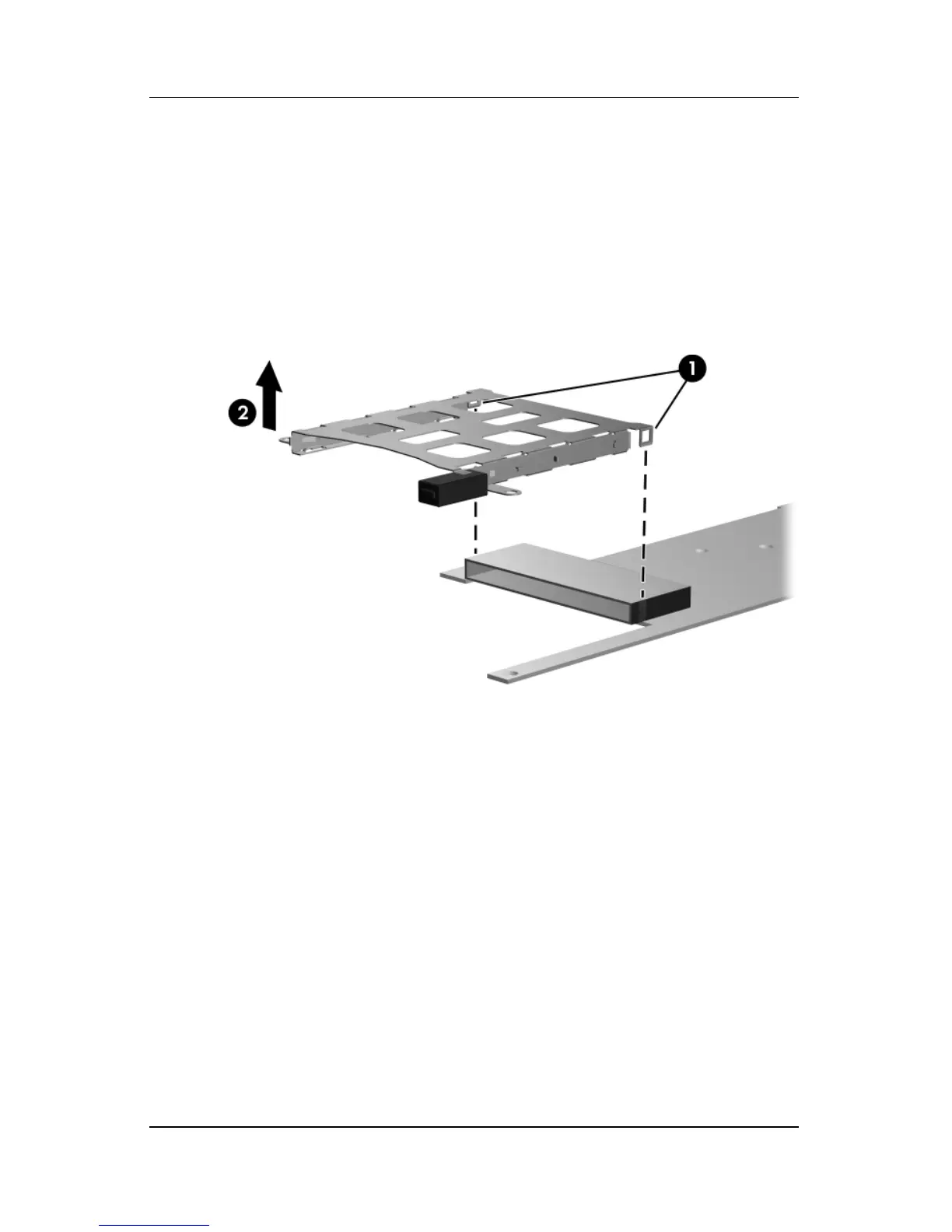

4. If it is necessary to remove the PC Card assembly from the
digital media board, disengage the hooks 1 on the PC Card
assembly from the tabs on the digital media board.
5. Remove the PC Card assembly 2 from the
digital media board.
Removing the PC Card Assembly
Reverse the above procedure to reassemble and install the
PC Card/digital media board.

HP Nc6400 - Compaq Business Notebook Specifications

General

Operating System	Windows XP Professional
Networking	10/100/1000 Gigabit Ethernet
Processor	Intel Core 2 Duo
RAM	Up to 4GB DDR2
Storage	80 GB HDD
Display	14.1-inch WXGA (1280 x 800)
Graphics	Intel GMA 950
Battery	6-cell Lithium Ion
Chipset	Intel 945GM Express
Optical Drive	DVD+/-RW
Wireless	Intel PRO/Wireless 3945ABG
Ports	3 USB 2.0, VGA, headphone, microphone, RJ-11, RJ-45
Slots	ExpressCard/54
Dimensions	13.1 x 9.3 x 1.2 in
