5–74 Maintenance and Service Guide
Removal and Replacement Procedures

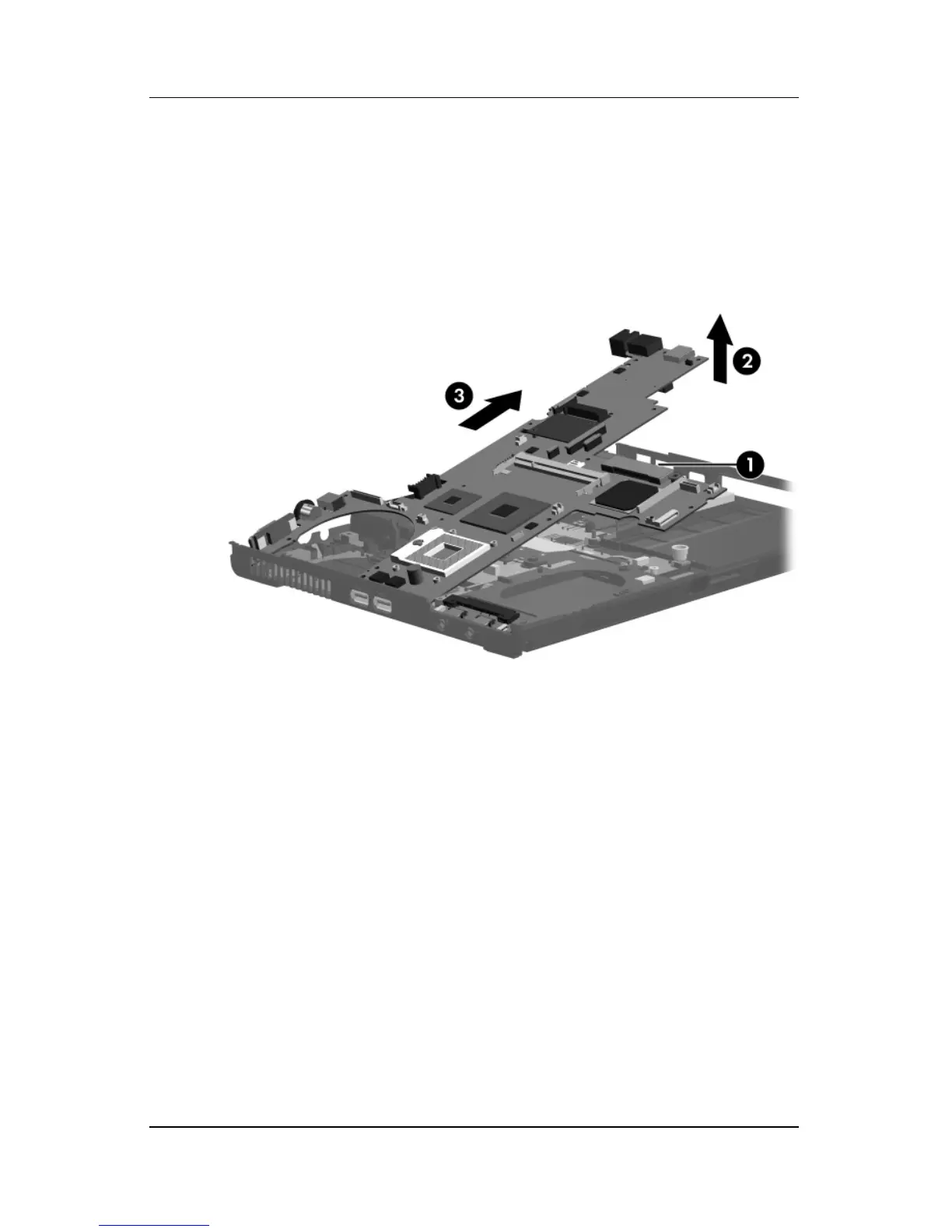

11. Use the hard drive connector 1 to lift the right side of the
system board 2 until it rests at an angle.
12. Slide the system board 3 away at an angle and remove it.
Removing the System Board
