A–8 Maintenance and Service Guide
Screw Listing

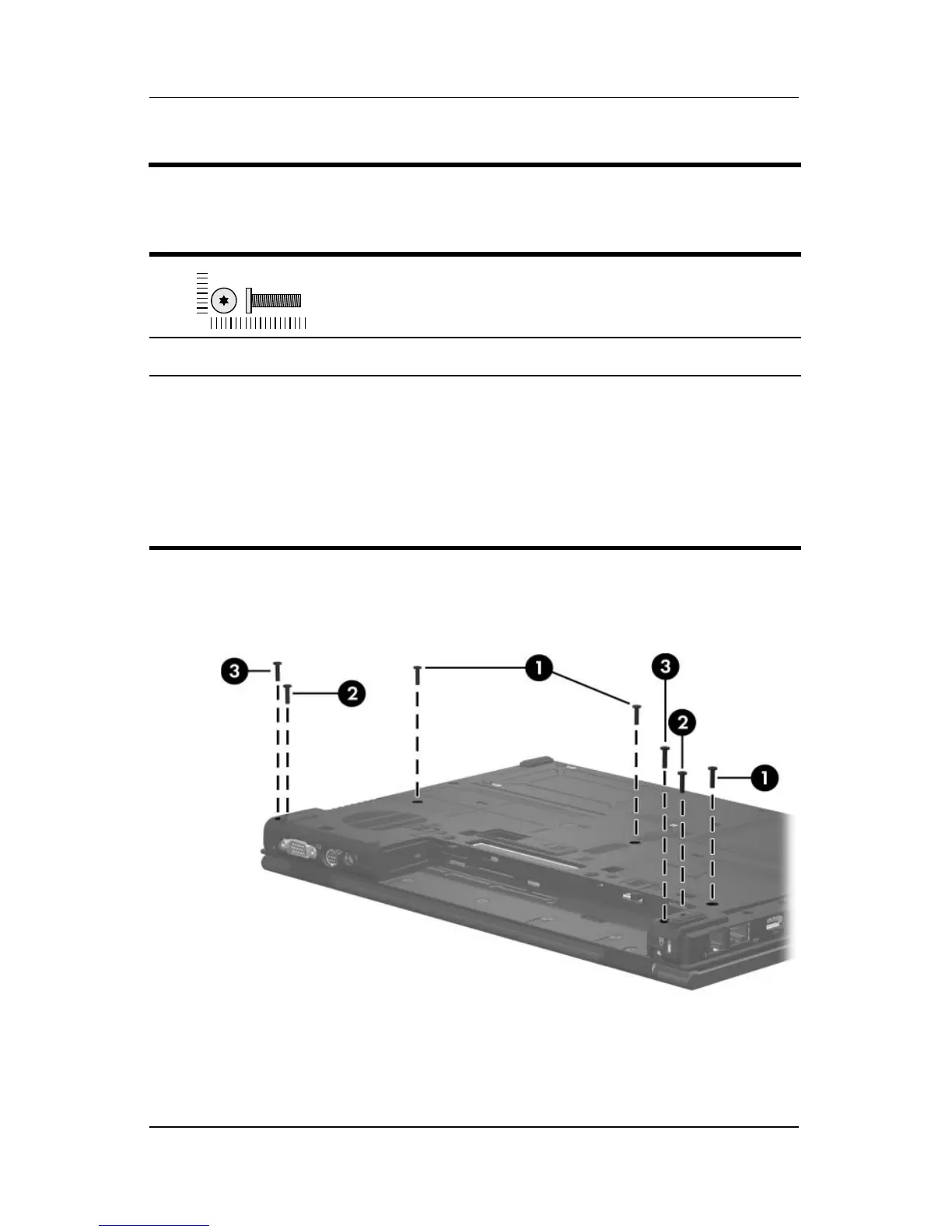

Torx8 T8M2.5×11.0 Screw Locations
Table A-5
Torx8 T8M2.5×11.0 Screw
Color Qty. Length Thread
Head
Width
Black 16 11.0 mm 2.5 mm 5.0 mm
Where used:
1 Three screws that secure the keyboard to the computer (documented in
Section 5.10)
2 Two screws that secure the switch cover to the computer (documented in
Section 5.15)
3 Two screws that secure the display assembly to the computer
(documented in Section 5.20)
