A–18 Maintenance and Service Guide
Screw Listing

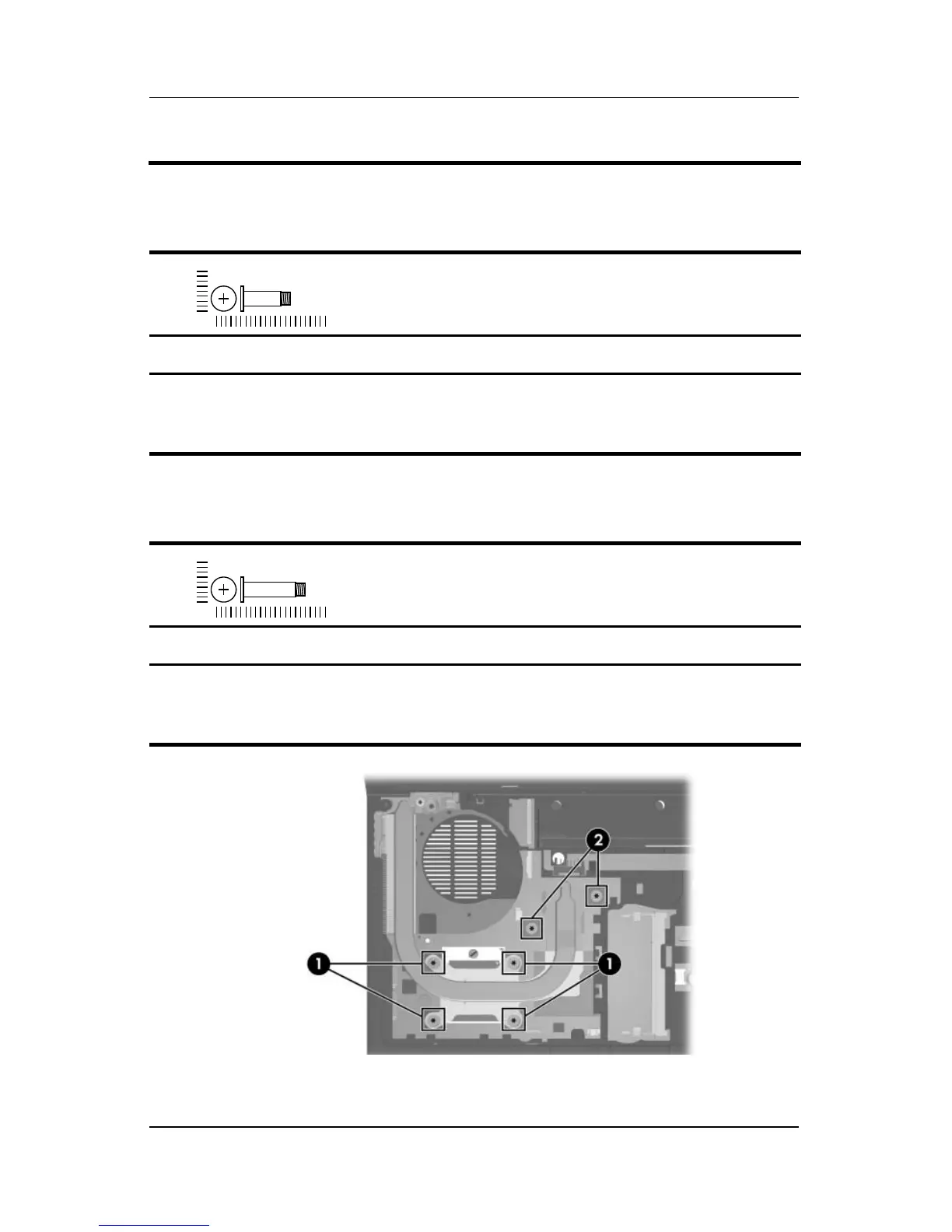

Phillips PM2.5×10.0 and Phillips PM2.5×13.0 Screw Locations
Table A-10
Phillips PM2.5×10.0 Screw
Color Qty. Length Thread
Head
Width
Silver 4 10.0 mm 2.5 mm 6.0 mm
Where used:
1 Four screws that secure the heat sink to the computer (screws are secured
to the heat sink by C-clips; documented in Section 5.18)
Table A-11
Phillips PM2.5×13.0 Screw
Color Qty. Length Thread
Head
Width
Silver 2 13.0 mm 2.5 mm 6.0 mm
Where used:
2 Two screws that secure the heat sink to the computer (screws are secured
to the heat sink by C-clips; documented in Section 5.18)
mm
mm
