efore repairing connectors, follow these steps:
▲ Prepare the monitor for disassembly. See Preparation for disassembly on page 24.

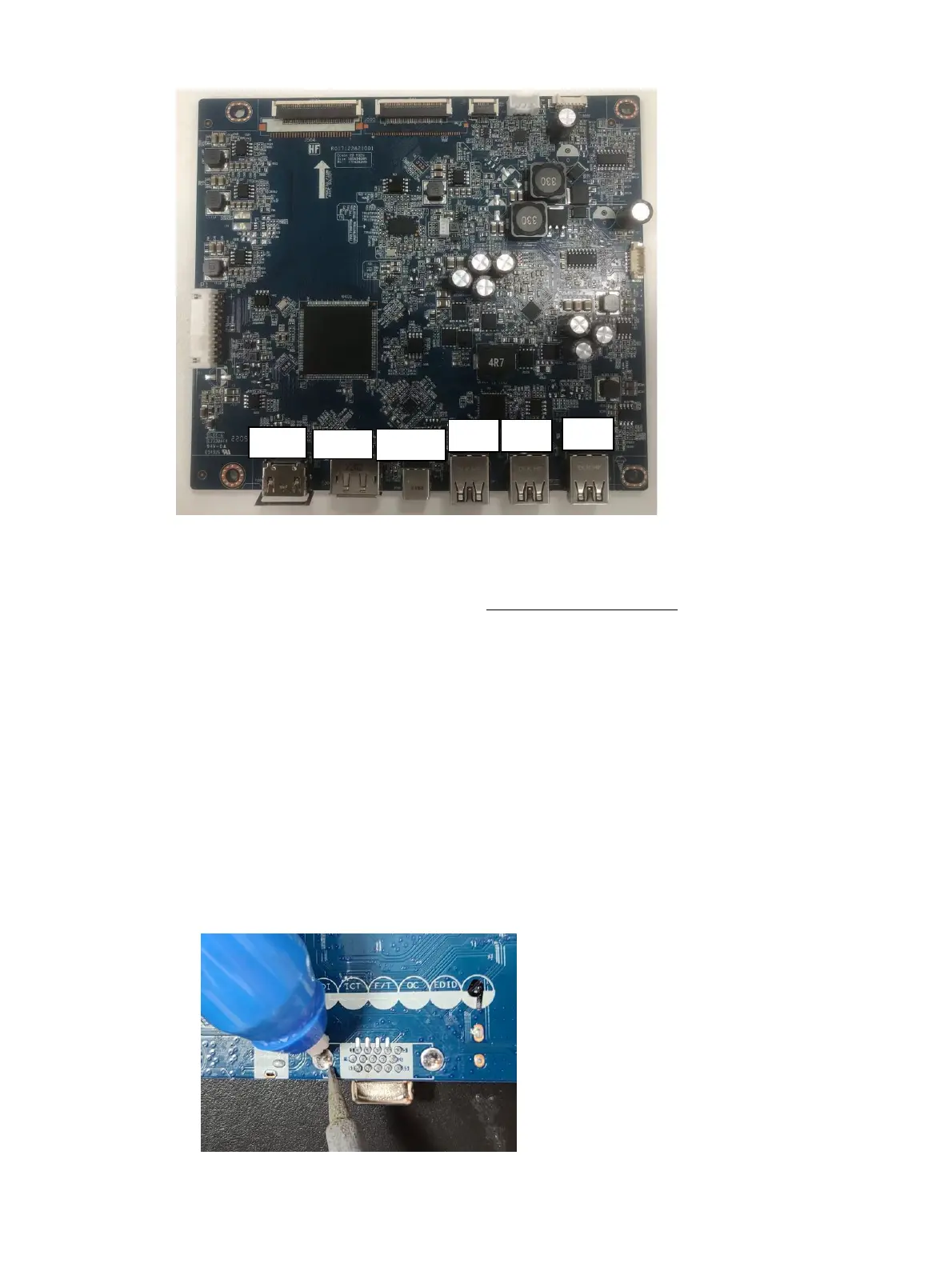

VGA connector P100
P22/P22h/P24/P24h/P27h G5
Repair the VGA connector:
1) Use a hot air gun to melt the solder on the pins. Pin solder with soldering iron and absorber. You can
gently push down with the soldering iron once everything is molten to move the P100 out of the
through holes.
2
) Lift the P100 connector from the PCB.
