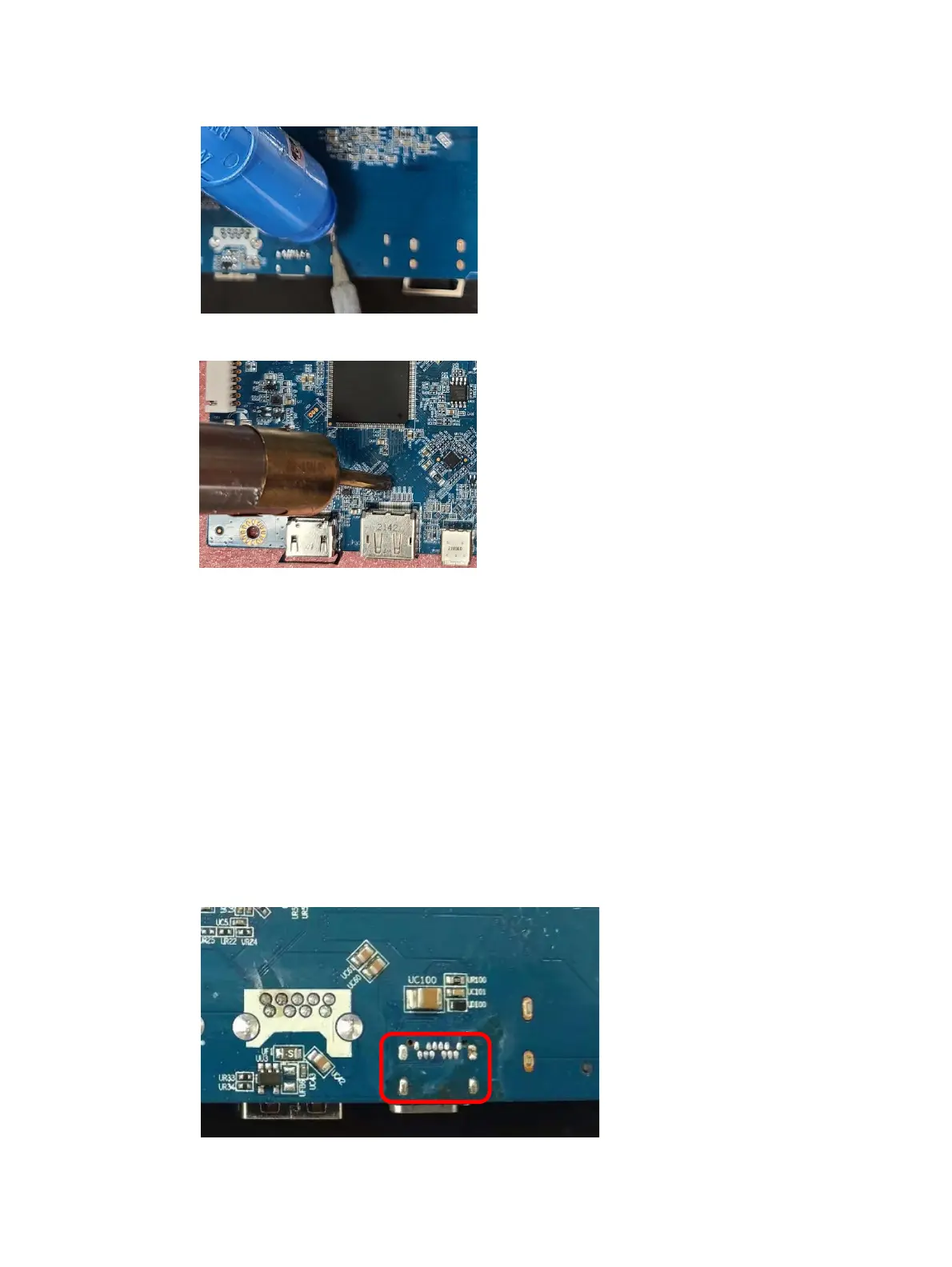

1
) Use a soldering iron and a disordering pump to remove as much solder as possible from the pin.
2
) Use a soldering iron or hot air gun to melt the solder on the pins.
3
) Lift the P300 connector from the PCB.
4) Place the new component on the PCB. Be sure that it matches the PCB footprint.
5) Solder the new component.
DP connector UP100
P32u G5
Repair the Displayport connector:
1) Use a soldering iron and a disordering pump to remove as much solder as possible from the pin.
2
) Use a soldering iron or hot air gun to melt the solder on the pins.
