Rear Cover
Before removing the Rear Cover, follow these steps:
▲ Prepare the monitor for disassembly. See Preparation for disassembly on page 9.

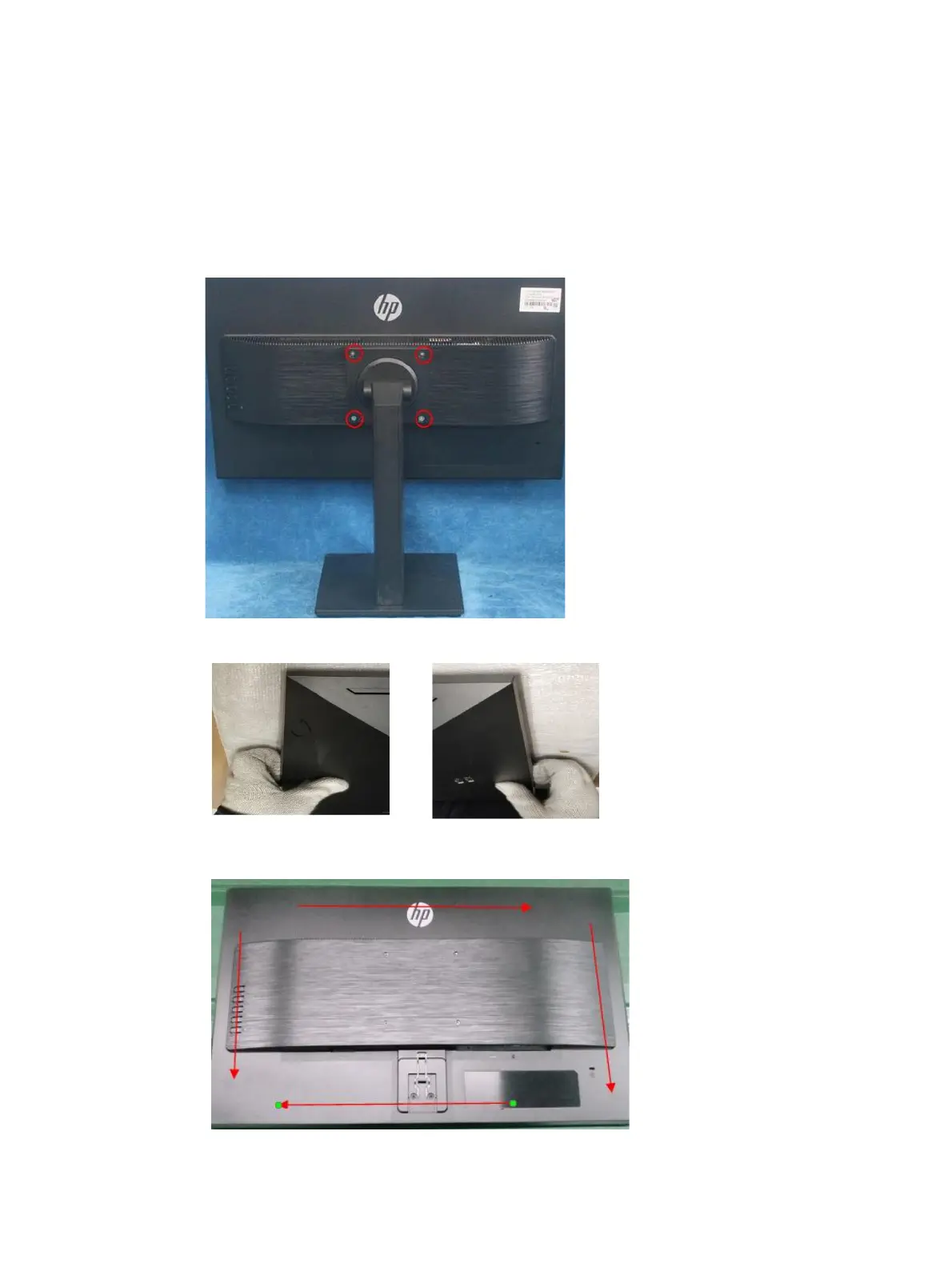

Remove the Rear Cover:
1) Remove the screws to remove the stand-base assy.
2) Use your fingers to split the left and right sides apart between the middle frame and rear case.
3) Insert the scraper bar tool into the gap between the middle frame and rear case, and then
rotate. The hook opens. Repeat the steps.
