Notebook Tour
Getting Started 4–15
Left-Side Components
Ports and Jacks

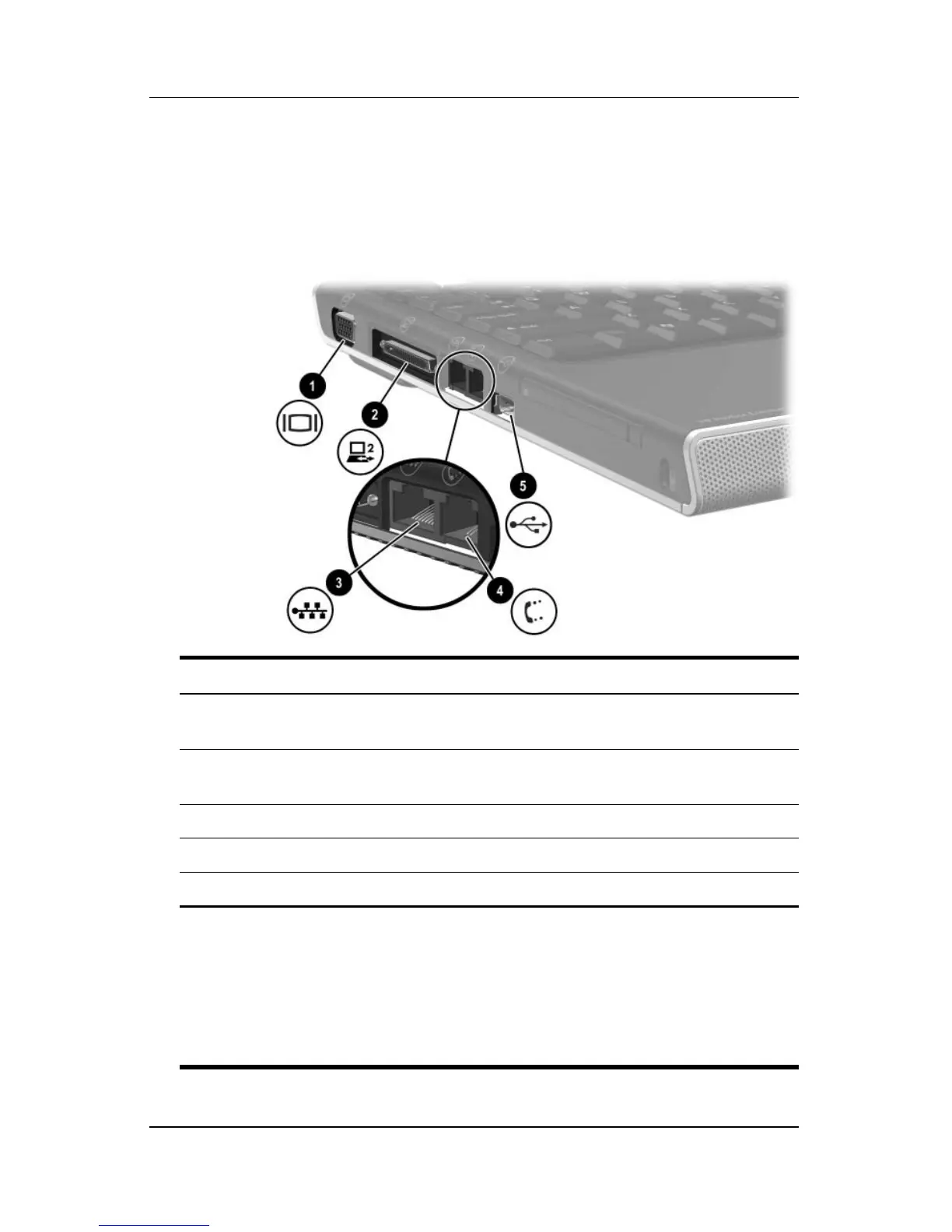

Component Description
1 Monitor port Connects an optional VGA monitor
or
projector.
2
Expansion port* Connects the notebook to an optional
Expansion Base.
3 RJ-45 (network) jack Connects an optional network cable.
†
4 RJ-11 (modem) jack Connects the modem cable.
†
5 USB port
‡
Connects an optional USB device.
†
*For expansion port signal information, see the “Expansion Port
Input/Output Signals” section in Appendix A of the
Hardware and Software
Guide
on the
Notebook Documentation
CD.
†
A network connection, a modem connection, or a device connected
to a USB port cannot be used when the notebook is in QuickPlay.
‡
The notebook has 3 USB ports. The other USB ports are on the
right-hand side of the notebook.
