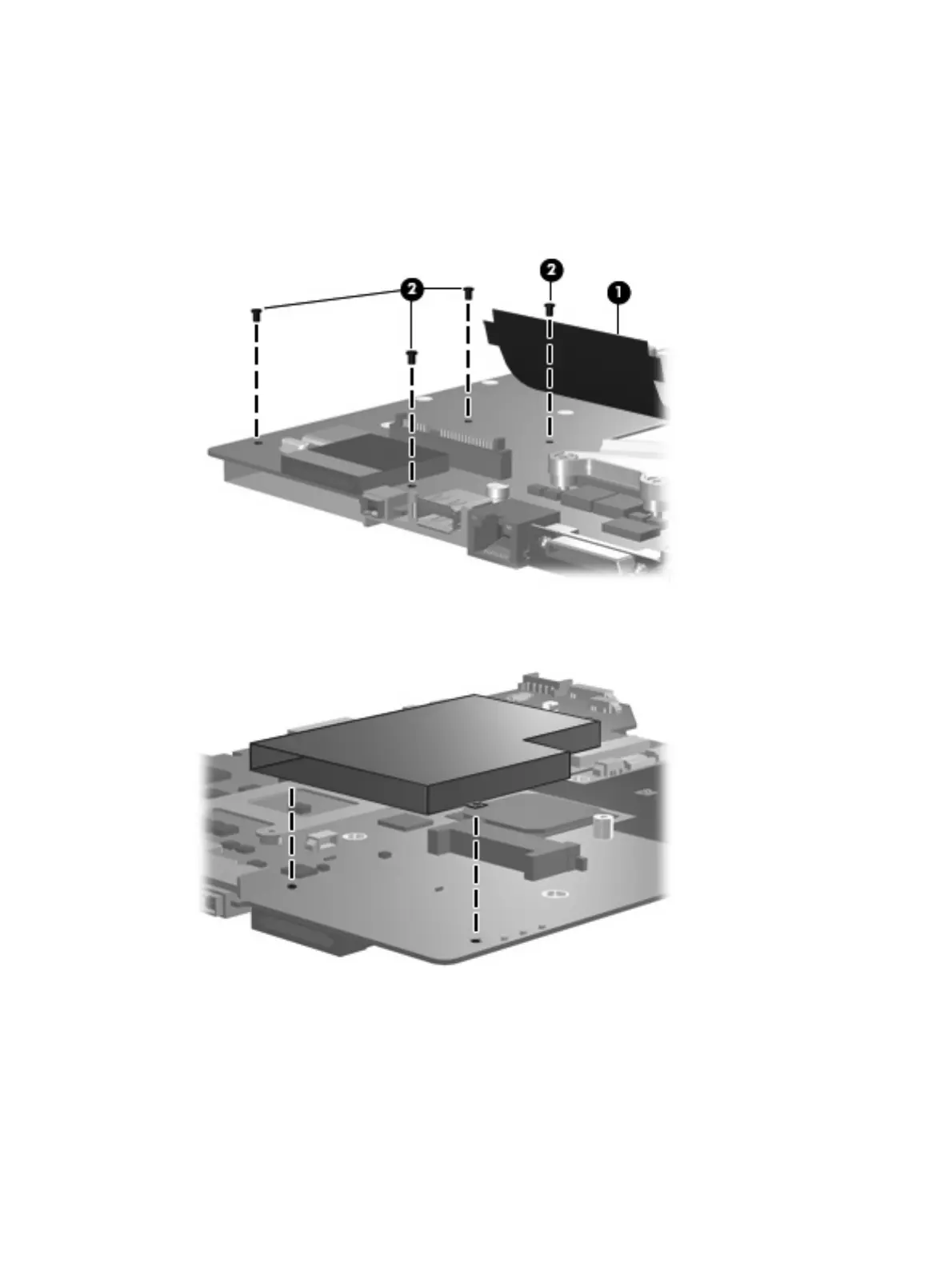

Remove the ExpressCard assembly:
1. Lift the insulation material (1) from the system board to expose the ExpressCard assembly rear
screws.
2. Remove the four Phillips PM2.0×6.0 screws (2) that secure the ExpressCard assembly to the system
board.
3.
Turn the system board right-side up with the front toward you.
4.
Remove the ExpressCard assembly from the system board.
Reverse this procedure to install the ExpressCard assembly.
Component replacement procedures 95
