Item Component Description
(13)
Volume up light Blinking: The volume scroll zone is being used to increase
speaker volume.
(14)
Num lock light On: Num lock is on or the embedded numeric keypad is
enabled.
*The 2 power lights display the same information. The light on the power button is visible only when the computer is open. The
power light on the front of the computer is visible whether the computer is open or closed.

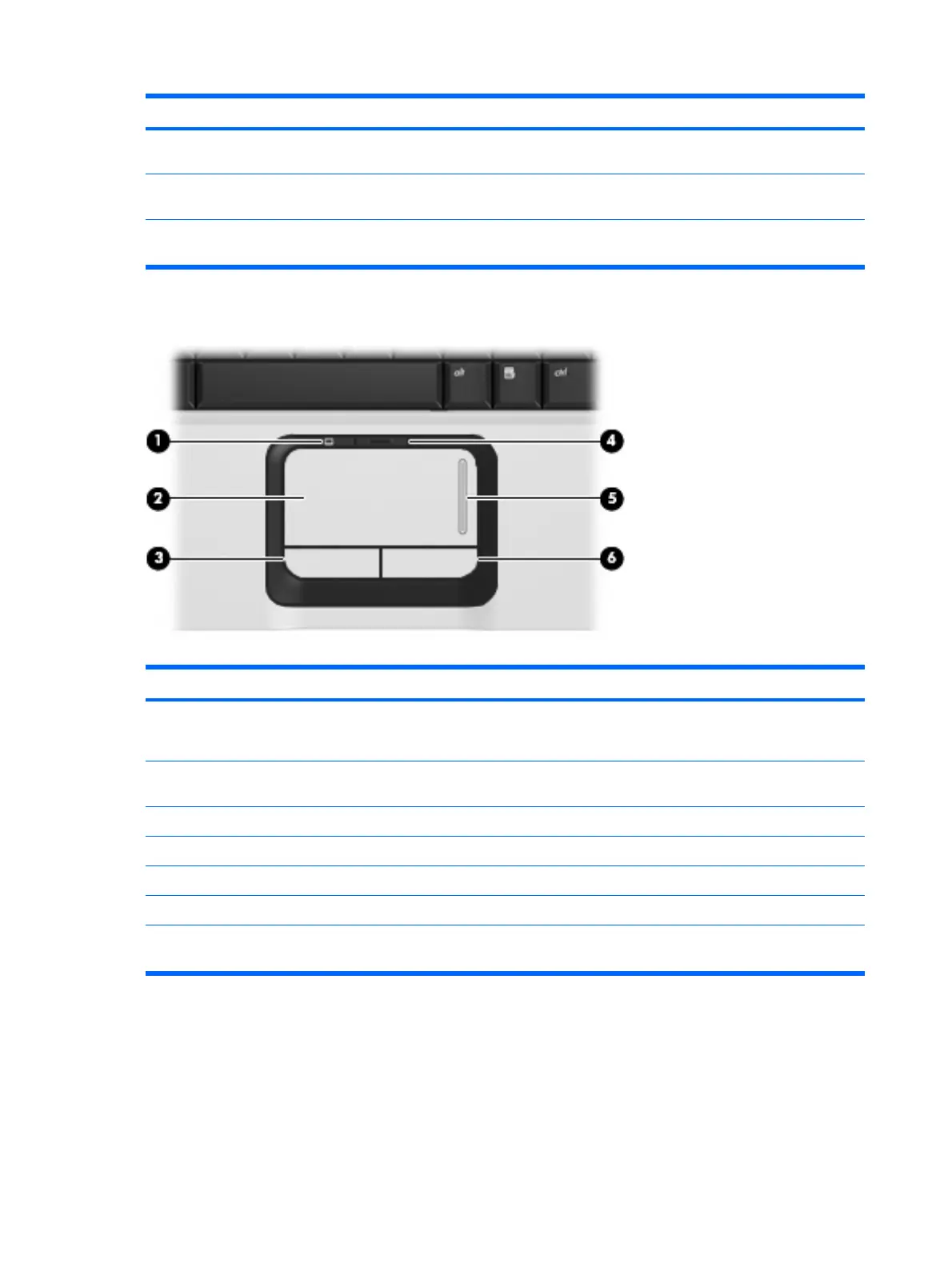

TouchPad
Item Component Function
(1)
TouchPad light
●
Blue: TouchPad is enabled.
●
Amber: TouchPad is disabled.
(2)
TouchPad* Moves the pointer and selects or activates items on the
screen.
(3)
TouchPad left button* Functions like the left button on an external mouse.
(4)
TouchPad on/off button Enables/disables the TouchPad.
(5)
TouchPad scroll zone Scrolls up or down.
(6)
TouchPad right button* Functions like the right button on an external mouse.
*This table describes factory settings. To view or change pointing device preferences, select Start > Control Panel >
Hardware and Sound > Mouse.
