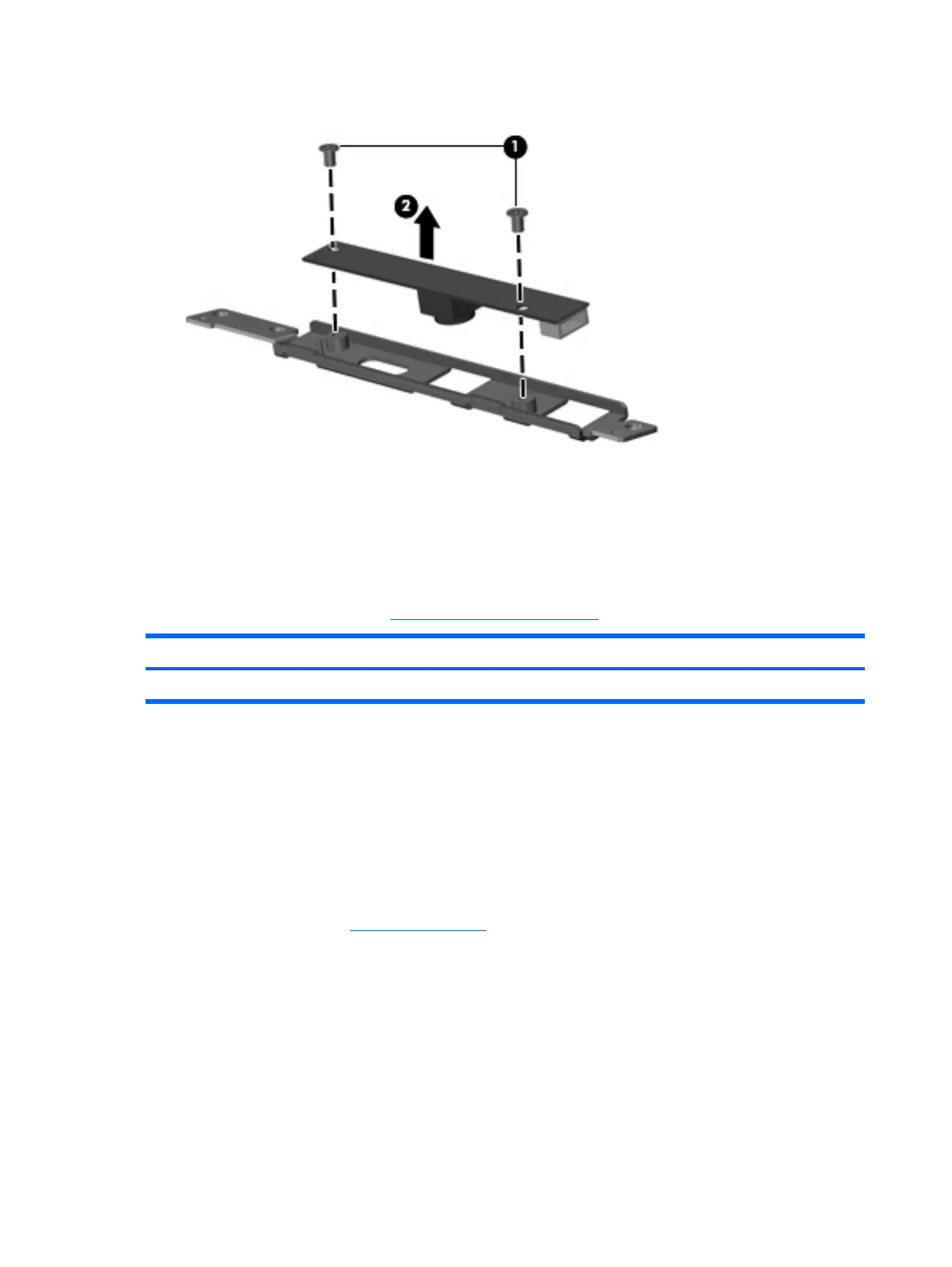

12. Remove the camera module (2) from the bracket.
Reverse this procedure to install the camera module.
Display inverter
If it has been determined that the display inverter is the component that must be replaced to complete the
computer repair, the display assembly does not have to be removed. Follow the procedures in this section
to replace the display inverter. For information on replacing the display assembly and other display
assembly internal components, see
Display assembly on page 68.
Description Spare part number
Display inverter (includes 2-sided tape) 417097-001
Before removing the display inverter, follow these steps:
1.
Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2.
Disconnect all external devices connected to the computer.
3.
Disconnect the power from the computer by first unplugging the power cord from the AC outlet and
then unplugging the AC adapter from the computer.
4.
Remove the battery (see
Battery on page 47).
Remove the display inverter:
1.
Turn the computer display-side up, with the front toward you.
2.
Open the computer as far as it will open.
3. Remove the two rubber screw covers (1) on the display bezel bottom edge. The display rubber screw
covers are included in the Rubber Feet Kit, spare part number 417095-001.
50 Chapter 4 Removal and replacement procedures
