HP PAVILION DV2500 Maintenance And Service Guide

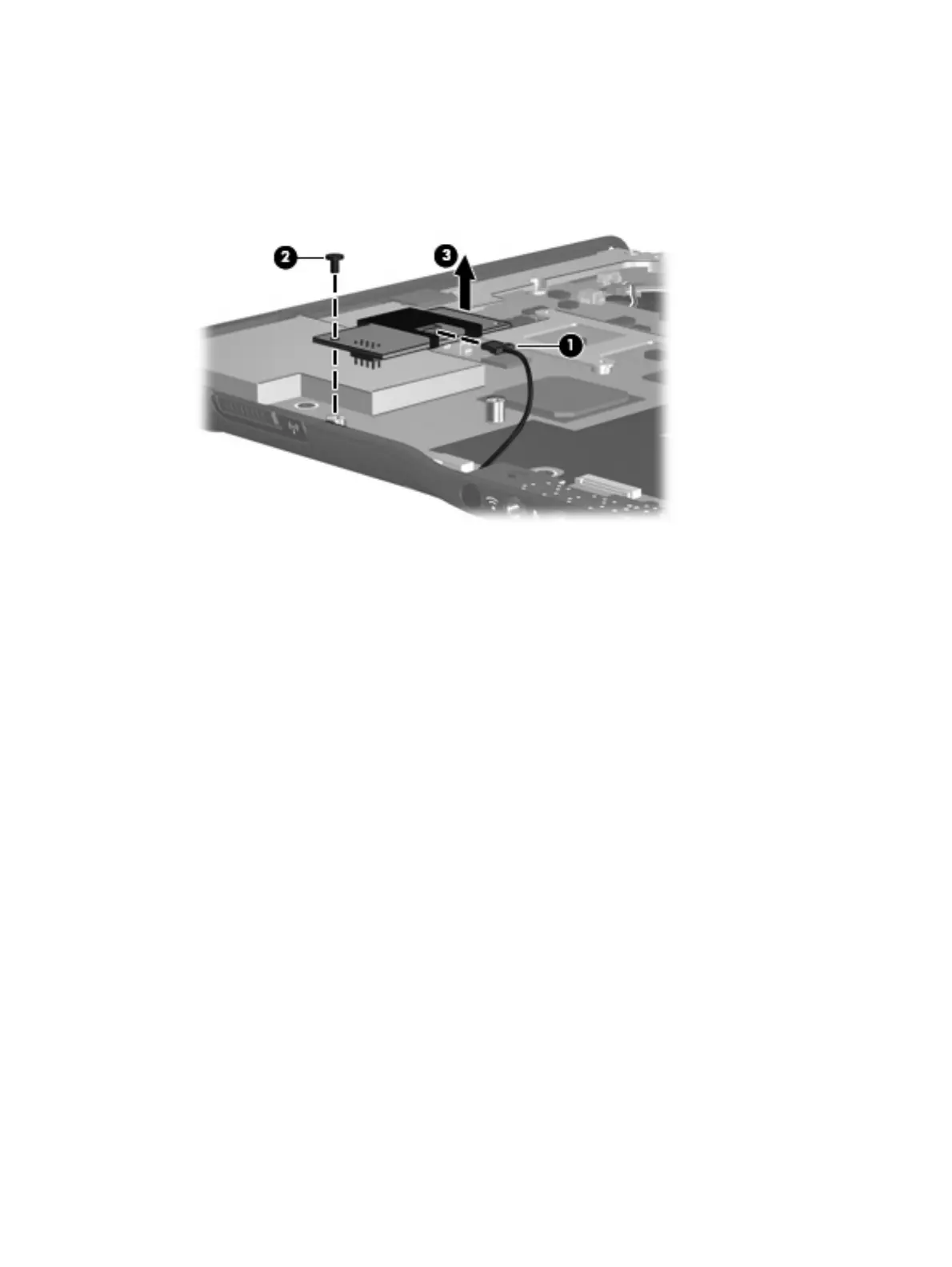

Remove the modem module:
1. Disconnect the modem module cable (1) from the modem module.
2. Remove the Phillips PM2.0×6.0 screw (2) that secures the modem module to the system board.
3. Lift up on the front of the modem module (3) to disconnect it from the system board.
4.
Remove the modem module.
Reverse the above procedure to install the modem module.
Component replacement procedures 81

HP PAVILION DV2500 Specifications

General

CPU	Intel Core 2 Duo
Screen Resolution	1280 x 800
Memory	Up to 4GB DDR2
Display	14.1-inch WXGA
Hard Drive	Up to 250GB SATA
Optical Drive	DVD±RW
Wireless	802.11b/g
Operating System	Windows Vista
