HP PAVILION DV2500 Maintenance And Service Guide

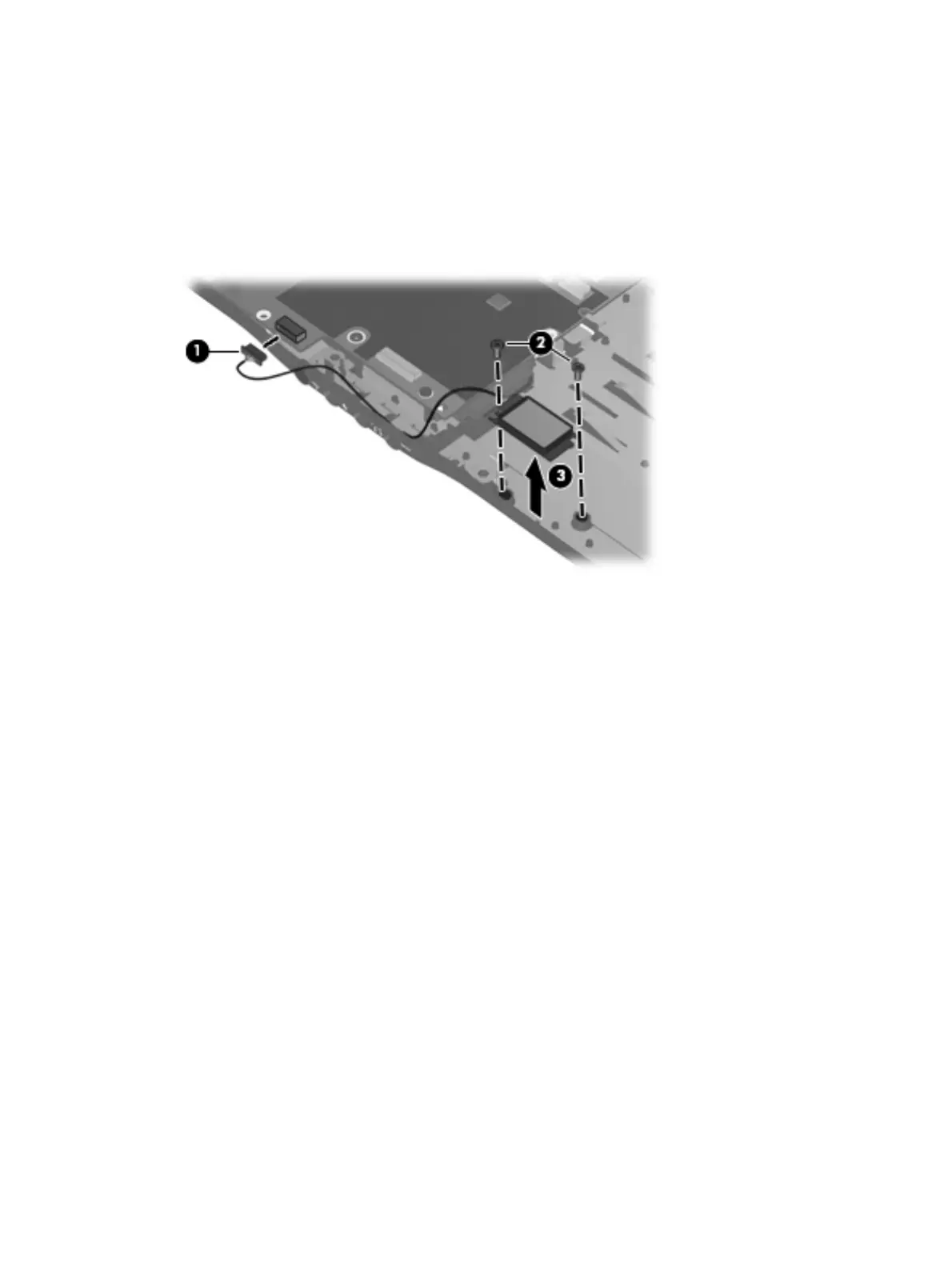

Remove the Bluetooth module:
1. Disconnect the Bluetooth module cable (1) from the system board. The Bluetooth module cable is
included in the Bluetooth module spare part kit and is also available in the Cable Kit, spare part
number 417075-001.
2. Remove the two Phillips PM2.0×3.0 screws (2) that secure the Bluetooth module to the computer.
3. Remove the Bluetooth module (3).
Reverse the above procedure to install the Bluetooth module.
84 Chapter 4 Removal and replacement procedures

HP PAVILION DV2500 Specifications

General

CPU	Intel Core 2 Duo
Screen Resolution	1280 x 800
Memory	Up to 4GB DDR2
Display	14.1-inch WXGA
Hard Drive	Up to 250GB SATA
Optical Drive	DVD±RW
Wireless	802.11b/g
Operating System	Windows Vista
