4.

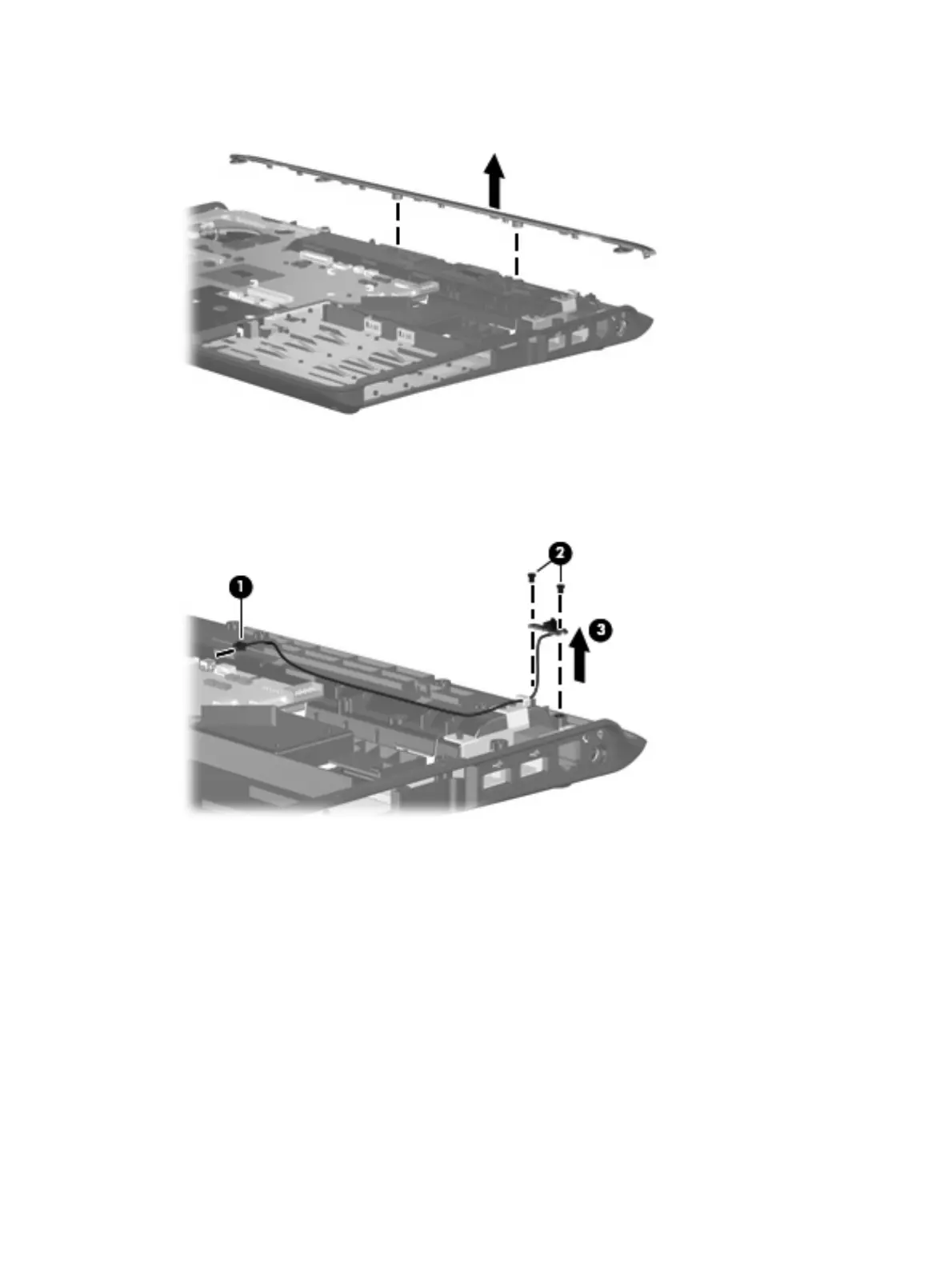

Remove the top cover trim from the computer. The top cover trim is included in the Door/Cover Kit,
spare part number 417073-001.
5. Disconnect the display switch module cable (1) from the system board.
6. Remove the Phillips PM2.0×3.0 screw (2) that secures the display switch module to the computer.
7. Remove the display switch module (3) from the computer.
Reverse this procedure to install the display switch module.
90 Chapter 4 Removal and replacement procedures
