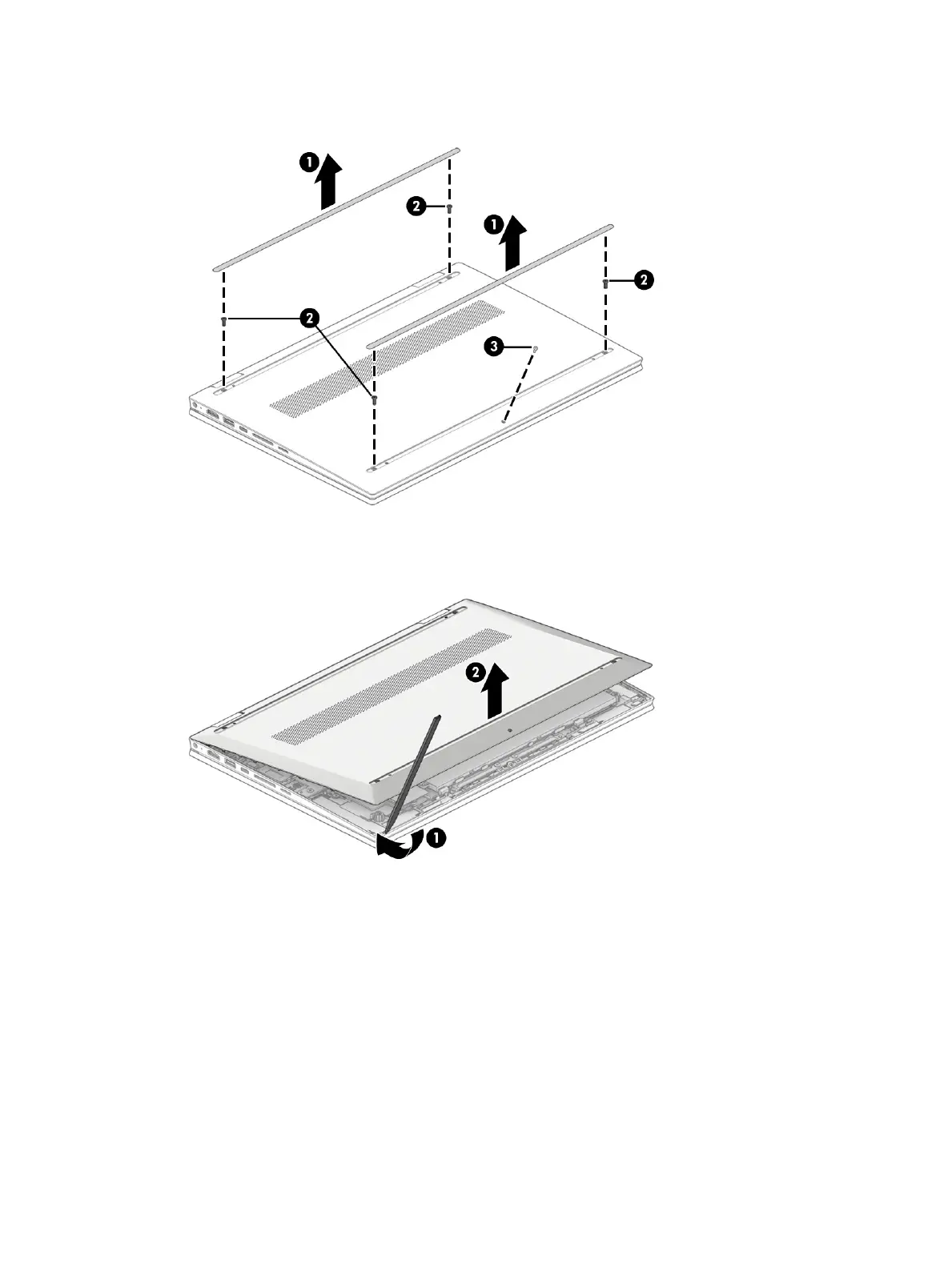

6. Remove the four Phillips M2.5×6.5 screws (2) the Torx5 M2.0×2.7 screw (3) that secure the bottom cover
to the keyboard/top cover.
7. Use a thin plastic tool (1) to separate the front edge of the bottom cover from the keyboard/top cover.
8. Remove the bottom cover (2).
Reverse this procedure to install the bottom cover.
40 Chapter 5 Removal and replacement procedures
