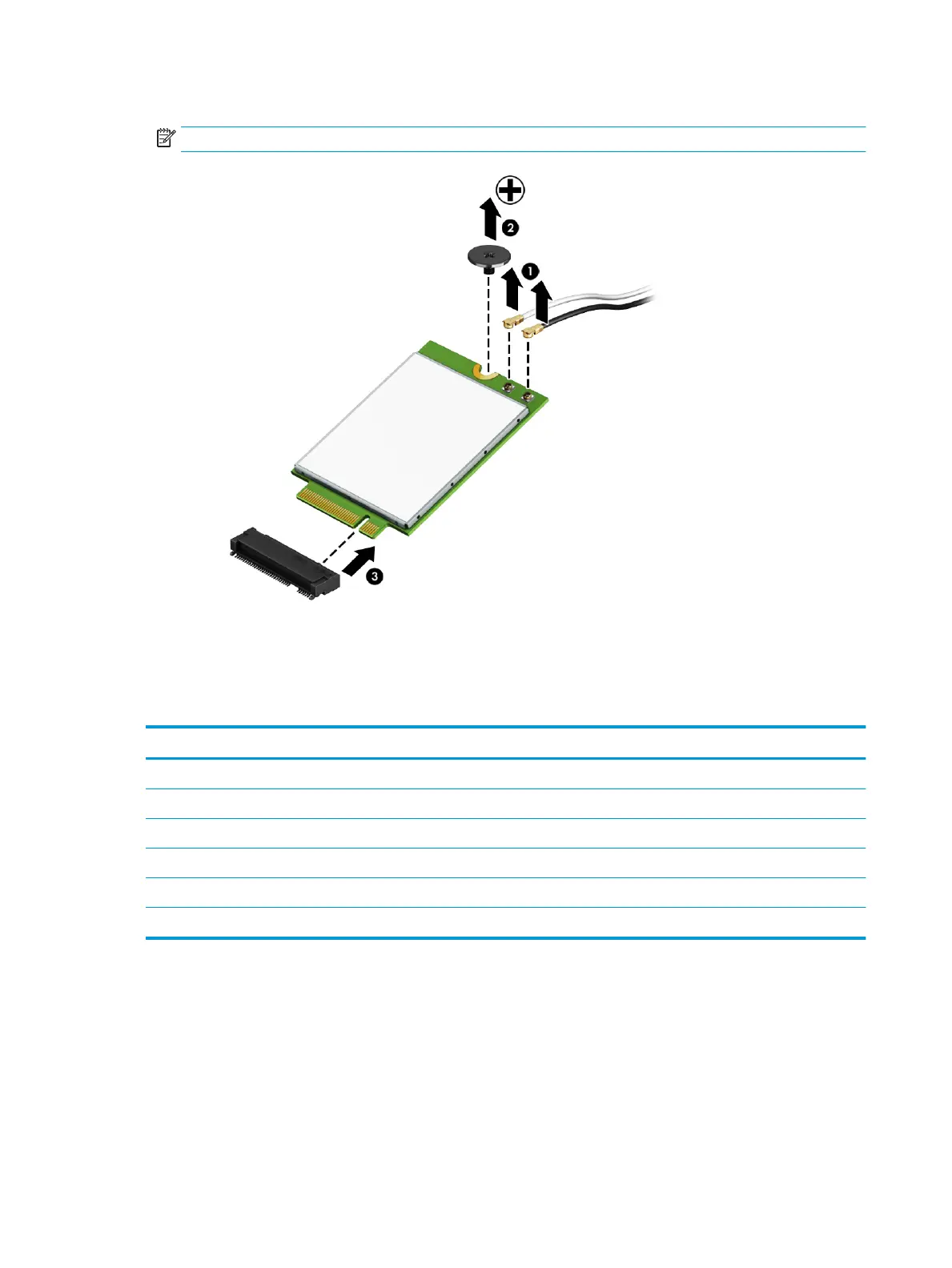

3. Remove the WWAN module (3) by pulling the module away from the slot at an angle.
NOTE: WWAN modules are notched to prevent incorrect installation.
Reverse this procedure to install the WWAN module.
Solid-state drive
Table
5-4 Solid-state drive spare part information
Description Spare part number
1 TB, M.2 2280, PCIe, NVMe value solid-state drive L85370-005
512 GB, M.2 2280, PCIe, NVMe value solid-state drive L85364-005
512 GB 2280 PCIe-3×2×2 NVMe + 32 GB 3D Xpoint solid-state drive L85366-005
256 GB, M.2 2280, PCIe, NVMe value solid-state drive L85354-005
256 GB 2280 PCIe-3×2×2 NVMe + 16 GB 3D Xpoint solid-state drive L85356-005
128 GB, M.2 2280, SATA-3 solid-state drive with TLC L85346-005
Before removing the solid-state drive, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is o or in Hibernation, turn
the computer on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by rst unplugging the power cord from the AC outlet, and then
unplugging the AC adapter from the computer.
44 Chapter 5 Removal and replacement procedures
