Reverse this procedure to install the speakers.
Touchpad cable
Table 5-16 Touchpad cable spare part information
Description Spare part number
Touchpad cable L96500-001
Before removing the touchpad cable, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is o or in Hibernation, turn
the computer on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by rst unplugging the power cord from the AC outlet, and then
unplugging the AC adapter from the computer.
4. Remove the bottom cover (see Bottom cover on page 39), and then remove the following components:
a. Battery (see Battery on page 41)
b. Solid-state drive (see Solid-state drive on page 44)
c. Fan (see Fan on page 60)
d. System board (see System board on page 62)
e. Speakers (see Speakers on page 73)
Remove the touchpad cable:

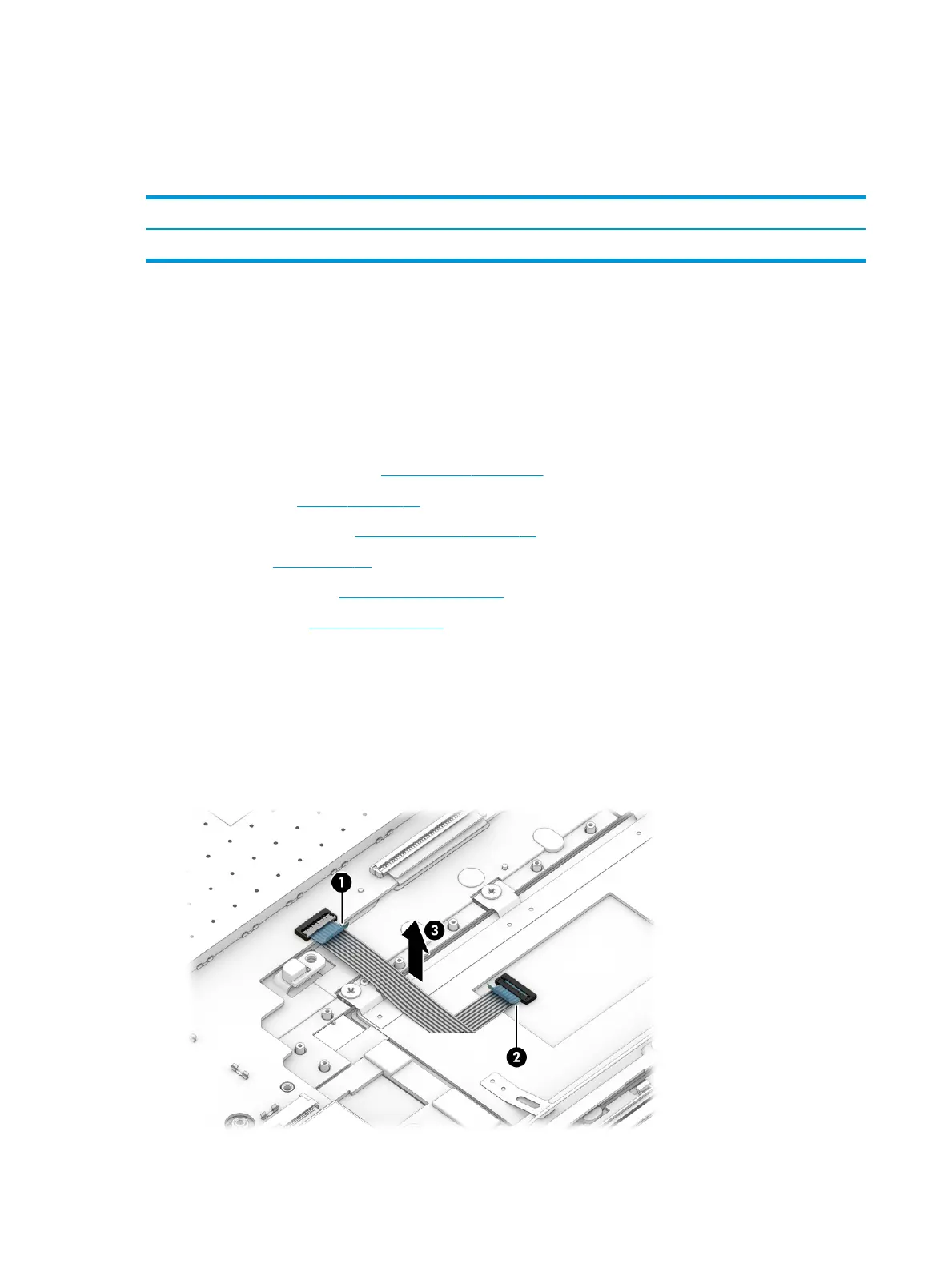

1. Release the ZIF connector (1) to which the touchpad cable is connected, and then disconnect the touchpad
cable from the system board.
2. Release the ZIF connector (2) to which the touchpad cable is connected, and then disconnect the touchpad
cable from the touchpad.
3. Remove the touchpad cable (3).
74 Chapter 5 Removal and replacement procedures
