Fingerprint reader cable
Table 5-14 Speaker spare part information
Description Spare part number
Fingerprint reader cable L96499-001
Before removing the ngerprint reader cable, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is o or in Hibernation, turn
the computer on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by rst unplugging the power cord from the AC outlet, and then
unplugging the AC adapter from the computer.
4. Remove the bottom cover (see Bottom cover on page 39), and then remove the following components:
a. Battery (see Battery on page 41)
b. Solid-state drive (see Solid-state drive on page 44)
c. Fan (see Fan on page 60)
d. System board (see System board on page 62)
e. Fingerprint reader (see Fingerprint reader on page 70)

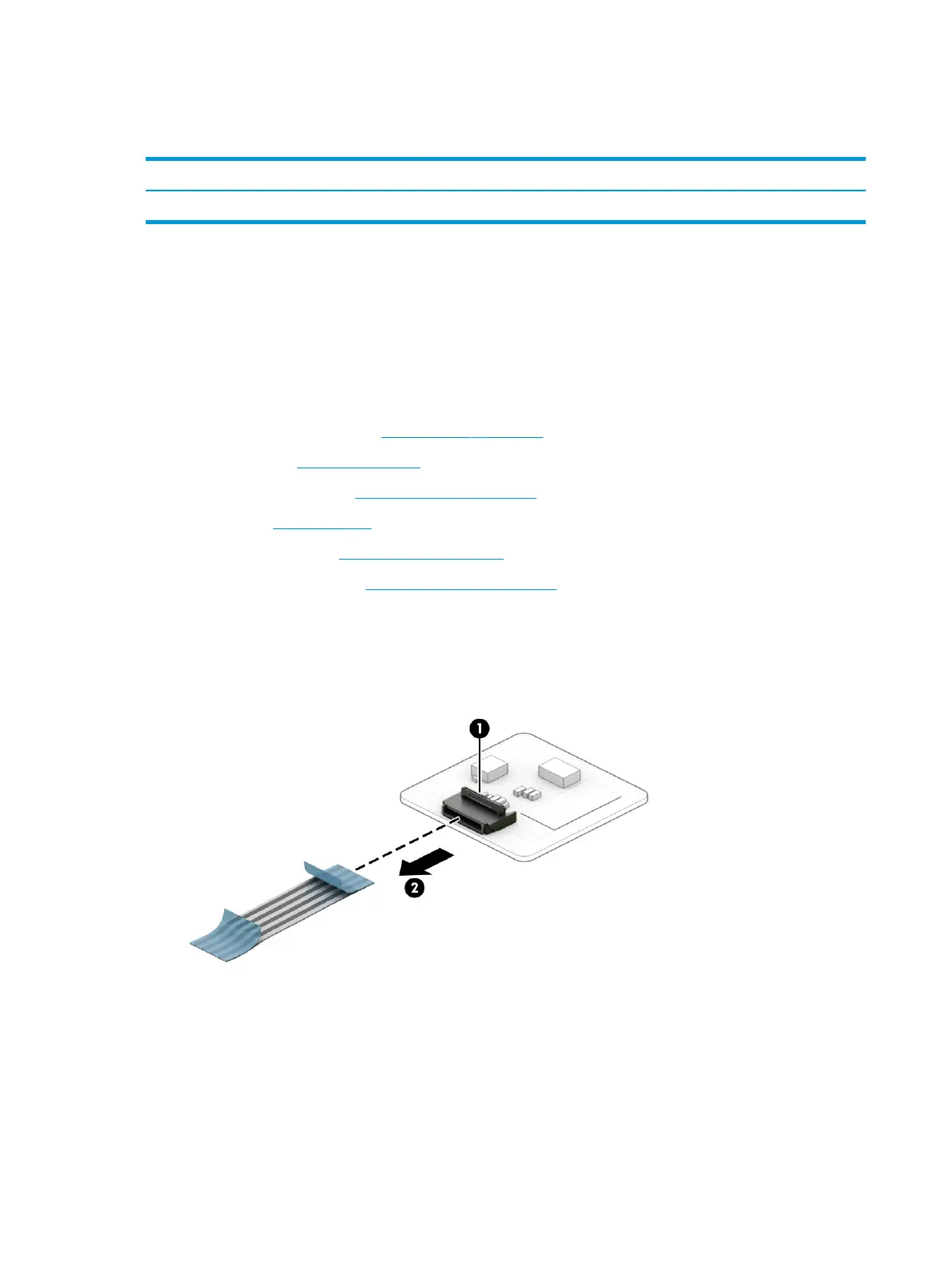

Remove the ngerprint reader cable:
1. Release the ZIF connector (1) to which the ngerprint reader cable is connected, and then disconnect
the ngerprint reader cable from the ngerprint reader.
2. Remove the ngerprint reader cable (2).
Reverse this procedure to install the ngerprint reader cable.
72 Chapter 5 Removal and replacement procedures
