Power connector cable
Table 5-8 Power connector cable spare part information
Description Spare part number
Power connector cable L96502-001
Before removing the power connector cable, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is o or in Hibernation, turn
the computer on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by rst unplugging the power cord from the AC outlet, and then
unplugging the AC adapter from the computer.
4. Remove the bottom cover (see Bottom cover on page 39).
5. Remove the battery (see Battery on page 41).
6. Remove the display assembly (see Display assembly on page 51).

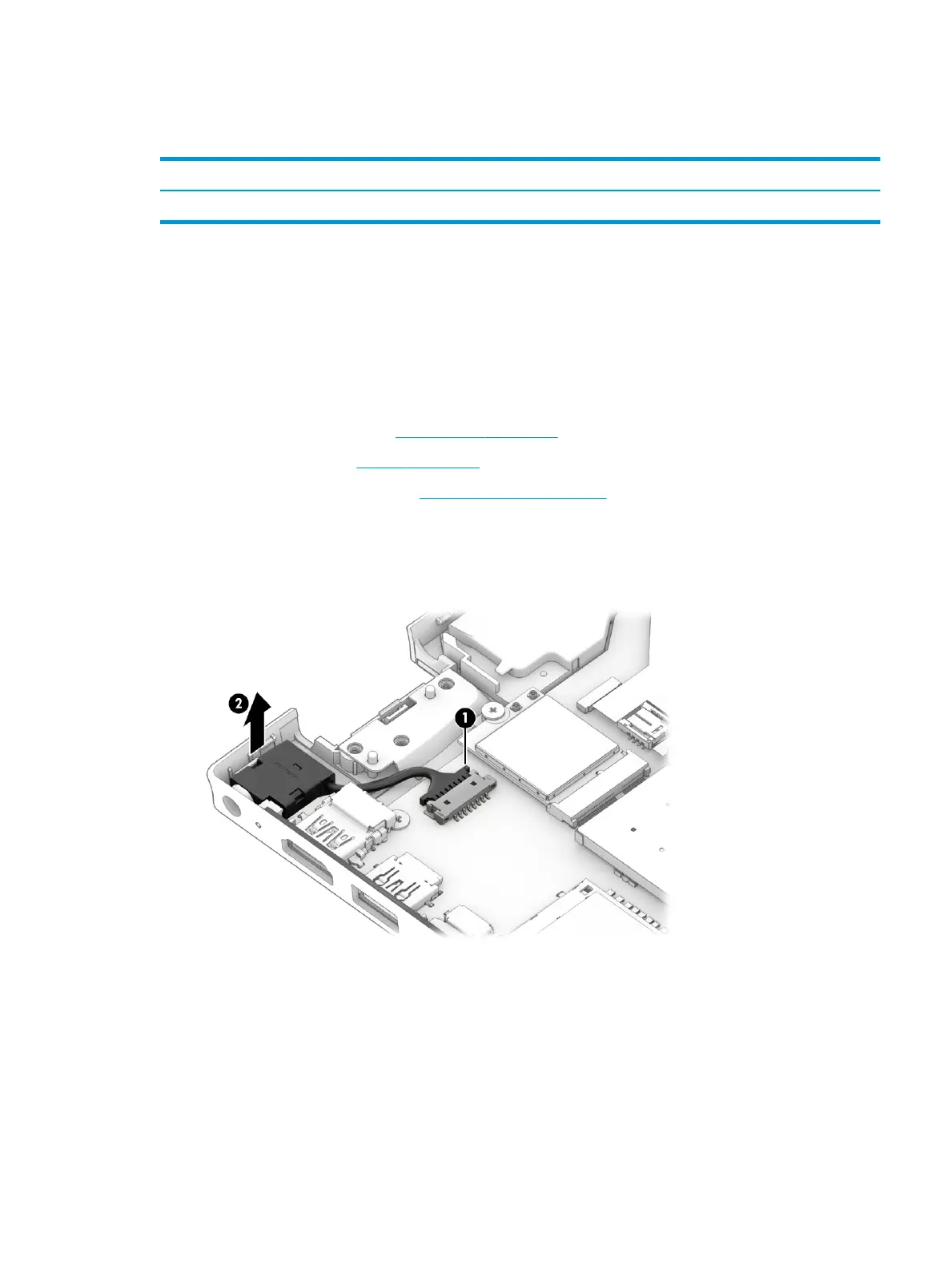

Remove the power connector cable:
1. Disconnect the power connector cable (1) from the system board.
2. Remove the power connector cable (2).
Reverse this procedure to install the power connector cable.
Component replacement procedures 61
