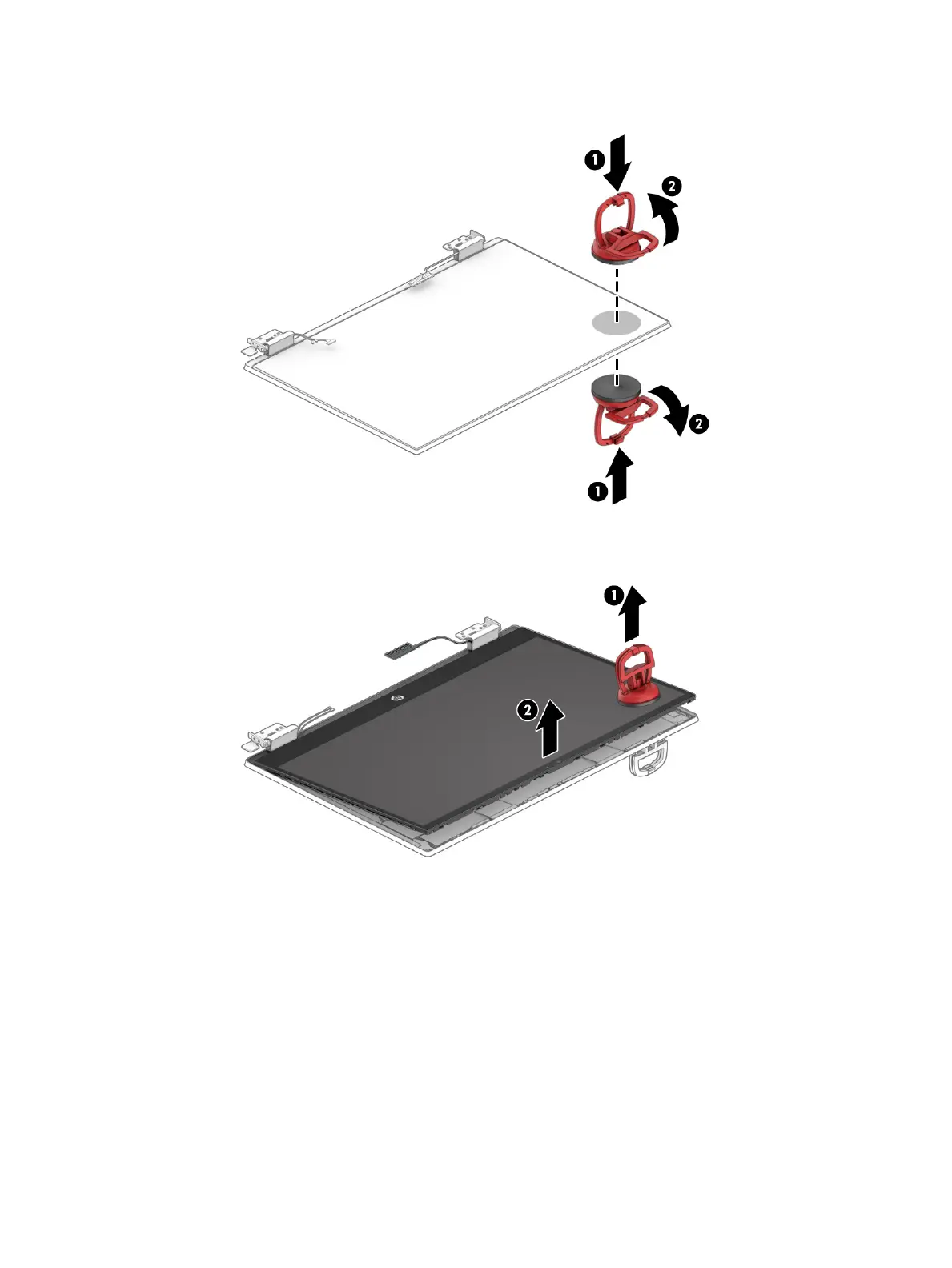

b. Secure the suction cups to the display assembly by swinging the handles (2) into position.
c. Use a the suction cups (1) to separate the top edge (2) of the display panel assembly from the display
back cover.
d. Swing the top edge (1) of the display panel assembly up and forward until it rests upside down in
front of the display assembly.
e. Release the display panel cable (2), the webcam/microphone module , and the WLAN antenna cables
from the display hinges.
f. Remove the display panel assembly (3).
The display panel assembly is available using the following spare part numbers:
● L96516-001 – 14.0 in, FHD, antiglare, UWVA, 400 nits touchscreen display panel assembly
● L96515-001 – 14.0 in, FHD, antiglare, UWVA, 250 nits touchscreen display panel assembly
● L96517-001 – 14.0 in, HD, antiglare, SVA, 220 nits touchscreen display panel assembly
Component replacement procedures 53
