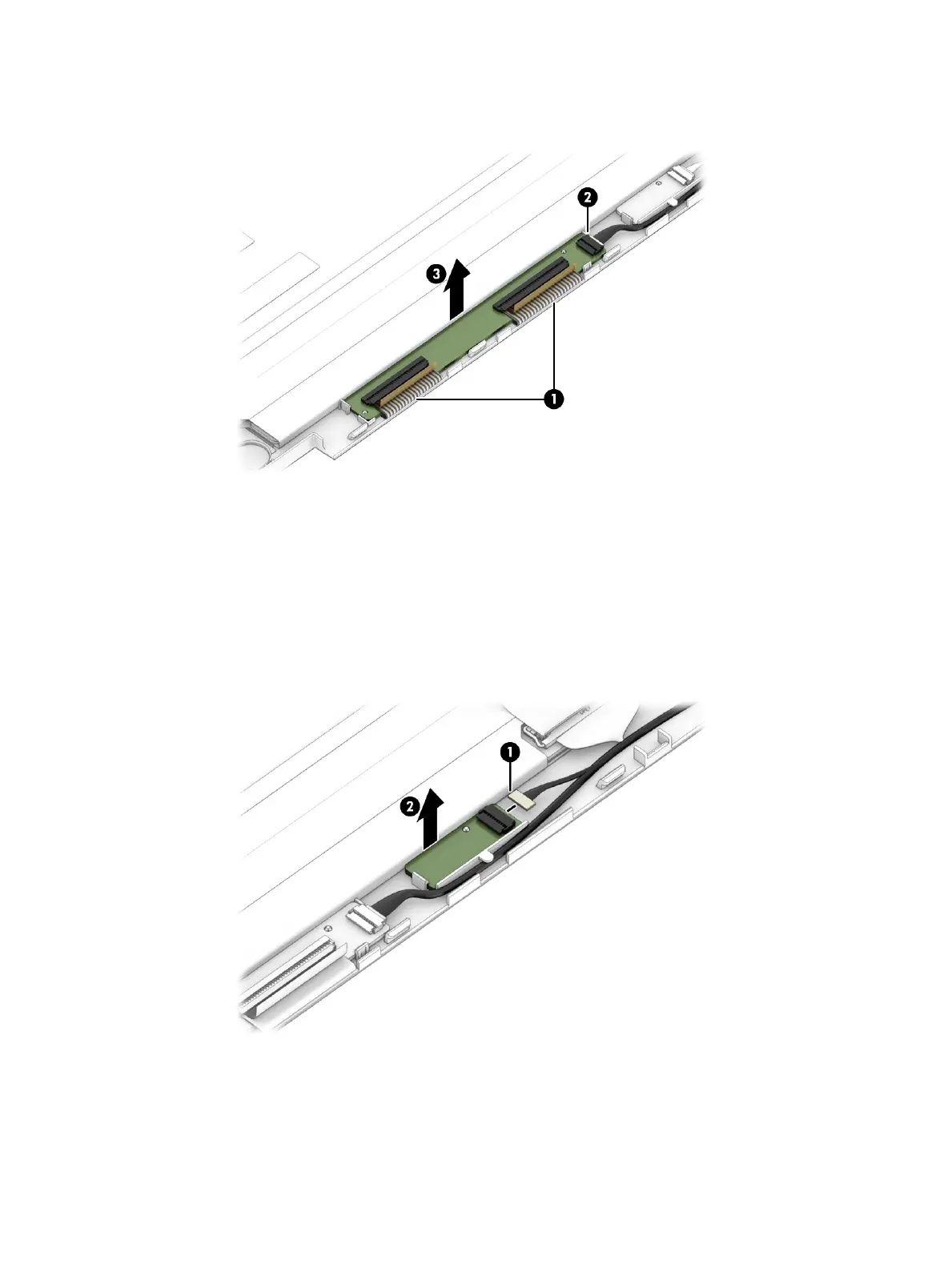

d. Detach the touch control board (4) from the display panel. (The touch control board is attached to
the display panel with double-sided tape.)
e. Remove the touch control board.
The touch control board is available using spare part number L96505-001.
11. If it is necessary to replace the sensor board, follow these steps:
a. Remove the display panel assembly.
b. Disconnect the display panel cable (1) from the sensor board.
c. Detach the sensor board (2) from the display panel. (The sensor board is attached to the display
panel with double-sided tape.)
d. Remove the sensor board.
The sensor board is available using spare part number L96506-001.
12. If it is necessary to replace the display panel cable, follow these steps:
Component replacement procedures 55
