16. If it is necessary to replace the WLAN antennas, follow these steps:
a. Remove the display panel assembly.
b. Remove the right display hinge.

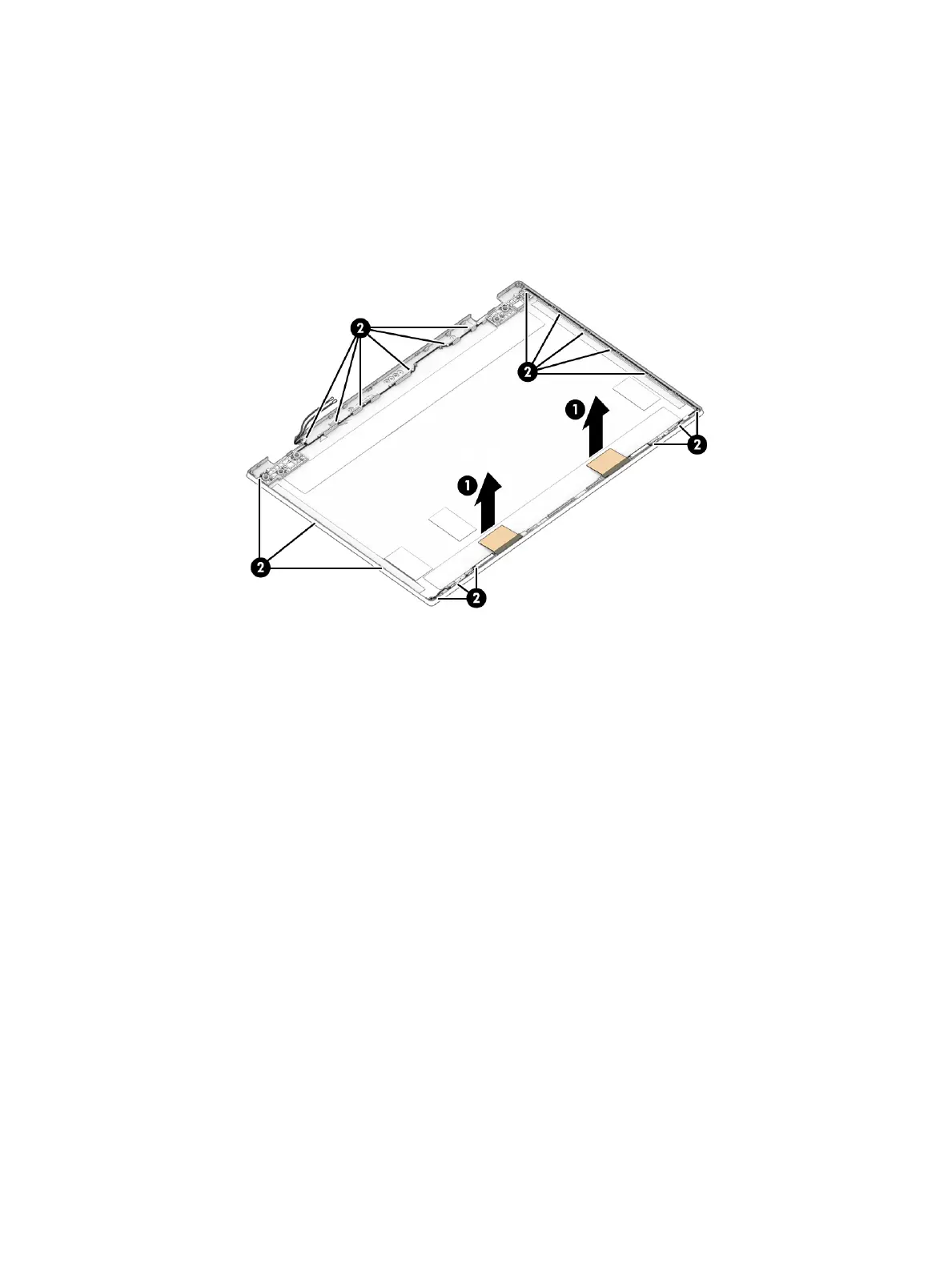

c. Detach the antenna transceivers (1) from the display back cover. (The antenna transceivers are
attached to the display back cover with double-sided tape.)
d. Release the antenna cables from the routing channels (2) built into the display back cover.
e. Remove the WLAN antenna cables and transceivers.
The WLAN antenna are available using spare part numbers L96482-001 (for use only on computer
models equipped with a WLAN module with 2 antenna terminals) and L96482-001 (for use only on
computer models equipped with a WLAN module with 1 antenna terminal).
Reverse this procedure to reassemble and install the display assembly.
Component replacement procedures 59
