HP ProCurve 2510G Series Installation And Getting Started Guide

2-19
Installing the Switch
Sample Network Topologies
Installing the Switch
Sample Network Topologies
This section shows a few sample network topologies in which the Switch is
implemented. For more topology information, see the ProCurve networking
products Web site,
www.procurve.com.
As a Desktop Switch

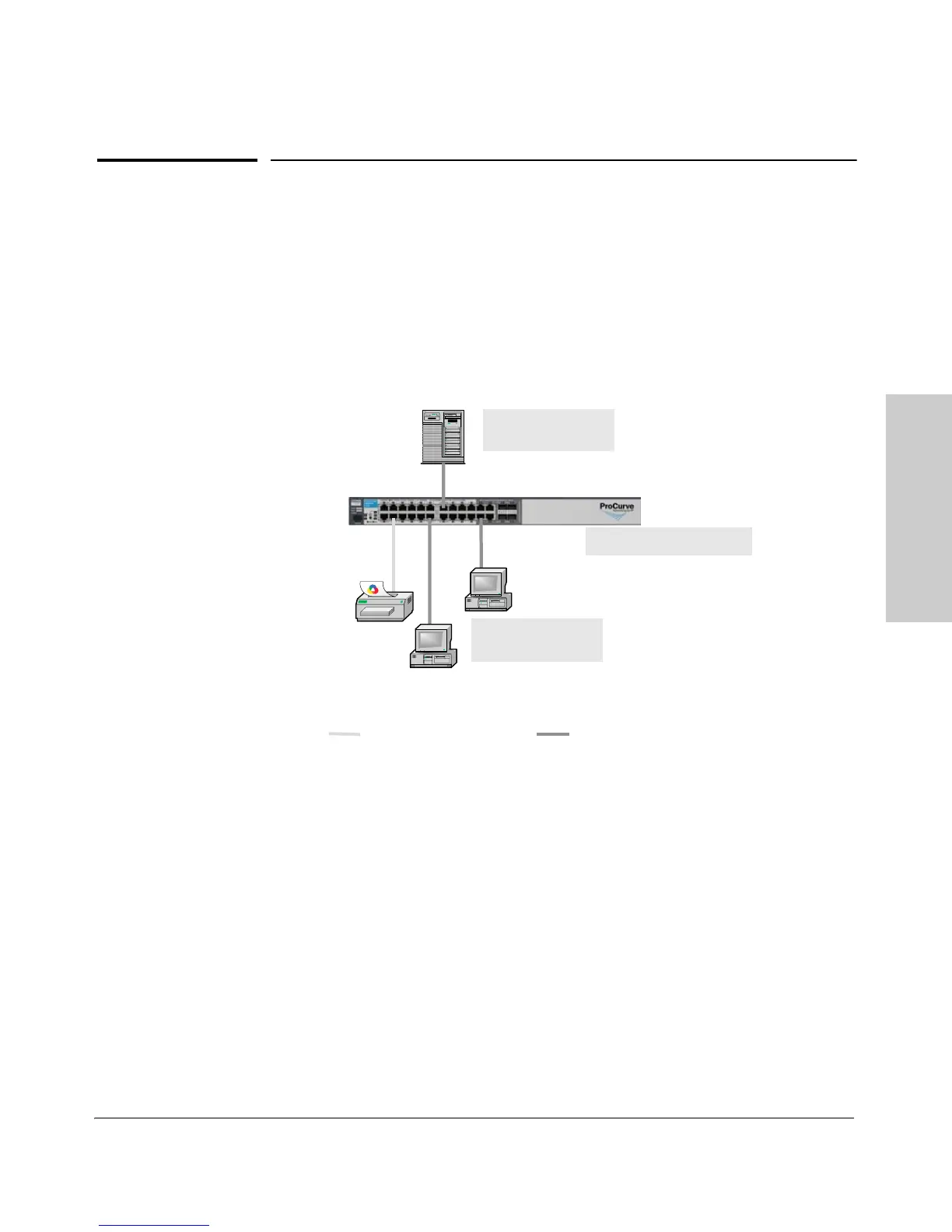

Figure 2-13. Basic desktop configuration
The Switch is designed to be used primarily as a desktop switch to which end
nodes, printers and other peripherals, and servers are directly connected, as
shown in the above illustration. Notice that the end node devices are
connected to the switch by “straight-through” or “crossover” twisted-pair
cables. Either cable type can be used because of the “Auto-MDIX” features on
the Switch.
LEGEND: GigabitEthernetcableF ast E thernet cable
PCs, local servers,
and peripherals
Server, with Gigabit
Ethernet NIC
ProCurve Switch 2510G-24
