Installing the Switch
Sample Network Topologies
Installing the Switch
Connecting to a Backbone Switch

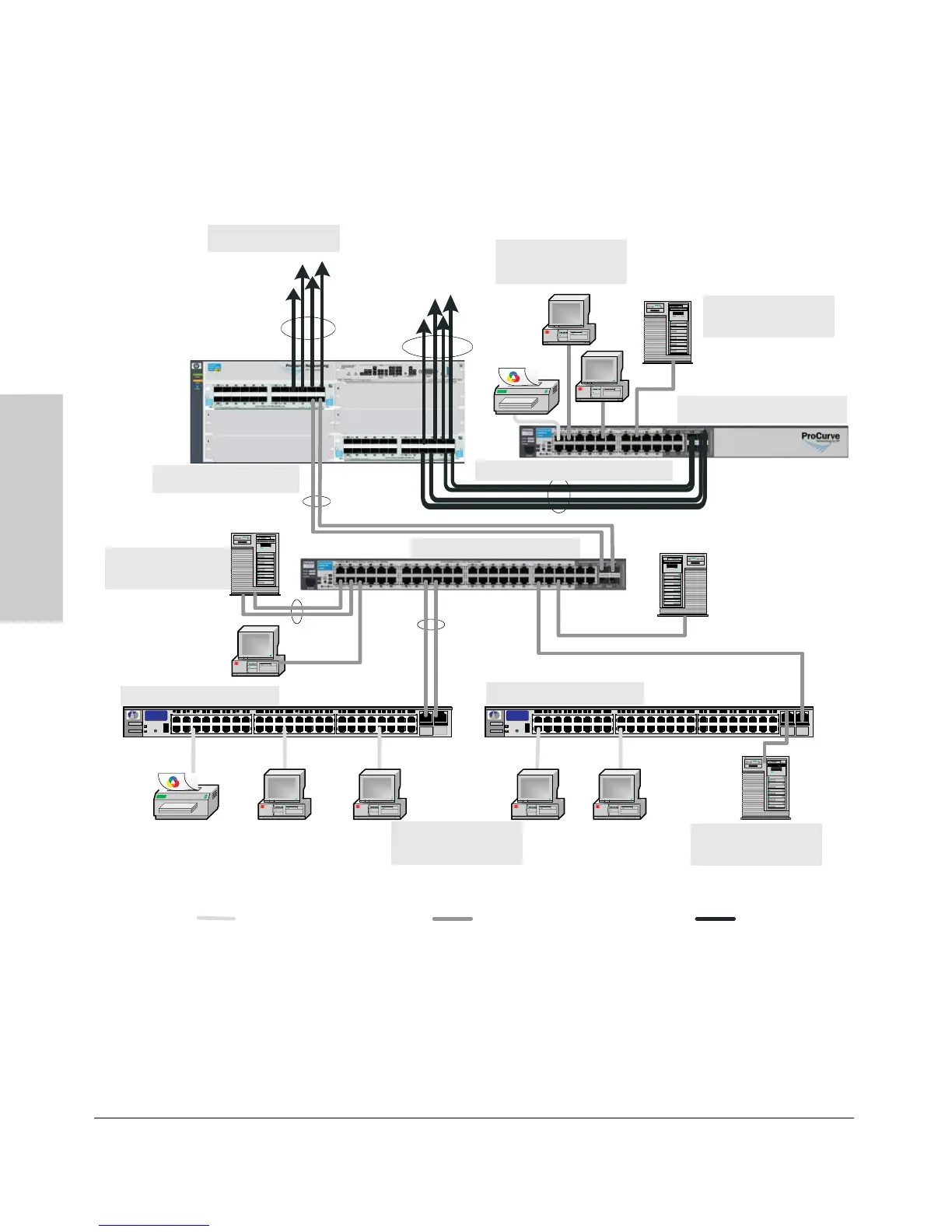

Figure 2-15. Networking to a gigabit ethernet backbone
A
F
hp procurve
switch 2650
Power
Fault
J4 899A
Act
FDx
Max
hp procurve
switch 2650
Power
Fault
J4899A
Act
FDx
Max
L E GE ND: Gigabit E thernet cable F iber cabl
e
Fast Ethernet cable
PCs, local servers,
and peripherals
Server, with Gigabit
Ethernet NIC
ProCurve Switch 2510G-24
Fast Ethernet Switch
ProCurve Switch 2510G-48
Server, with Gigabit
Ethernet NIC
Fast Ethernet Switch
Server, with Gigabit
Ethernet NIC
PCs, local servers,
and peripherals
To IT or Data Center
ProCurve Switch 5406zl
Gigabit link (use fiber if over 100 meters

HP ProCurve 2510G Series Specifications

General

Switching Capacity	48 Gbps
Forwarding Rate	35.7 Mpps
Manageable	Yes
Storage Temperature	-40°C to 70°C
Ports	24 x 10/100/1000 ports
Memory	128 MB
Jumbo Frame Support	Yes
Layer	Layer 2
Features	VLAN, QoS, ACLs, IGMP snooping
Management	Web interface, CLI, SNMP
Security Features	RADIUS, TACACS+
Power Supply	Internal power supply
Operating Temperature	0°C to 45°C
Power over Ethernet (PoE)	Optional (PoE models available)
