Installing the Switch
Installation Procedures
Installing the Switch

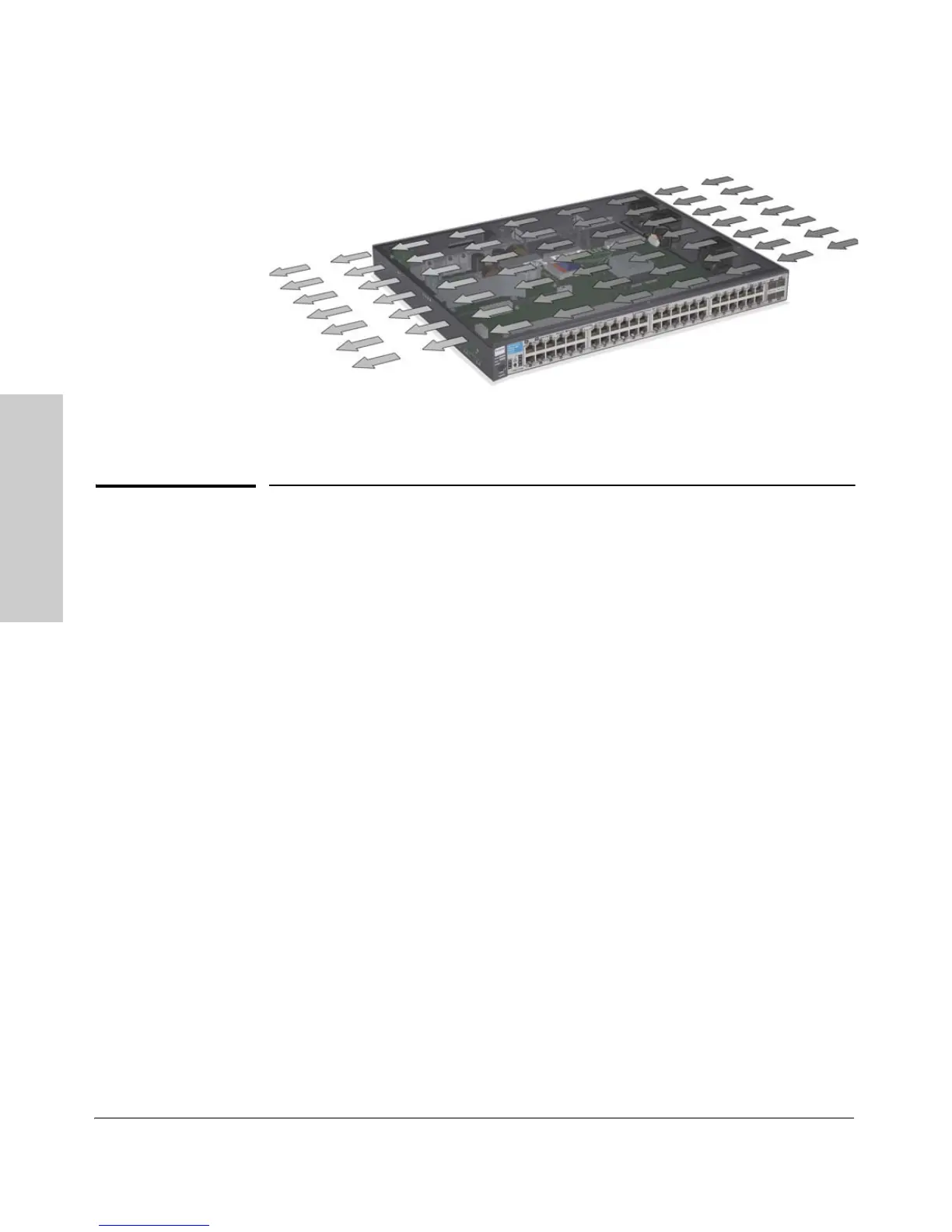

Figure 2-1. Air flow direction of the 2910al switch
Installation Procedures
Summary
1. Prepare the installation site (page 2-5). Ensure the physical environ-
ment is properly prepared, including having the correct network cabling
ready to connect to the switch and having an appropriate location for the
switch. See page 2-3 for some installation precautions.
2. Verify the switch passes self test (page 2-11). Plug the switch into a
power source and observe that the LEDs on the switch’s front panel
indicate correct switch operation. When self test is complete, unplug the
switch.
3. (Optional) Install a module (page 2-8).
4. Mount the switch (page 2-11). The Switch can be mounted in a 19-inch
telco rack, in an equipment cabinet, or on a horizontal surface.
5. (Optional) Install a transceiver (page 2-14). If you have installed a
module, you can now install one or two transceivers.
6. (Optional) Install mini-GBICs and SFPs (page 2-16). The switch has
four slots for installing mini-GBICs. Depending on where you will mount
the switch, it may be easier to install the mini-GBICs first. Mini-GBICs can
be installed or removed while the switch is powered on.
7. Connect power to the switch (page 2-18). Once the switch is mounted,
plug it into the nearby main power source.
8. (Optional) Connect an external power supply page 2-18

HP ProCurve 2910al Series Specifications

General

Model	HP ProCurve 2910al Series
Switching Capacity	128 Gbps
Forwarding Rate	95.2 Mpps
Layer	Layer 3
Form Factor	Rack-mountable, 1U
Layer 3 Routing	Yes
Operating Humidity	15% to 95% non-condensing
Ports	24 or 48 10/100/1000 ports
Uplink Ports	4 SFP (mini-GBIC) slots
Power over Ethernet (PoE)	Available on PoE+ models (2910al-24G-PoE+ and 2910al-48G-PoE+)
Management	Web, SNMP, CLI
MAC Address Table Size	16, 000 entries
Routing Protocol	RIP
Power Supply	Internal power supply (AC)
Jumbo Frame Support	Yes (up to 9220 bytes)
Weight	4.9 kg
Power Consumption	Varies by model (typically 30-60W)
Operating Temperature	0°C to 45°C
VLAN Support	Yes (up to 512 VLANs)
