HP ProCurve 2910al Series User Manual

C-8
Cabling and Technology Information
Cabling and Technology
Information
Crossover Twisted-Pair Cable for
10 Mbps or 100 Mbps Network Connection
The HP Auto-MDIX operation of the 10/100 ports on the switch also allows
you to use crossover cables for all network connections, to PCs, servers or
other end nodes, or to hubs or other switches.
If any of these ports are given a fixed configuration, for example 100 Mbps/
Full Duplex, the ports operate as MDI-X ports, and crossover cables must be
then used for connections to hubs or switches or other MDI-X network
devices.

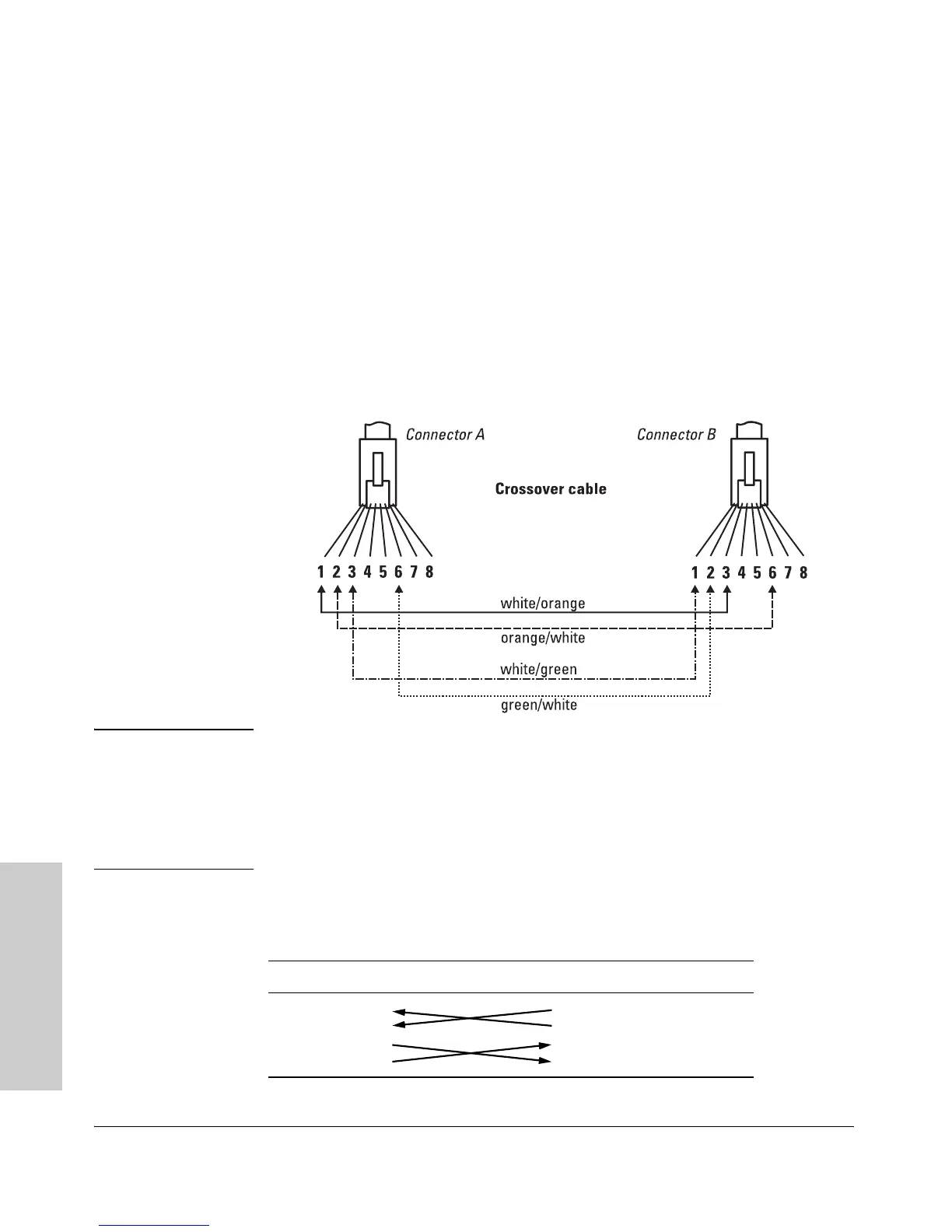

Cable Diagram
Note Pins 1 and 2 on connector “A” must be wired as a twisted pair to pins 3 and 6
on connector “B”.
Pins 3 and 6 on connector “A” must be wired as a twisted pair to pins 1 and 2
on connector “B”.
Pins 4, 5, 7, and 8 are not used in this application, although they may be wired
in the cable.
.
Pin Assignments
Switch End (MDI-X) Hub or Switch Port, or Other
MDI-X Port End
Signal Pins Pins Signal
receive +
receive -
transmit +
transmit -
1
2
3
6
6
3
2
1
transmit -
transmit +
receive -
receive +

HP ProCurve 2910al Series Specifications

General

Model	HP ProCurve 2910al Series
Switching Capacity	128 Gbps
Forwarding Rate	95.2 Mpps
Layer	Layer 3
Form Factor	Rack-mountable, 1U
Layer 3 Routing	Yes
Operating Humidity	15% to 95% non-condensing
Ports	24 or 48 10/100/1000 ports
Uplink Ports	4 SFP (mini-GBIC) slots
Power over Ethernet (PoE)	Available on PoE+ models (2910al-24G-PoE+ and 2910al-48G-PoE+)
Management	Web, SNMP, CLI
MAC Address Table Size	16, 000 entries
Routing Protocol	RIP
Power Supply	Internal power supply (AC)
Jumbo Frame Support	Yes (up to 9220 bytes)
Weight	4.9 kg
Power Consumption	Varies by model (typically 30-60W)
Operating Temperature	0°C to 45°C
VLAN Support	Yes (up to 512 VLANs)
