HP ProCurve 2910al Series User Manual

2-26
Installing the Switch
Installation Procedures
Installing the Switch

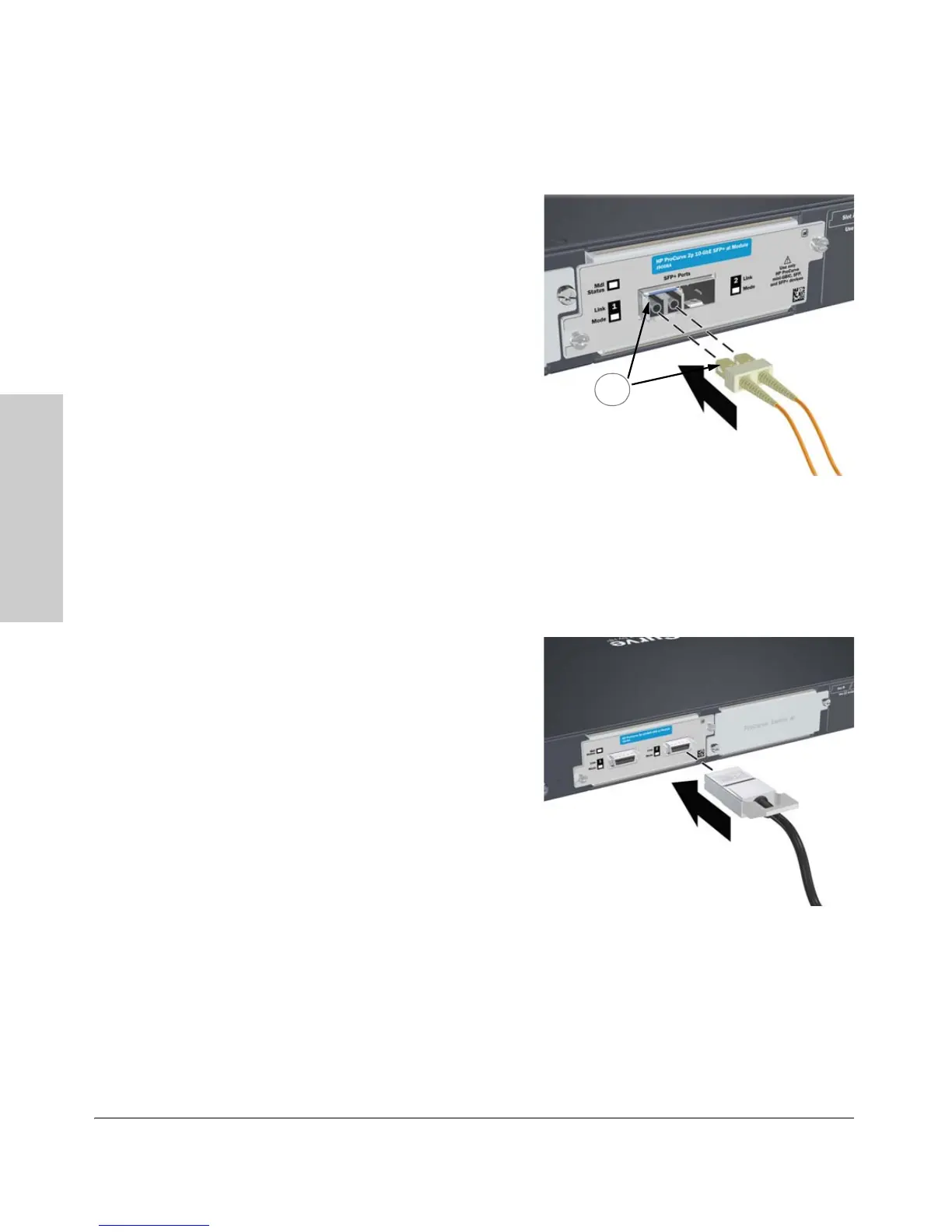

Connecting a fiber cable
To conne ct:
1. Remove the dust covers from
the cable connectors and the
port.
2. Aligning the notches on the
cable connectors with the slots
of the port, press the cable
connector into the port until it
snaps into place.
If the Link LED does not go on
when the network cable is
connected to the port, see
“Diagnosing with the LEDs” on page 4-4, in chapter 5, “Troubleshooting”.
To disconnect:
Pull the cable connector straight out.
Connecting a copper cable
To conne ct:
1. Push the copper cable
connector into the copper port.
Ensure the locking device locks
the cable connector into place.
To disconnect:
Pull the cable connector straight
out.
When a network cable from an
active network device is connected
to the port, the port LED for that
port should go on. If the port LED
does not go on when the network cable is connected to the port, see
“Diagnosing with the LEDs” on page 4-4 in chapter 5, “Troubleshooting”.
2

HP ProCurve 2910al Series Specifications

General

Model	HP ProCurve 2910al Series
Switching Capacity	128 Gbps
Forwarding Rate	95.2 Mpps
Layer	Layer 3
Form Factor	Rack-mountable, 1U
Layer 3 Routing	Yes
Operating Humidity	15% to 95% non-condensing
Ports	24 or 48 10/100/1000 ports
Uplink Ports	4 SFP (mini-GBIC) slots
Power over Ethernet (PoE)	Available on PoE+ models (2910al-24G-PoE+ and 2910al-48G-PoE+)
Management	Web, SNMP, CLI
MAC Address Table Size	16, 000 entries
Routing Protocol	RIP
Power Supply	Internal power supply (AC)
Jumbo Frame Support	Yes (up to 9220 bytes)
Weight	4.9 kg
Power Consumption	Varies by model (typically 30-60W)
Operating Temperature	0°C to 45°C
VLAN Support	Yes (up to 512 VLANs)
