HP ProCurve 2910al Series User Manual

3-2
Getting Started With Switch Configuration
Using the Console Setup Screen
Getting Started With Switch
Configuration
Note By default, the switch is configured to acquire an IP address configuration
from a DHCP or Bootp server. To use DHCP/Bootp instead of the manual
method described in this chapter, see “DHCP/Bootp Operation” in the
Management and Configuration Guide, which is on the ProCurve Website at
www.procurve.com/manuals.
Using the Console Setup Screen
The quickest and easiest way to minimally configure the switch for manage-
ment and password protection in your network is to use a direct console
connection to the switch, start a console session, and access the Switch Setup
screen.
1. Using the method described in the preceding section, connect a terminal
device to the switch and display the switch console command (CLI)
prompt (the default display).
The CLI prompt appears displaying the switch model number:
ProCurve Switch 2910al-48G#

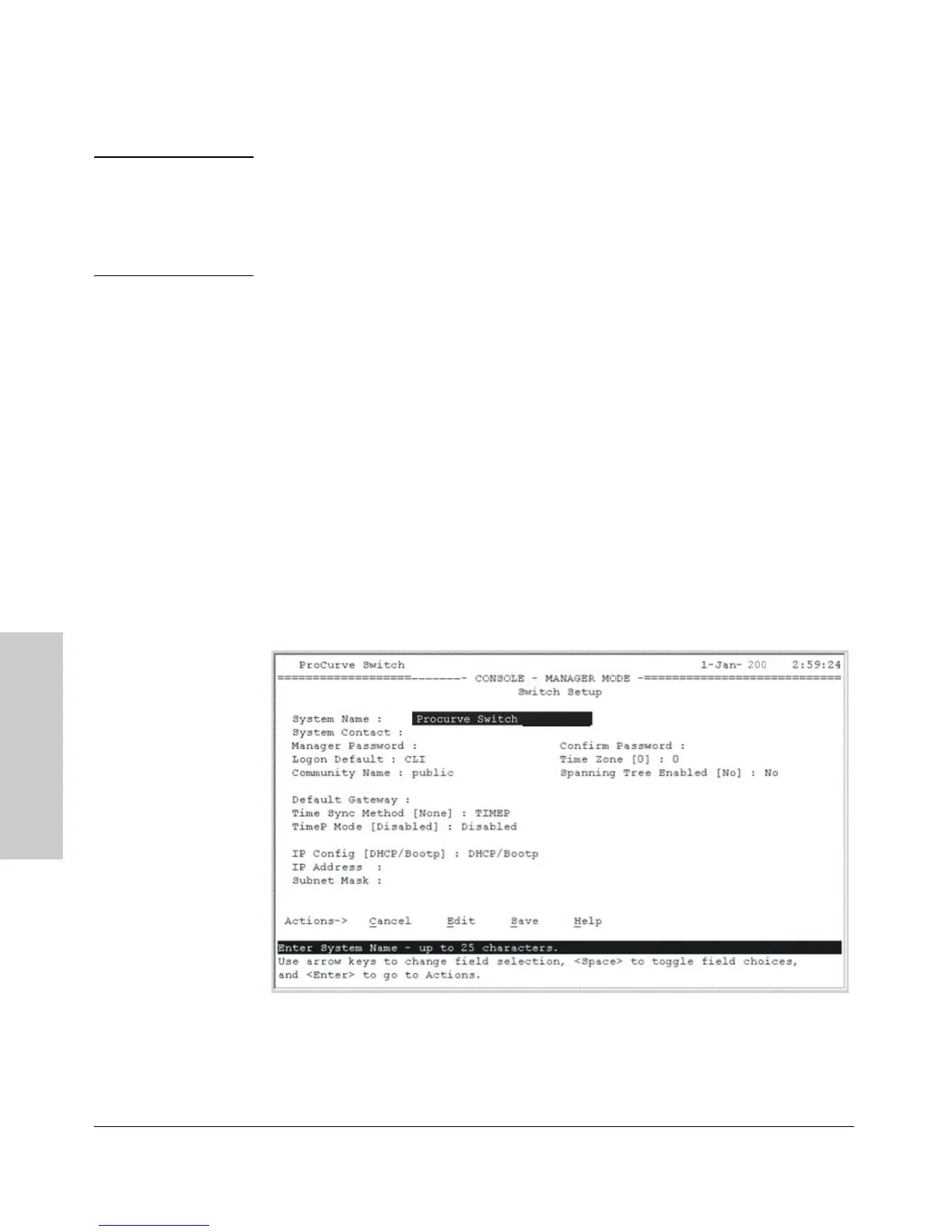

2. At the prompt, enter the setup command to display the Switch Setup
screen. The following illustration shows the Setup screen with the default
settings.
3. Use the
[Tab] key to select the Manager Password field and enter a manager
password of up to 16 characters.
2910al-48G
2910al-48G
5
8

HP ProCurve 2910al Series Specifications

General

Model	HP ProCurve 2910al Series
Switching Capacity	128 Gbps
Forwarding Rate	95.2 Mpps
Layer	Layer 3
Form Factor	Rack-mountable, 1U
Layer 3 Routing	Yes
Operating Humidity	15% to 95% non-condensing
Ports	24 or 48 10/100/1000 ports
Uplink Ports	4 SFP (mini-GBIC) slots
Power over Ethernet (PoE)	Available on PoE+ models (2910al-24G-PoE+ and 2910al-48G-PoE+)
Management	Web, SNMP, CLI
MAC Address Table Size	16, 000 entries
Routing Protocol	RIP
Power Supply	Internal power supply (AC)
Jumbo Frame Support	Yes (up to 9220 bytes)
Weight	4.9 kg
Power Consumption	Varies by model (typically 30-60W)
Operating Temperature	0°C to 45°C
VLAN Support	Yes (up to 512 VLANs)
