HP ProCurve 2910al Series

2-12
Installing the Switch
Installation Procedures
Installing the Switch

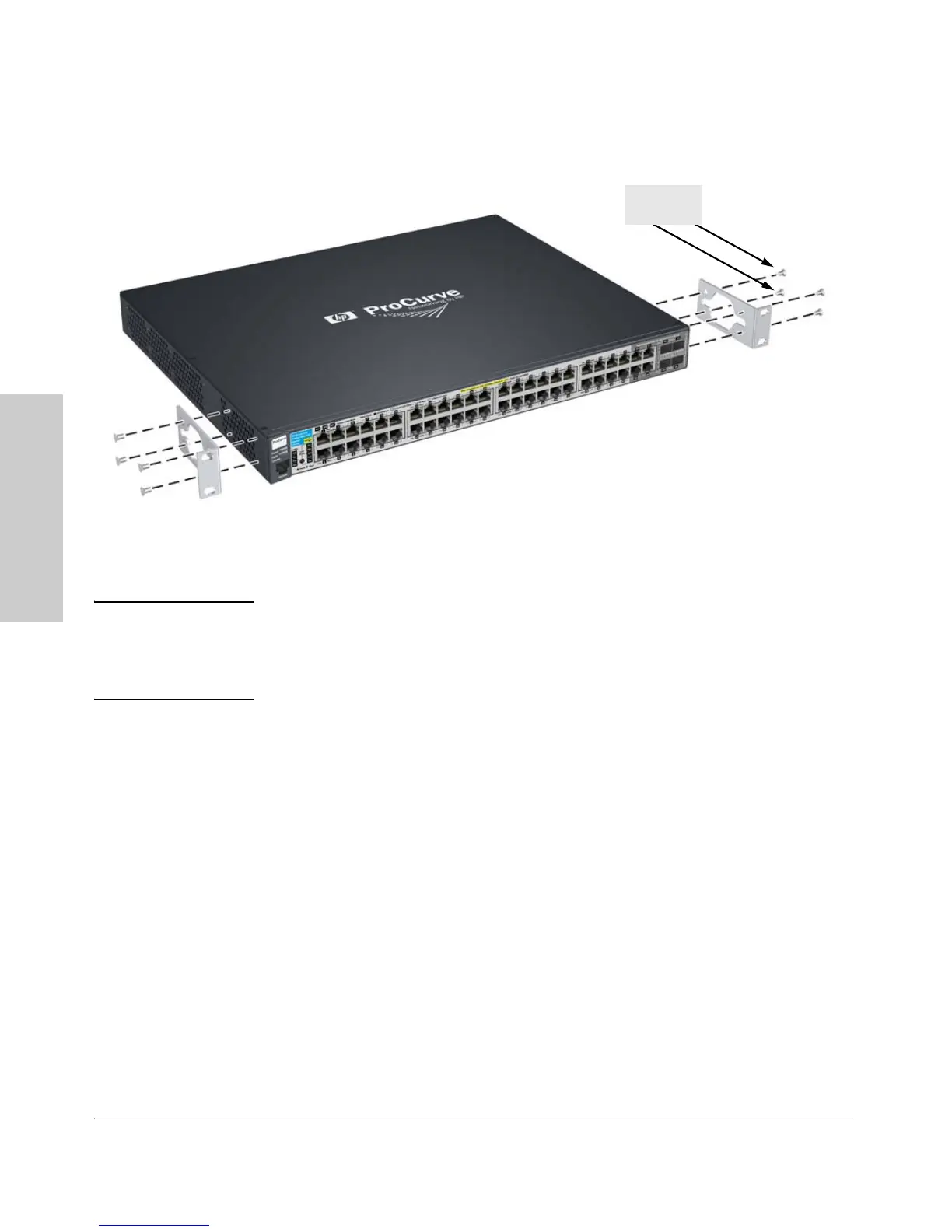

Figure 2-9. Attaching mounting brackets
Note The mounting brackets have multiple mounting holes and can be rotated
allowing for a wide variety of mounting options. These include mounting the
switch so its front face is flush with the face of the rack, or mounting it in a
more balanced position.
8 mm
M4 screws
