Installing the Switch
Installation Procedures
Installing the Switch

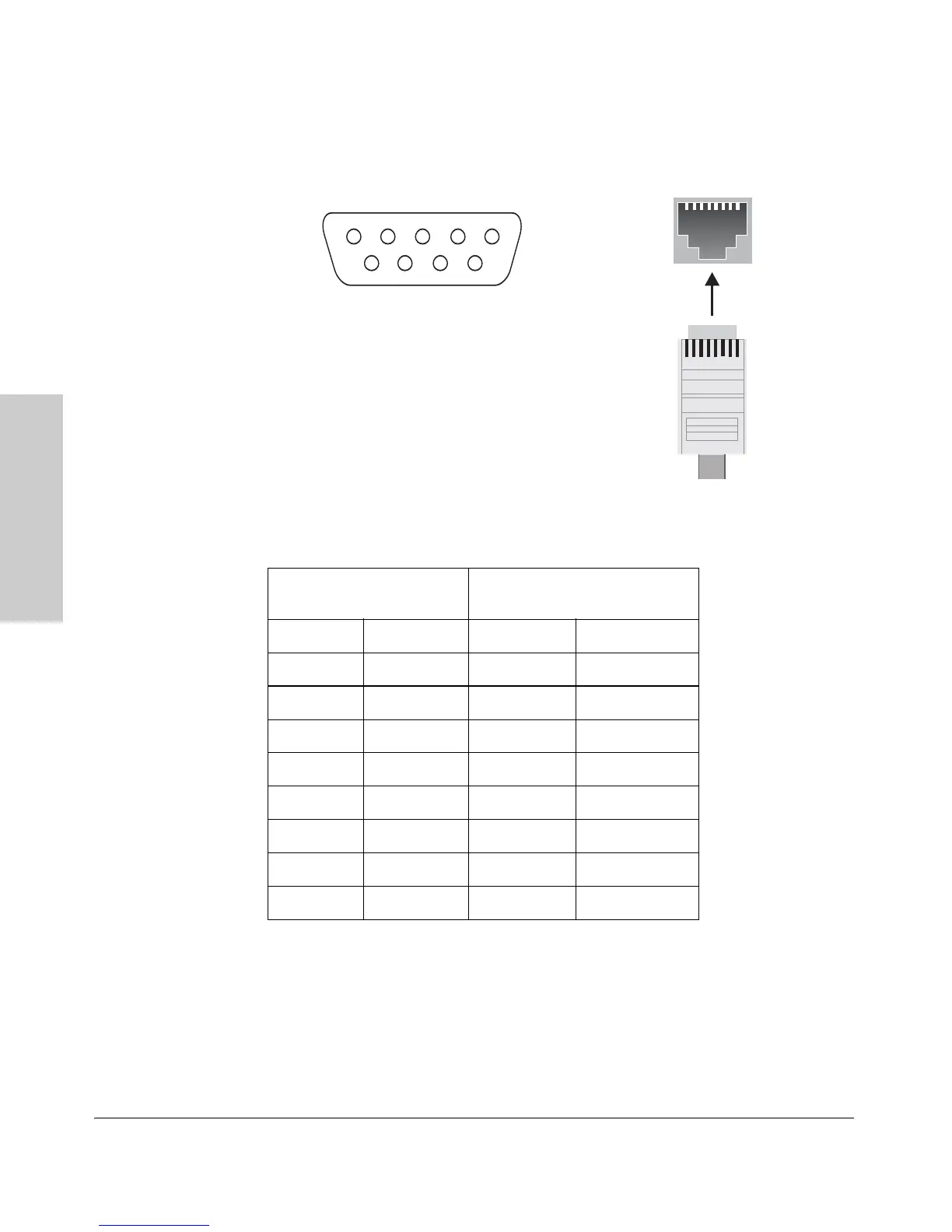

Figure 2-18. RJ-45 to DB-9 pinouts
Table 2-2. Mapping of RJ-45 to DB-9
RJ-45 (Signal reference from
Chassis
DB-9 (Signal reference from PC)
RTS18CTS
TX_Debug 2 6 DSR
TXD 3 2 RXD
GND 4 5 GND
DCD 5 1 DCD
RXD 6 3 TXD
RX_Debug 7 4 DTR
CTS87RTS
9RI
