Sample Network Topologies
Installing the Switch

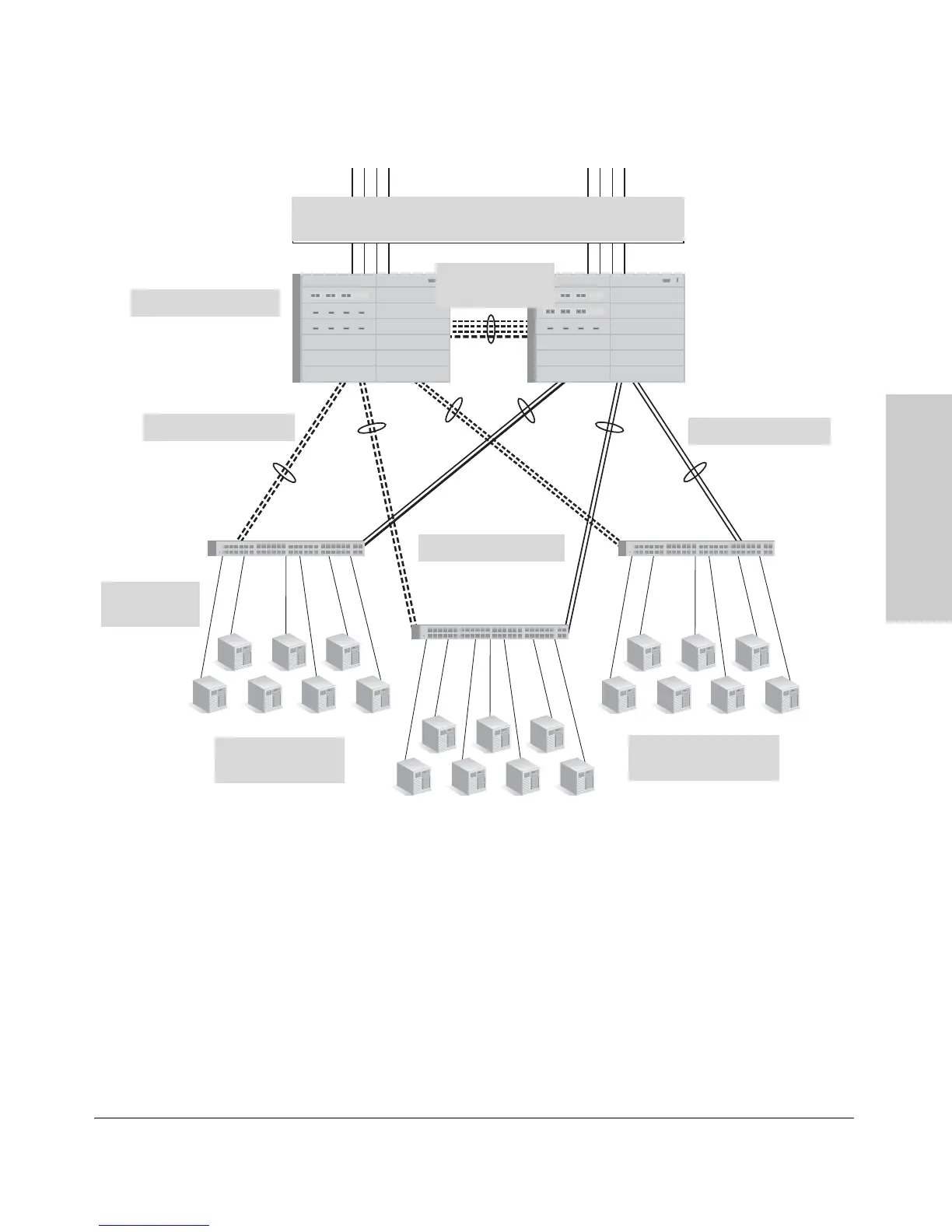

Figure 2-21. Example, server farm deployment
Servers with Gigabit
Ethernet NIC
Servers with Gigabit
Ethernet NIC
ProCurve Switch 5412zl
High speed internet uplinks
10 Gigabit copper
cables
10 Gigabit fiber cable
Gigabit copper
cable
ProCurve Switch 2910al
10 Gigabit copper cables
Gigabit copper
cable
