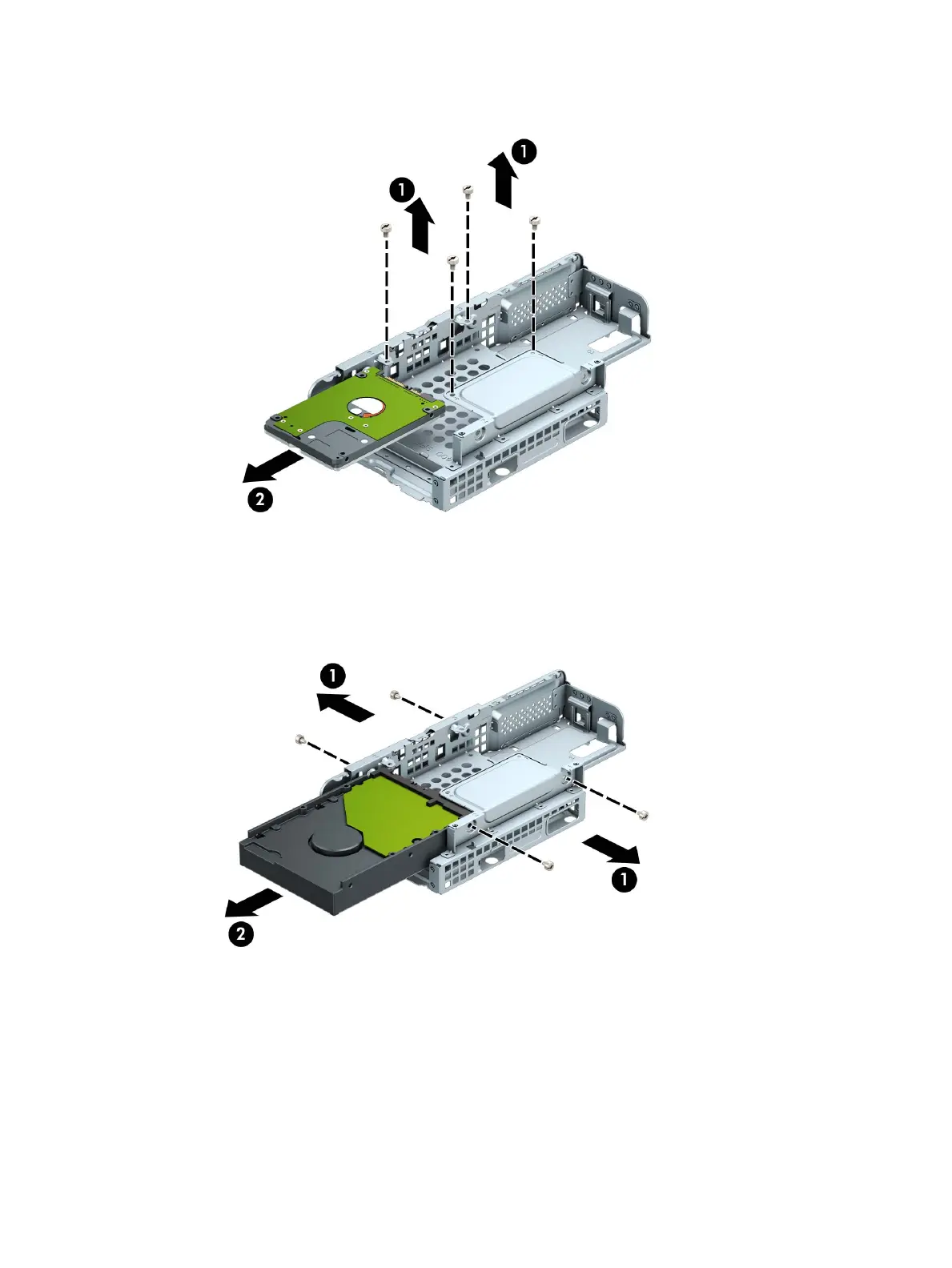

5. Remove the top hard drive (2)from the hard drive cage.
6. If it is necessary to remove the bottom hard drive from the drive cage, remove the four Torx-15 M3.0×9.0
screws (2)that secure the bottom hard drive to the cage.
7. Remove the bottom hard drive from the hard cage (3).
Reverse this procedure to install the hard drives.
Hard drives 37
